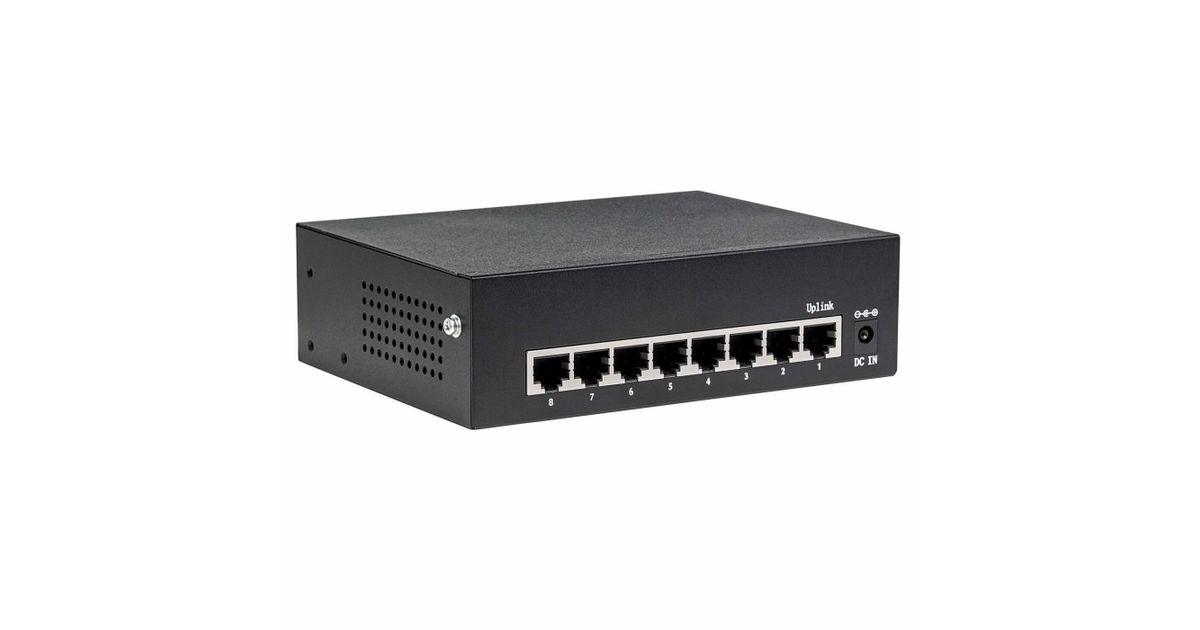

For illustrative purpose only
Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop (Euro 2-pin plug)
Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop (Euro 2-pin plug), Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03199781 |
| EAN | 00766623561204 |
| Manufacturer part number | NUITLSOL0561204 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Control and Provisioning of Wireless Access Points (CAPWAP) | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Auto MDI/MDI-X | Y |
| Auto-sensing | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC Class B, CE, RoHS |
| Power protection features | Over voltage, Overload, Short circuit |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1.5 MB |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 67.3 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 155 mm |
| Depth | 118 mm |
| Height | 46 mm |
| Weight | 930 g |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Rack mount kit | Y |
Product Description
Save installation time and money with PoE.
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
Power over Ethernet 802.3at
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.
Private VLAN
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch features port isolation, also referred to as "Private VLAN". It isolates all ports from each other and only allows access to the uplink port. This is useful, for example, if a private VLAN is a hotel where each room or apartment has a network port for Internet access. All ports can all access the Internet, but they cannot access each other. The setup is easy: Activate the VLAN switch on the front panel of the switch, and the VLAN is enabled. That is secure port isolation with the flip of a switch!
Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy-efficient IEEE 802.3az technology, the Intellinet Network Solutions 8-Port Gigabit PoE+ Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions 8-Port Gigabit PoE+ Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserve energy and save money.
* Total PoE budget for this switch is 60 watts. Per-port average power distribution is 7.5 watts; maximum per-port power usage cannot exceed 30 watts.
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
Power over Ethernet 802.3at
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.
Private VLAN
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch features port isolation, also referred to as "Private VLAN". It isolates all ports from each other and only allows access to the uplink port. This is useful, for example, if a private VLAN is a hotel where each room or apartment has a network port for Internet access. All ports can all access the Internet, but they cannot access each other. The setup is easy: Activate the VLAN switch on the front panel of the switch, and the VLAN is enabled. That is secure port isolation with the flip of a switch!
Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy-efficient IEEE 802.3az technology, the Intellinet Network Solutions 8-Port Gigabit PoE+ Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the Intellinet Network Solutions 8-Port Gigabit PoE+ Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserve energy and save money.
* Total PoE budget for this switch is 60 watts. Per-port average power distribution is 7.5 watts; maximum per-port power usage cannot exceed 30 watts.
