Intellinet 8-Port Gigabit Ethernet Switch, Metal (Euro 2-pin plug)
Intellinet 8-Port Gigabit Ethernet Switch, Metal (Euro 2-pin plug), Gigabit Ethernet (10/100/1000), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03199790 |
| EAN | 00766623530347 |
| Manufacturer part number | 530347 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC Class B, CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Y |
| Data transmission | |
|---|---|
| Store-and-forward | Y |
| Design | |
|---|---|
| Stackable | N |
| Product colour | Black |
| Housing material | Metal |
| Power supply | |
|---|---|

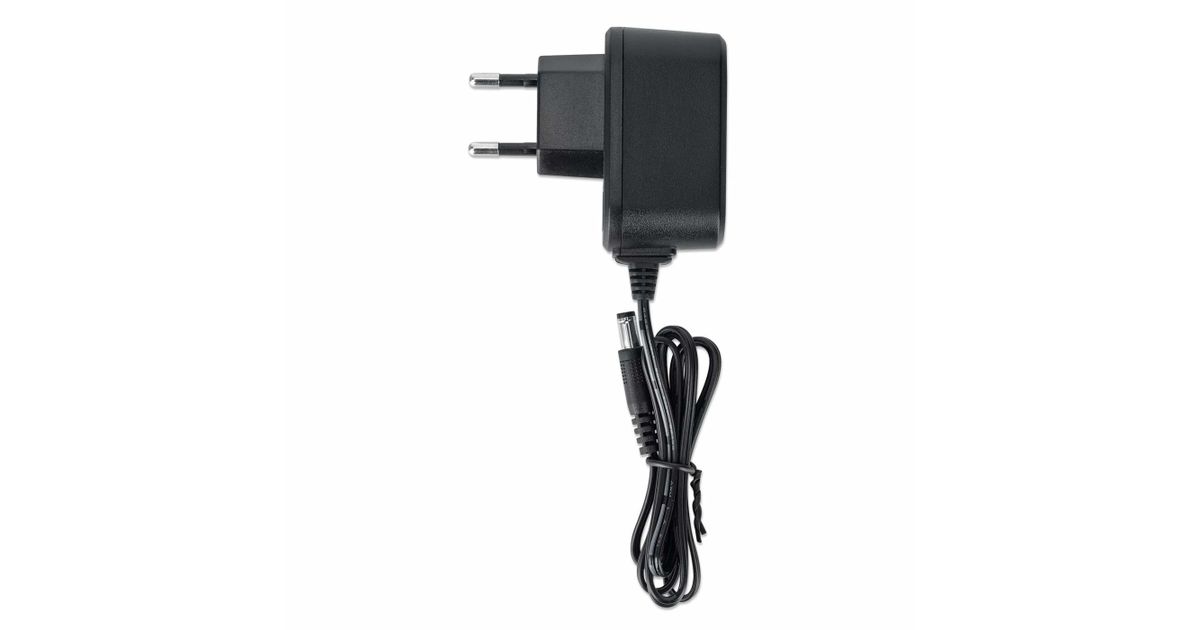

| Power supply included | Y |
| Power | |
|---|---|
| DC input voltage | 5 V |
| Power consumption (max) | 2.75 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 78 mm |
| Height | 28 mm |
| Weight | 340 g |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
Easy to install, with auto-learning capabilities. _x000D_
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.
