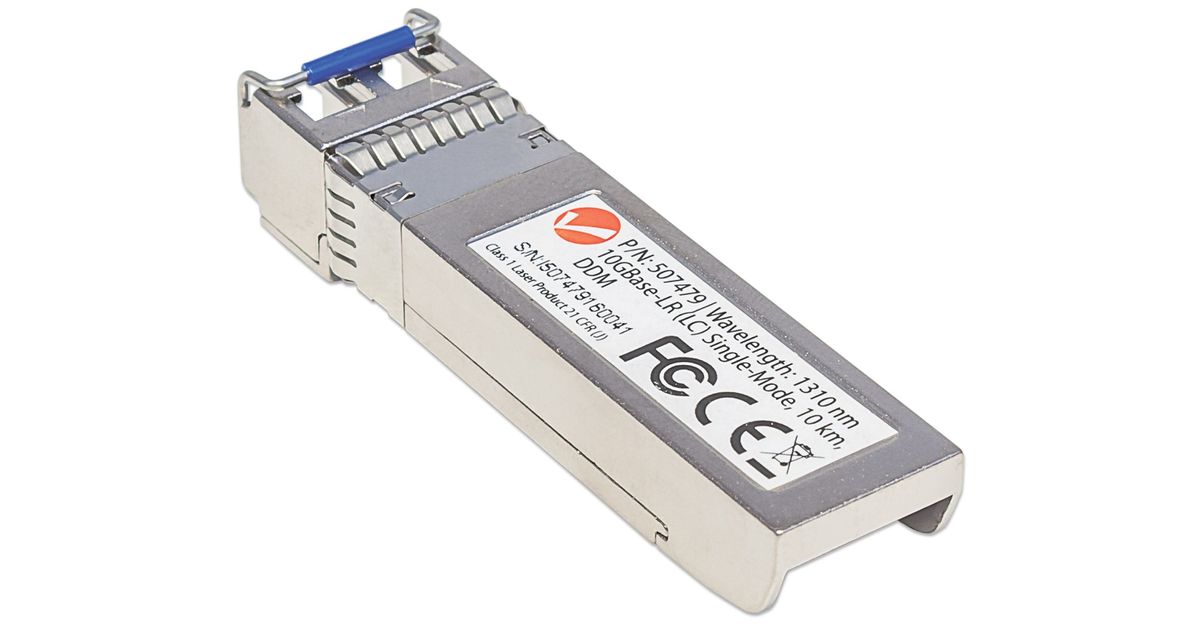

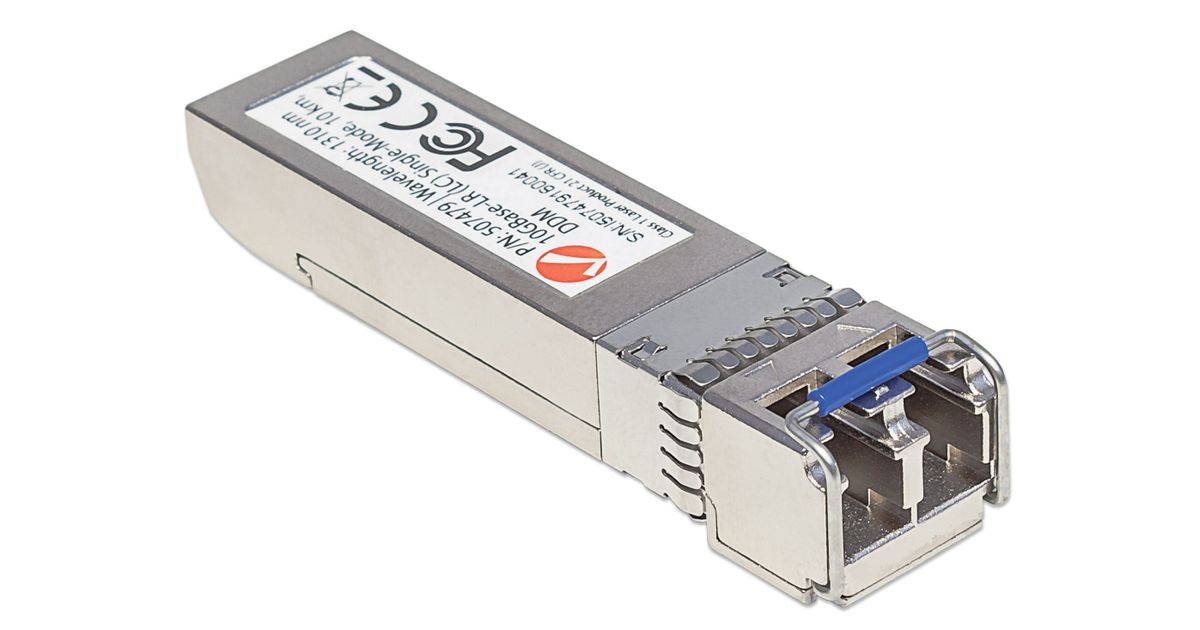

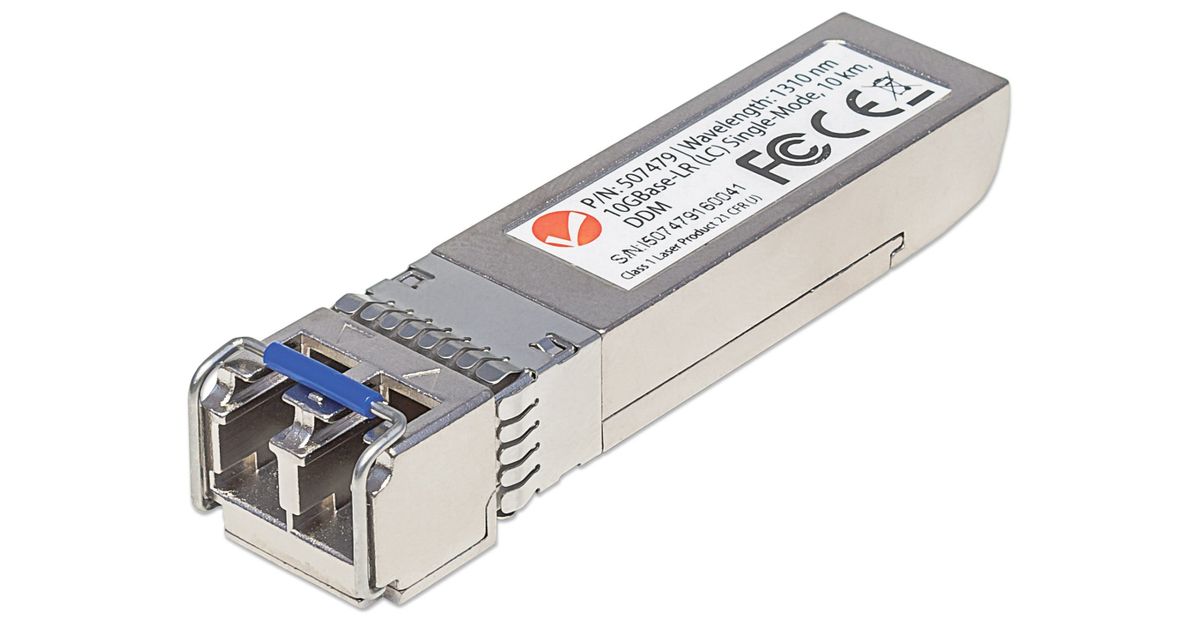

Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to Cisco SFP+10GB-LR, Fibre, Three Year Warranty
Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-LR (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to Cisco SFP+10GB-LR, Fibre, Three Year Warranty, Fiber optic, 11100 Mbit/s, SFP+, LC, 9/125 µm, LR
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03199804 |
| EAN | 00766623507479 |
| Manufacturer part number | 507479 |
| Category | Switches & accessories |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Y |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Tx power (min) | -5 dBmW |
| Link budget | 8 dB |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Hot-Plug support | Y |
| Features | |
|---|---|
| Maximum data transfer rate | 11100 Mbit/s |
| Harmonized System (HS) code | 85369010 |
| Certification | FCC Class B, CE Mark, IEC-60825 |
| Ports & interfaces | |
|---|---|
| Interface type | SFP+ |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Wavelength | 1310 nm |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ae, IEEE 802.3z |
| Design | |
|---|---|
| Product colour | Silver |
| Power | |
|---|---|
| Maximum voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
10GBase-LR Gigabit Fibre SFP+ Optical Transceiver Module
The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) Transceivers provides customers with a combination of high-performance and affordability. These SFP+ transceiver modules come in a metal housing that reduces electromagnetic interference and increases their durability.
10 Gigabit Connectivity
Intellinet Network Solutions 10GBase-LR Fibre SFP+ Optical Transceiver Module, model 507479, is the right choice when it comes to connecting two buildings at 10 GbE speeds with single mode fibre. That's a 10 Gbps connection up to a distance of 10 km (or 6.2 miles).
Small Size for High-Density Fibre Connections
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room.
Compatibility
Compatibility in your network is everything, and the Intellinet Network Solutions SFP+ Transceiver Module (model 507479) delivers. Use it with any Intellinet Network Solutions SFP+ equipped network switch or any other MSA compliant SFP+ enabled switch. And since the Intellinet Network Solutions SFP+ transceiver module is set to broadcast the vendor pn SFP-10G-LR, compatibility to your Cisco gear is provided.
Hot-Pluggable
The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507479) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
Digital Diagnostics Monitoring (DDM)
The Intellinet Network Solutions 10 Gigabit Fibre SFP+ Optical Transceiver Module (model 507479) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
