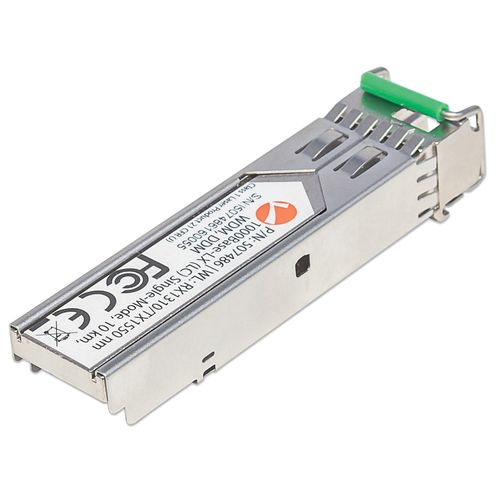

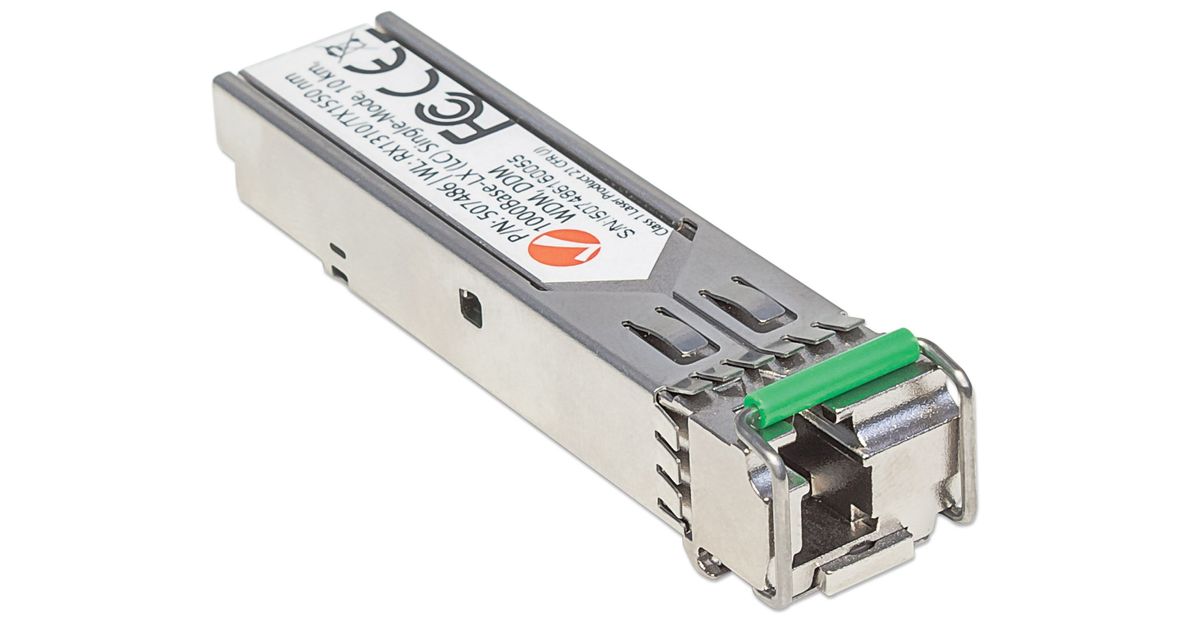

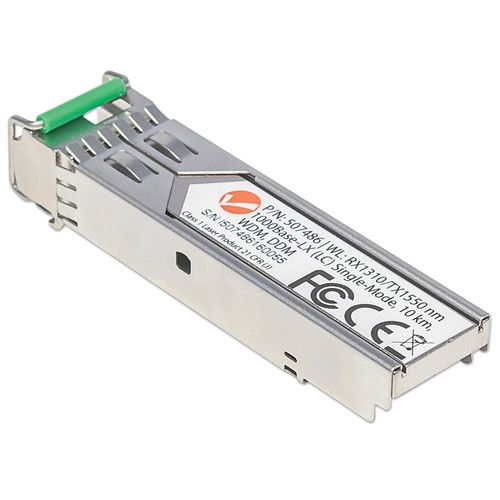

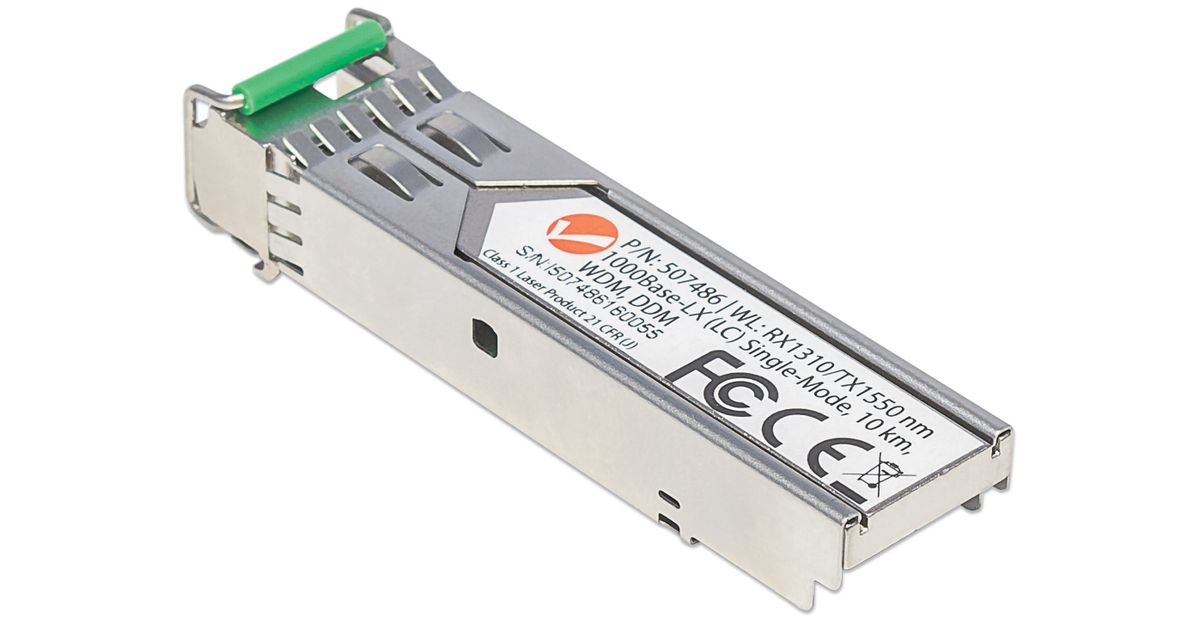

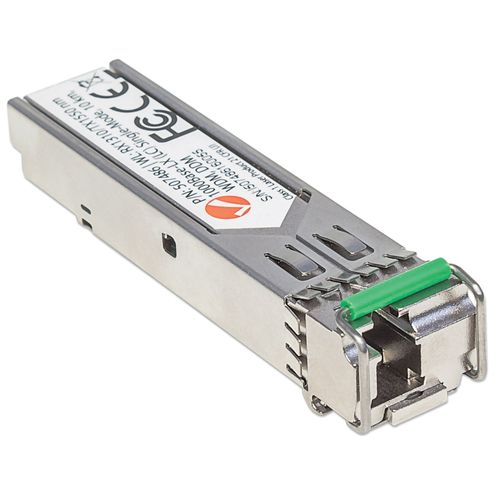

Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, WDM (Rx1310/Tx1550), MSA Compliant, Equivalent to Cisco GLC-BX-D, Fibre, Three Year Warranty
Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, WDM (Rx1310/Tx1550), MSA Compliant, Equivalent to Cisco GLC-BX-D, Fibre, Three Year Warranty, Fiber optic, 1000 Mbit/s, SFP, LC, 9/125 µm, 10000 m
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03199808 |
| EAN | 00766623507486 |
| Manufacturer part number | 507486 |
| Category | Switches & accessories |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Y |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 16 dB |
| Duplex system | Full |
| Hot-Plug support | Y |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85369010 |
| Ports & interfaces | |
|---|---|
| Interface type | SFP |
| Fiber ports quantity | 1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Cabling technology | 1000Base-LX |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3z |
| RX sensitivity | -24 dB |
| Design | |
|---|---|
| Product colour | Metallic |
| Power | |
|---|---|
| Power consumption (typical) | 1 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Gigabit Fibre SFP Optical Transceiver Module _x000D_
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 507486) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-BX-D, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time. _x000D_
_x000D_
WDM (bi-directional wavelength division multiplexing) Technology Advantage _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver (model 507486) must be used in conjunction with item 507509.
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 507486) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-BX-D, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time. _x000D_
_x000D_
WDM (bi-directional wavelength division multiplexing) Technology Advantage _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver (model 507486) must be used in conjunction with item 507509.
