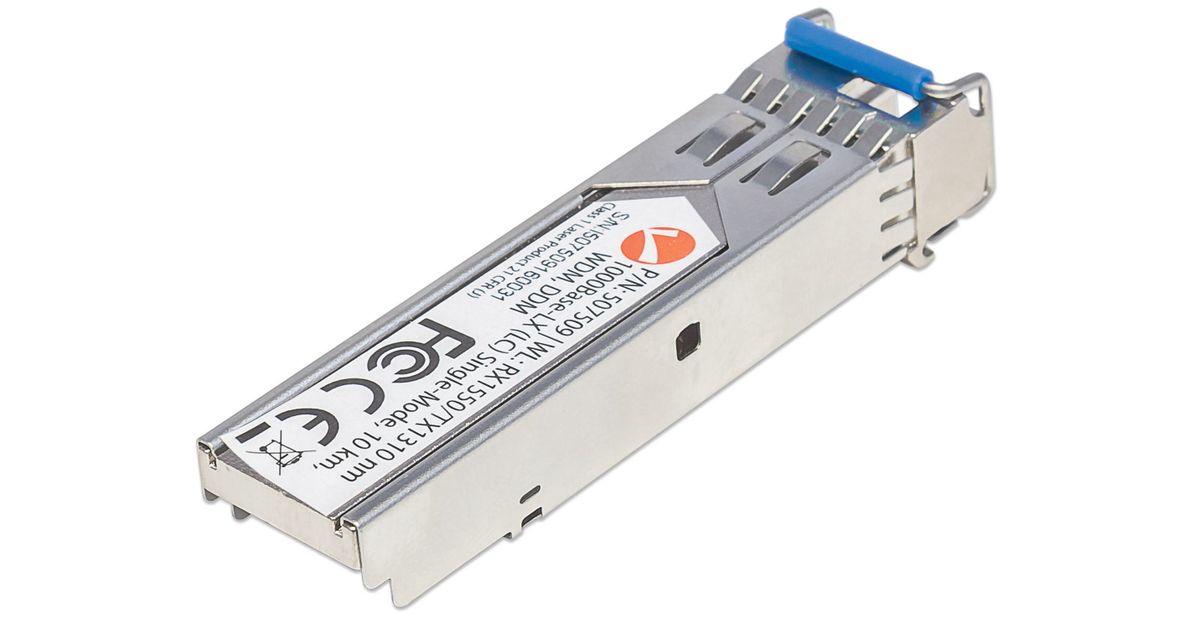

For illustrative purpose only
Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, WDM (Rx1550/Tx1310), MSA Compliant, Equivalent to Cisco GLC-BX-U, Fibre, Three Year Warranty
Intellinet Transceiver Module Optical, Gigabit Fiber WDM Bi-Directional SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, WDM (Rx1550/Tx1310), MSA Compliant, Equivalent to Cisco GLC-BX-U, Fibre, Three Year Warranty, Fiber optic, 1000 Mbit/s, SFP, LC, 9/125 µm, 10000 m
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intellinet |
| Product code | 03199809 |
| EAN | 00766623507509 |
| Manufacturer part number | 507509 |
| Category | Switches & accessories |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Y |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 16 dB |
| Duplex system | Full |
| Hot-Plug support | Y |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85369010 |
| Certification | FCC Class A, CE Mark |
| Input voltage | 3.3 V |
| Ports & interfaces | |
|---|---|
| Interface type | SFP |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3z |
| RX sensitivity | -24 dB |
| Design | |
|---|---|
| Product colour | Metallic |
| Power | |
|---|---|
| Power consumption (typical) | 1 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 37 g |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Gigabit Fibre SFP Optical Transceiver Module
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides the best combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules offer metal housing that reduces electromagnetic interference and increases durability.
Small Size for High-Density Fibre Connections
The transceiver is available in mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet or computer room.
Compatibility
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor on GLC-BX-U, compatibility to your Cisco gear is provided.
Hot-Pluggable
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
Digital Diagnostics Monitoring (DDM)
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). The DDM/DOM function will monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
WDM (bi-directional wavelength division multiplexing) Technology Advantage
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology effectively uses the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver must be used in conjunction with Intellinet Network Solutions part number 507486.
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides the best combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules offer metal housing that reduces electromagnetic interference and increases durability.
Small Size for High-Density Fibre Connections
The transceiver is available in mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet or computer room.
Compatibility
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor on GLC-BX-U, compatibility to your Cisco gear is provided.
Hot-Pluggable
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
Digital Diagnostics Monitoring (DDM)
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). The DDM/DOM function will monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
WDM (bi-directional wavelength division multiplexing) Technology Advantage
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology effectively uses the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver must be used in conjunction with Intellinet Network Solutions part number 507486.
