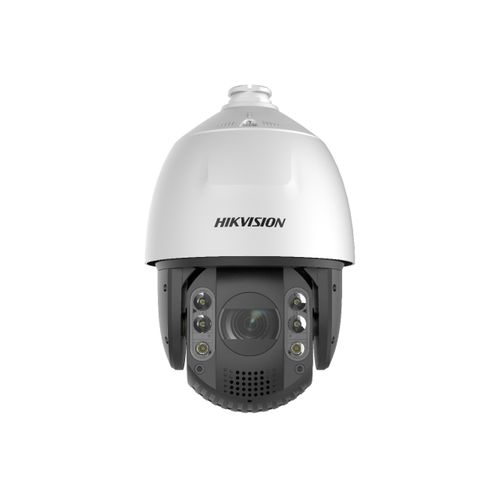

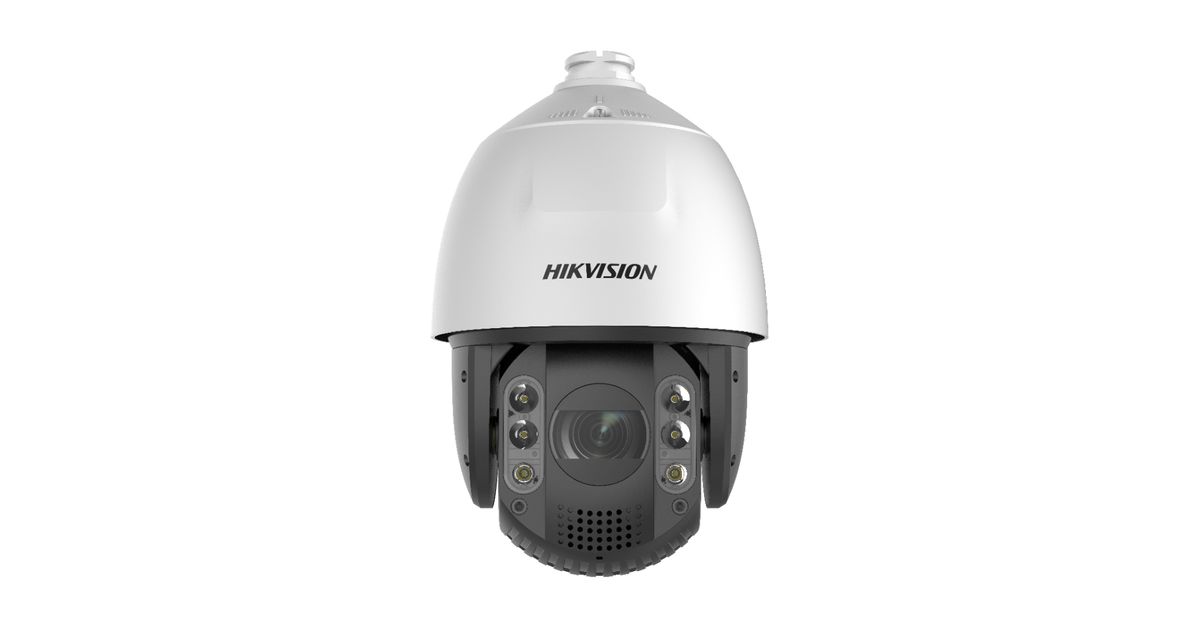

IP CAMERA HIKVISION DS-2DE7A432IW-AEB (T5)
Manufacturer:
Hikvision Digital Technology
Product Code: 327468555
EAN: 06931847127091
MPN: DS-2DE7A432IW-AEB(T5)
Product Information
| Information | |
|---|---|
| Manufacturer | Hikvision Digital Technology |
| Product code | 327468555 |
| EAN | 06931847127091 |
| Manufacturer part number | DS-2DE7A432IW-AEB(T5) |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Supported graphics resolutions | 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Infrared (IR) cut-off filter | Y |
| Number of users | 32 |
| Power source type | AC |
| Mounting | |
|---|---|
| Mounting type | Ceiling/Wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
|---|---|
| Camera pan control | Y |
| Camera tilt control | Y |
| Lens viewing angle, horizontal | 50.8 |
| Lens viewing angle, diagonal | 57.4 |
| Tilt speed | 200 |
| Pan range | 0 - 360 |
| Pan speed | 160 |
| Pan preset speed | 240 |
| Camera shutter speed | 1/1 - 1/30000 |
| Zoom capability | Y |
| Optical zoom | 32 |
| Digital zoom | 16 |
| Auto focus | Y |
| Gain control type | Auto |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 29.4 |
| Number of lenses | 1 |
| Detect distance | 2046.9 |
| Observe distance | 812.3 |
| Recognize distance | 409.4 |
| Focus | Motorized/Manual |
| Maximum aperture number | 1.5 |
| Identify distance | 204.7 |
| Focal length range | 5.9 - 188.8 |
| Ergonomics | |
|---|---|
| Tilt angle range | -15 - 90 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 200 |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 2560 x 1440 |
| Video | |
|---|---|
| Total megapixels | 4 |
| Frame rate | 30 |
| Video streaming | Y |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness,Contrast,Saturation,Sharpness |
| Back Light Compensation (BLC) | Y |
| Highlight Compensation (HLC) | Y |
| Region of Interest (ROI) encoding | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264,H.264+,H.265,H.265+,M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Sample rate | 48 |
| Voice codecs | G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Behavior analysis | Intrusion detection,Line crossing detection,Object removal detection,Region entrance detection,Region exiting detection,Unattended baggage detection |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
| Maximum memory card size | 256 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Password protection | Y |
| Video motion detection | Y |
| IP address filtering | Y |
| HTTPS encryption | Y |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Power | |
|---|---|
| AC input voltage | 24 |
| Power consumption (max) | 42 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 65 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
|---|---|
| Diameter | 220 |
| Length | 363.3 |
| Weight | 5000 |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
