For illustrative purpose only

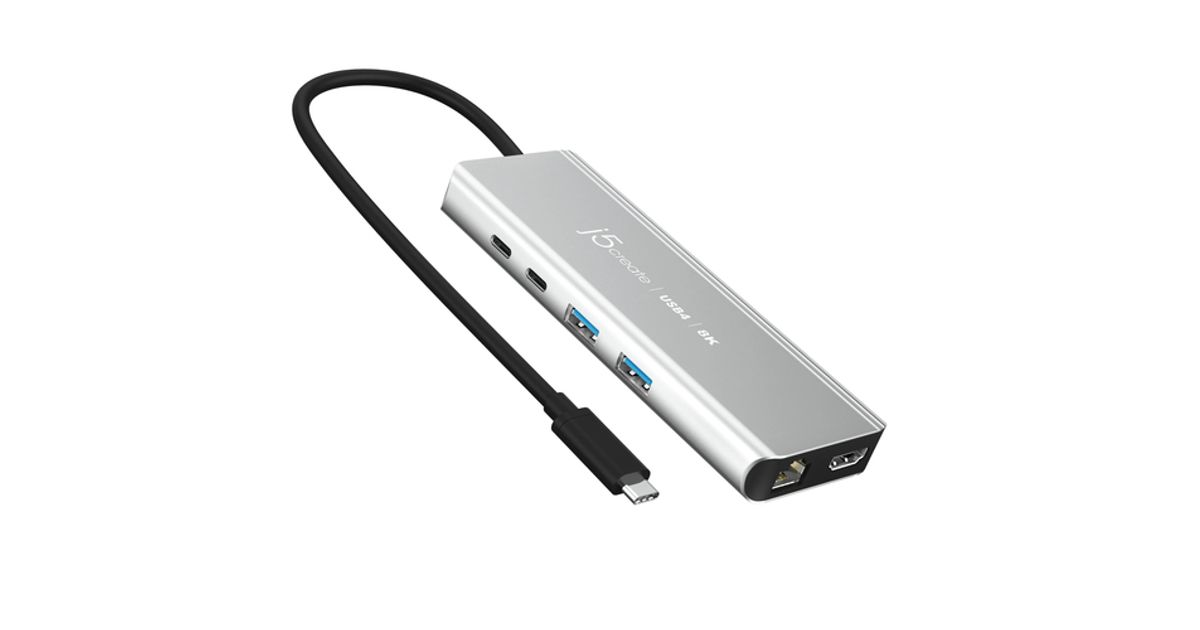

j5create JCD403 USB4® 8K Multi-Port Hub
j5create JCD403 USB4® 8K Multi-Port Hub, USB Type-C, HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, 3840 x 2160, 7680 x 4320, 7680 x 4320 pixels, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | j5create |
| Product code | 578987610 |
| EAN | 24712795086618 |
| Manufacturer part number | JCD403-N |
| Category | Dockingstations |
| Ports & interfaces | |
|---|---|
| Ports quantity | 6 |
| Host interface | USB Type-C |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Power Delivery up to | 100 W |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Features | |
|---|---|
| Data transfer rate | 10000 Mbit/s |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| USB Power Delivery revision | 3.0 |
| Cable type | Round cable |
| Plug and Play | Y |
| Power supply type | USB/AC |
| Input voltage | 20 V |
| Power plug type | Type C |
| Performance | |
|---|---|
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| Design | |
|---|---|
| Product colour | Grey |
| Housing material | Aluminium |
| Display | |
|---|---|
| HD type | 8K Ultra HD |
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Warranty period | 2 year(s) |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Power | |
|---|---|
| Power supply | 100 W |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 4.75 A |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Weight & dimensions | |
|---|---|
| Width | 51 mm |
| Depth | 15 mm |
| Height | 135 mm |
| Weight | 109 g |
| Packaging content | 1 - JCD403 USB4 8K Multi-Port Hub 1 - Quick Installation Guide (QIG) |
| Packaging content | |
|---|---|
| AC adapter included | N |
| Other features | |
|---|---|
| Quick start guide | Y |
| I/O ports | 1- USB-C 3.2 Gen2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Operating temperature (T-T) | 30 - 116 °F |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Product Description
This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.
