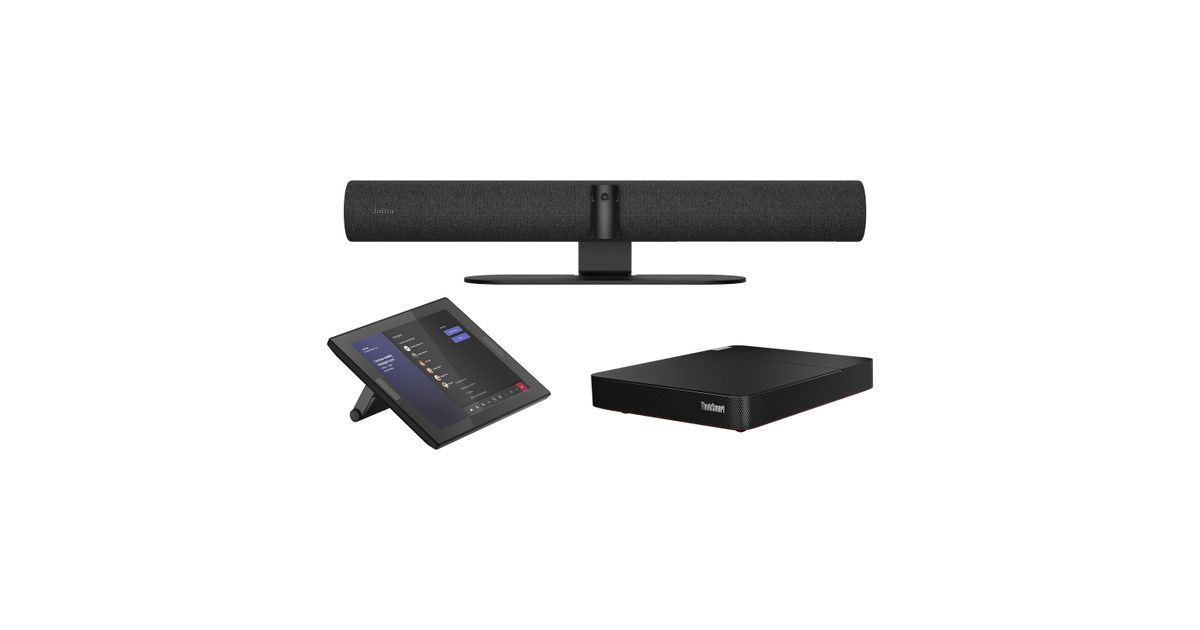

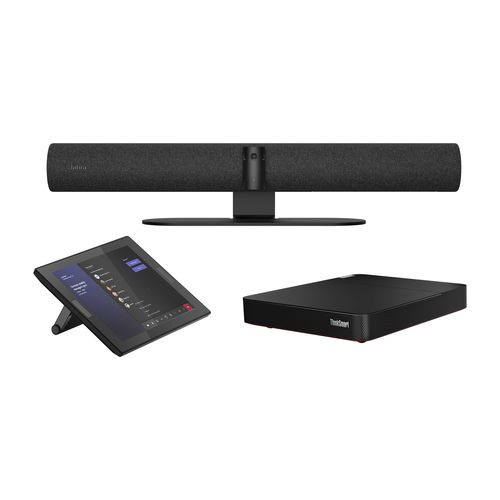

Jabra PanaCast 50 Room System ZR (P50 EU charger & Lenovo ThinkSmart Kit GE)
Jabra PanaCast 50 Room System ZR (P50 EU charger & Lenovo ThinkSmart Kit GE), Group video conferencing system, 4K Ultra HD, 30 fps, 6x, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Jabra |
| Product code | 2210251348 |
| EAN | 05706991028782 |
| Manufacturer part number | 8601-213 |
| Category | Video conferencing equipment |
| Design | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Built-in display | Yes |
| Cable lock slot type | Kensington |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Performance | |
|---|---|
| PTZ control | Yes |
| Megapixel | 13 MP |
| Cable lock slot | Yes |
| Power source type | DC |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 16:10 |
| Touchscreen | Yes |
| Display brightness | 340 cd/m² |
| Anti-glare screen | Yes |
| Camera | |
|---|---|
| Maximum video resolution | 3840 x 1080 pixels |
| Digital zoom | 6x |
| Horizontal field of view | 180° |
| Vertical field of view | 54° |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| Frequency range | 80 - 20000 Hz |
| Audio beamforming | Yes |
| Number of microphones | 8 |
| Other features | |
|---|---|
| Internal memory | 8 MB |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Hard drive | |
|---|---|
| Storage media type | SSD |
| Storage | |
|---|---|
| Total storage capacity | 256 GB |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Features | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| Power plug type | Type F |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Protocols | |
|---|---|
| Supported network protocols | HTTP, SOCKS4, SOCKS4A, SOCKS5, SOCKS5H |
| Picture quality | |
|---|---|
| Camera type | Triple camera |
| Microphone | |
|---|---|
| Microphone sensitivity | -37 dB |
| Microphone frequency | 100 - 8000 Hz |
| Number of microphone arrays | 1 |
| Computer system | |
|---|---|
| Computer system type | Mini PC |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 265.5 x 13 x 168.1 mm |
| Interface module weight | 753.8 g |
| Packaging content | Jabra PanaCast 50, Lenovo ThinkSmart Core, Lenovo ThinkSmart Controller |
| Packaging data | |
|---|---|
| Package width | 165 mm |
| Package depth | 550 mm |
| Package height | 698 mm |
| Packaging content | |
|---|---|
| Cables included | USB Type-C to USB Type-A |
| AC adapter included | Yes |
| Mounting kit | Yes |
Product Description
The Jabra PanaCast 50 Room System is a complete solution that enables small and medium rooms to play host to more inclusive, more immersive virtual meetings. We’ve teamed up with Lenovo to deliver innovative video collaboration experiences that make hybrid working, well, work. This combined solution from trusted brands simplifies video conferencing for increased productivity.
The Jabra and Lenovo partnership combines PanaCast 50 with Lenovo ThinkSmart Core + Controller for a complete, intelligent room system that reinvents video conferencing. Using AI-enabled video and audio streams, PanaCast 50 Room System delivers a more natural and inclusive collaboration experience. And with our proprietary intelligent algorithms, the tone and nuances of the meeting are captured to keep hybrid teams connected and engaged from anywhere.
The Jabra and Lenovo partnership combines PanaCast 50 with Lenovo ThinkSmart Core + Controller for a complete, intelligent room system that reinvents video conferencing. Using AI-enabled video and audio streams, PanaCast 50 Room System delivers a more natural and inclusive collaboration experience. And with our proprietary intelligent algorithms, the tone and nuances of the meeting are captured to keep hybrid teams connected and engaged from anywhere.
