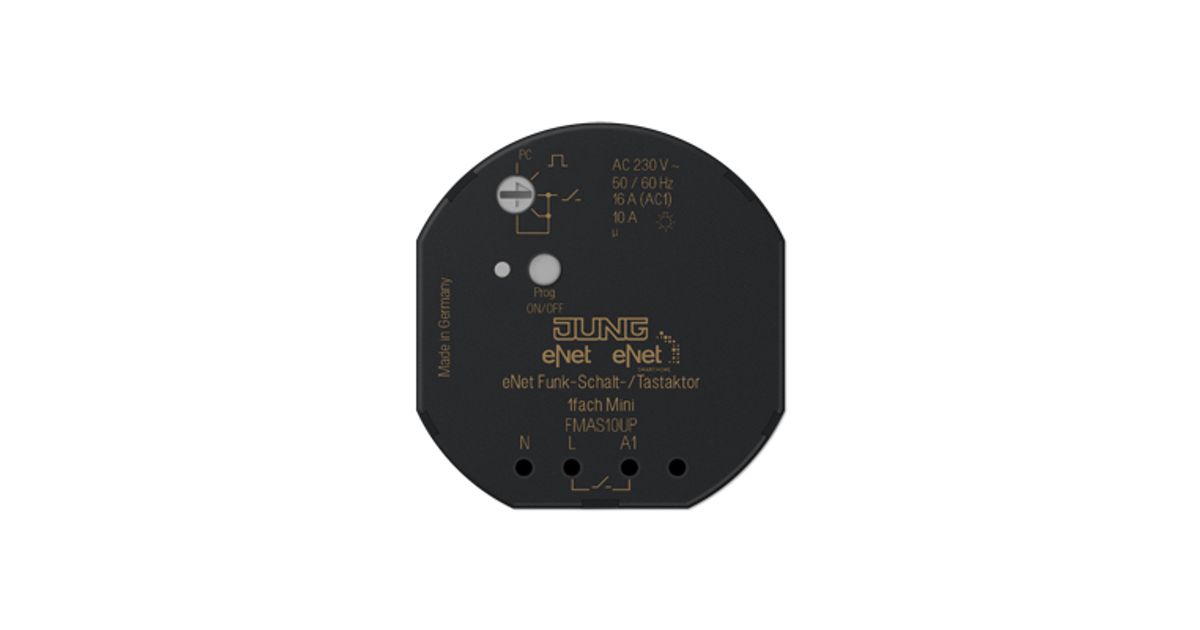

JUNG FM AS 10 UP Flush-mounted Switching actuator
JUNG FM AS 10 UP, Switching actuator, Flush-mounted, 868 MHz, 20 mW, 100 m, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | JUNG |
| Product code | 169235450 |
| EAN | 04011377086838 |
| Manufacturer part number | FMAS10UP |
| Category | Other electrical supplies |
Product Description
New system feature: Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching of lighting
Operation with suitable eNet radio transmitters
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
Mounting in surface-mounted housing or built-in housing (ref.-no. FM-EBG) for false ceilings
Product characteristics
Operating mode switch for: switch/push-button actuator or parameterisation via eNet server
Status feedback to radio transmitter
Scene operation possible
Switchable output with Prog button
Status indication with LED
Switching operation:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Push-button operation:
Relay contact remains closed as long as ON or OFF telegrams are being received
The maximum switch-on time is 60 seconds
Can be set with eNet server:
Flash function
Run-on time
Switch-on delay / switch-off delay
Operation as NO or NC contacts
Switch-off warning
Minimum switching repeat time
Operation locks
Continuous on, Continuous off
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Reading of error memory
Intended use
Switching of lighting
Operation with suitable eNet radio transmitters
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
Mounting in surface-mounted housing or built-in housing (ref.-no. FM-EBG) for false ceilings
Product characteristics
Operating mode switch for: switch/push-button actuator or parameterisation via eNet server
Status feedback to radio transmitter
Scene operation possible
Switchable output with Prog button
Status indication with LED
Switching operation:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Push-button operation:
Relay contact remains closed as long as ON or OFF telegrams are being received
The maximum switch-on time is 60 seconds
Can be set with eNet server:
Flash function
Run-on time
Switch-on delay / switch-off delay
Operation as NO or NC contacts
Switch-off warning
Minimum switching repeat time
Operation locks
Continuous on, Continuous off
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Reading of error memory
