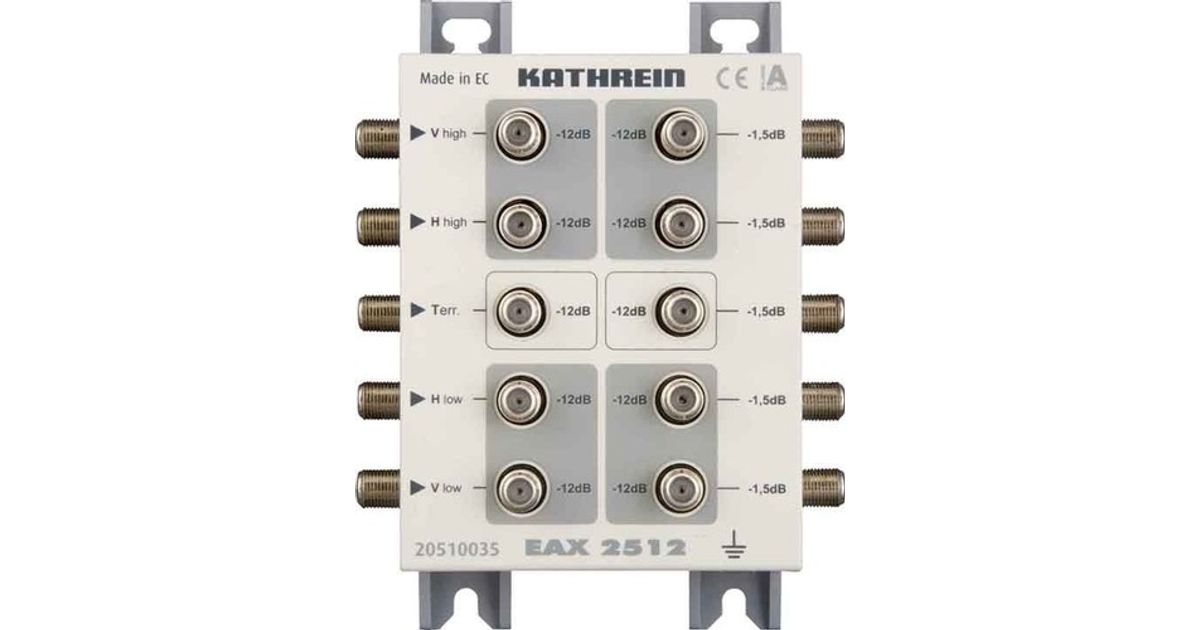

For illustrative purpose only
Kathrein EAX 2512 Cable splitter Grey, White
Kathrein EAX 2512, Cable splitter, 5 - 2150 MHz, Grey, White, F-type, 112 mm, 54.5 mm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Kathrein |
| Product code | 16501943 |
| EAN | 04021121473012 |
| Manufacturer part number | 20510035 |
| Category | TV and monitor accessories |
Product Description
- Two-way tap and two-way splitter for the Sat-IF distribution system (4 x Sat-IF)
- For use in large Sat-IF distribution systems with 5-line multi-switch cascades
- For indoor installation
EAX 2512
- Two-way tap to connect for example two multi-switch cascades with 5 multi-switches each to a trunk
- Five two-way taps (4 x Sat-IF and 1 x terr. range) in one housing
- Remote feeding via input <-> trunk output (4 x Sat-IF); isolating capacitors on the tap outputs
- Can be cascaded with additional EAX 2512 or EBX 2520
- For use in large Sat-IF distribution systems with 5-line multi-switch cascades
- For indoor installation
EAX 2512
- Two-way tap to connect for example two multi-switch cascades with 5 multi-switches each to a trunk
- Five two-way taps (4 x Sat-IF and 1 x terr. range) in one housing
- Remote feeding via input <-> trunk output (4 x Sat-IF); isolating capacitors on the tap outputs
- Can be cascaded with additional EAX 2512 or EBX 2520
