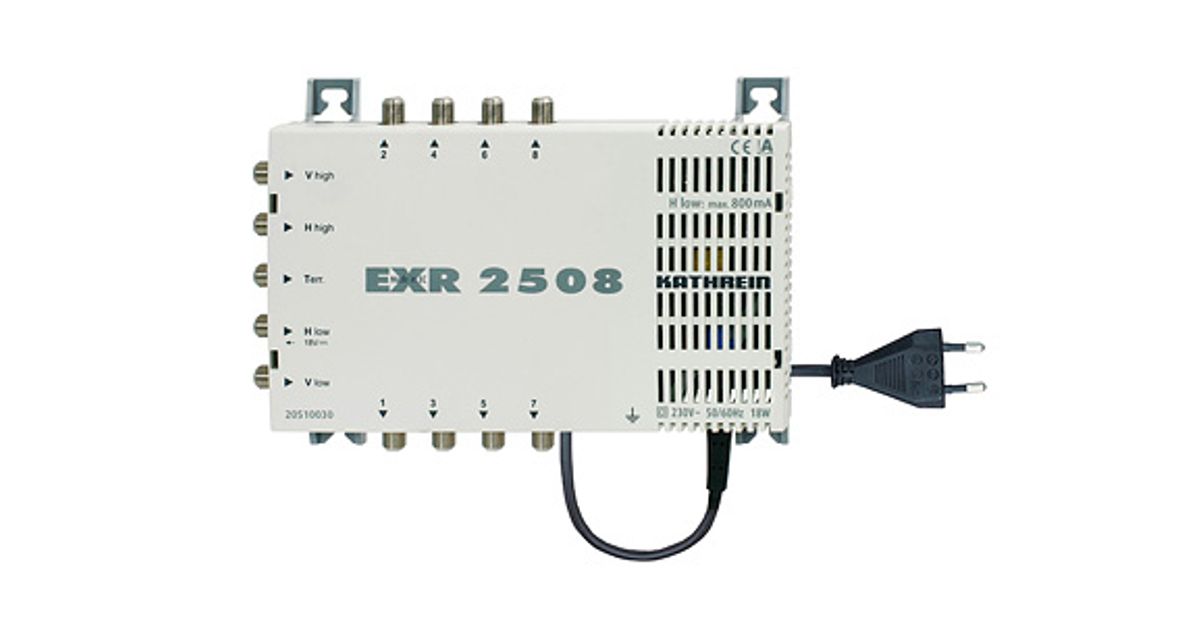

For illustrative purpose only
Kathrein EXR 2508 Grey
Kathrein EXR 2508, Grey, 47 - 862 MHz, 20 mA, 650 g, -20 - 55 °C, 215 x 148 x 43 mm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Kathrein |
| Product code | 167588788 |
| EAN | 04021121522772 |
| Manufacturer part number | 20510030 |
| Category | Satellite receivers & tuners |
Product Description
- Cascadable multi-switch for distribution of four satellite levels and terrestrial signals across multiple receivers
- Only one downlink per receiver needed (two for twin receivers)
- Independent selection of horizontal/vertical, low/high, for each receiver
- Switchable via the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integral amplifi er for low attenuation in satellite signal band
- Integral pre-emphasis to equalise cable attenuation
- Terrestrial signals also receivable even when sat receiver switched off
- Terrestrial band: 5-862 MHz, passive
- High degree of insulation between outputs
- Can be remote fed via the horizontal low inputs. All other inputs are voltage-free (enabling operation with UAS 485/585)
- For indoor installation
- Only one downlink per receiver needed (two for twin receivers)
- Independent selection of horizontal/vertical, low/high, for each receiver
- Switchable via the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integral amplifi er for low attenuation in satellite signal band
- Integral pre-emphasis to equalise cable attenuation
- Terrestrial signals also receivable even when sat receiver switched off
- Terrestrial band: 5-862 MHz, passive
- High degree of insulation between outputs
- Can be remote fed via the horizontal low inputs. All other inputs are voltage-free (enabling operation with UAS 485/585)
- For indoor installation
