Kathrein LCM 17A+ coaxial cable 100 m Black
Kathrein LCM 17A+, 100 m, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Kathrein |
| Product code | 16507152 |
| EAN | 04021121540271 |
| Manufacturer part number | 21510034 |
| Category | Antenna cables and adapters |
Product Description
Cable construction PVO 305/2011 fire classification LCM 14A+: Dca s1a d1 a1; LCM 17A+: Fca.
- Impedance: 75 Ohm metre marking.
- Isolation from special cell-PE mixture, foamed by gas injection.

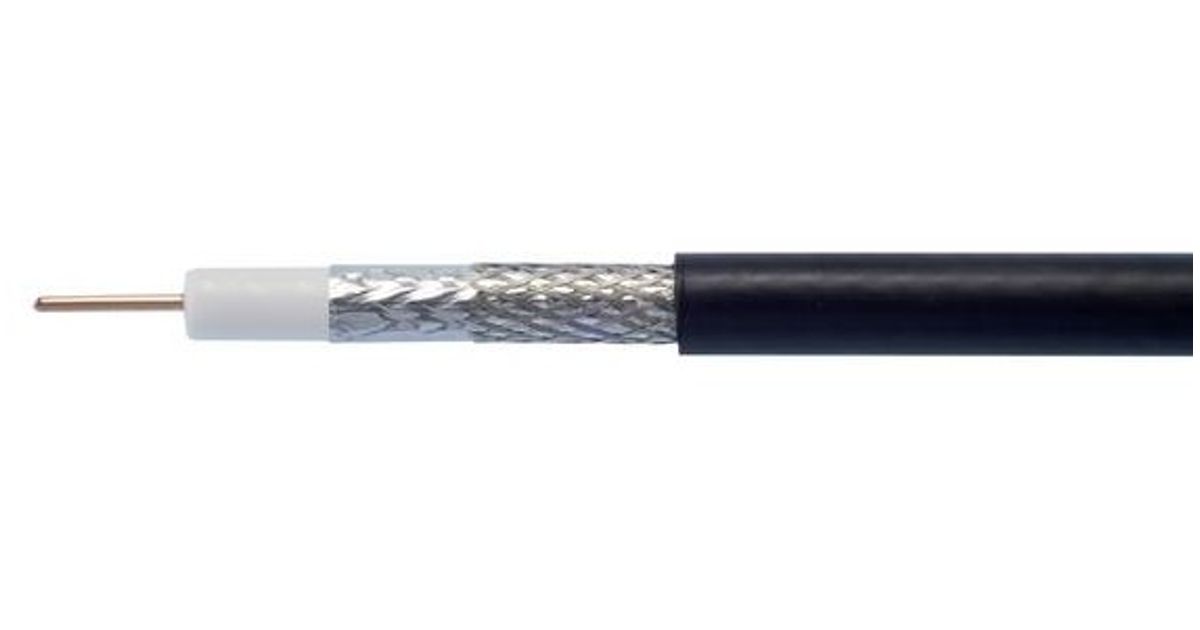

- Inner conductor copper; 3-layer shield with tin-plated copper braiding and two foil layers.
- Very low attenuation over very long distances.
- Conforms to: EN 50117: screening class A +.
- Very high screening typ. 120 dB.
- Building product regulation EU 305/2011 (EN 50575): Fca.
- Suitable for being laid in the ground and outside.
- Lead free; silicone free; halogen free; UV-resistant.
- Suitable connectors EMK 17 threaded, EMK 18 crimp; EMK 19 compression.
