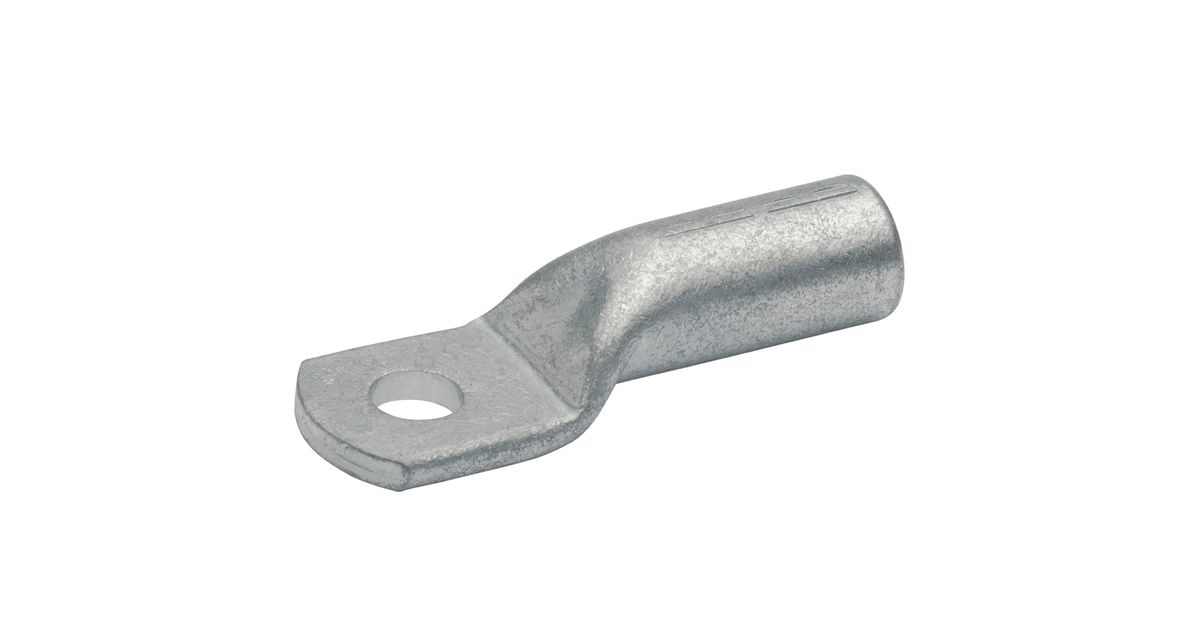

Klauke 110R16 electrical terminals
Klauke 110R16, Tin, Grey, Copper, 150 mm², 1.7 cm, 3.5 cm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Klauke |
| Product code | 165724858 |
| EAN | 04012078462655 |
| Manufacturer part number | 110R16 |
| Category | Power plugs & accessories |
Product Description
- For round conductor, e.g. acc. to DIN EN 60228 Cl. 1, 2, 5 and 6
- For non-tension copper cables acc. to DIN 48201 part 1
- For pre-rounded multi-stranded sector shaped conductors
- Clear tool assignment by code number
- Acc. to DIN 46235
Characteristics
- Easy processing by crimp marks
- Annealed material optimises material and crimping properties
- Easy and safe assembly thanks to a flat contact surface and precise end machining
Material
Copper acc. to EN 13600
Surface
Tin-plated to protect against corrosion
Processing Instructions
Sleeves for compacted conductors and sleeves for 3- and 4-core conductors see chapter "Sleeves for compacted and sector shaped conductors-Cu"
