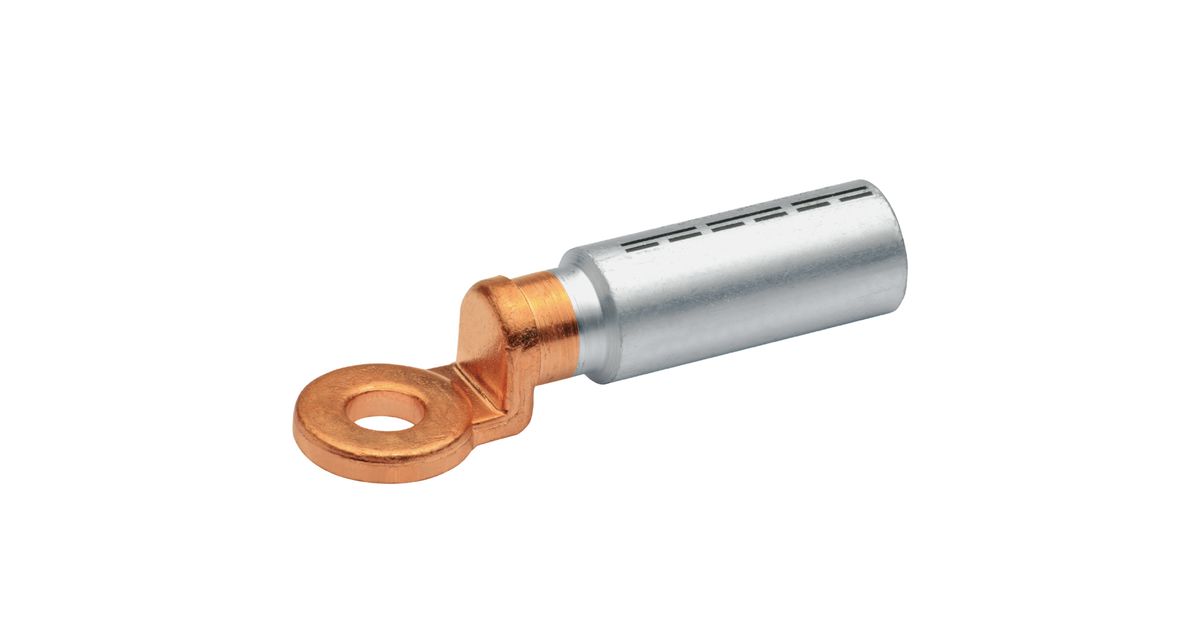

Klauke 371R10 electrical terminals
Klauke 371R10, Aluminium, Copper, Aluminium, Copper, 240 mm², 1.83 cm, 5 pc(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Klauke |
| Product code | 165728797 |
| EAN | 04012078477185 |
| Manufacturer part number | 371R10 |
| Category | Power plugs & accessories |
Product Description
- Tube dimension acc. to DIN 46329
- For non-tension connections of Al cables acc. to DIN EN 60228, part 5 and aluminum cables acc. to DIN EN 50182 and for pre-rounded sector shaped conductors
- For screwing aluminum connections using copper washers in humid areas
- With code number for clear tool assignment
- Filled with contact grease for optimum crimp characteristics
Characteristics
- Barrier design with oil stop and with solid copper screw-on palm
- Easy processing by crimp marks
- Precise end machining for easy cable insertion
Suitable for
Pre-rounded sector shaped conductors
Material
- E-Aluminum
- Copper acc. to EN 13600
Surface
- Bright finished
- For non-tension connections of Al cables acc. to DIN EN 60228, part 5 and aluminum cables acc. to DIN EN 50182 and for pre-rounded sector shaped conductors
- For screwing aluminum connections using copper washers in humid areas
- With code number for clear tool assignment
- Filled with contact grease for optimum crimp characteristics
Characteristics
- Barrier design with oil stop and with solid copper screw-on palm
- Easy processing by crimp marks
- Precise end machining for easy cable insertion
Suitable for
Pre-rounded sector shaped conductors
Material
- E-Aluminum
- Copper acc. to EN 13600
Surface
- Bright finished
