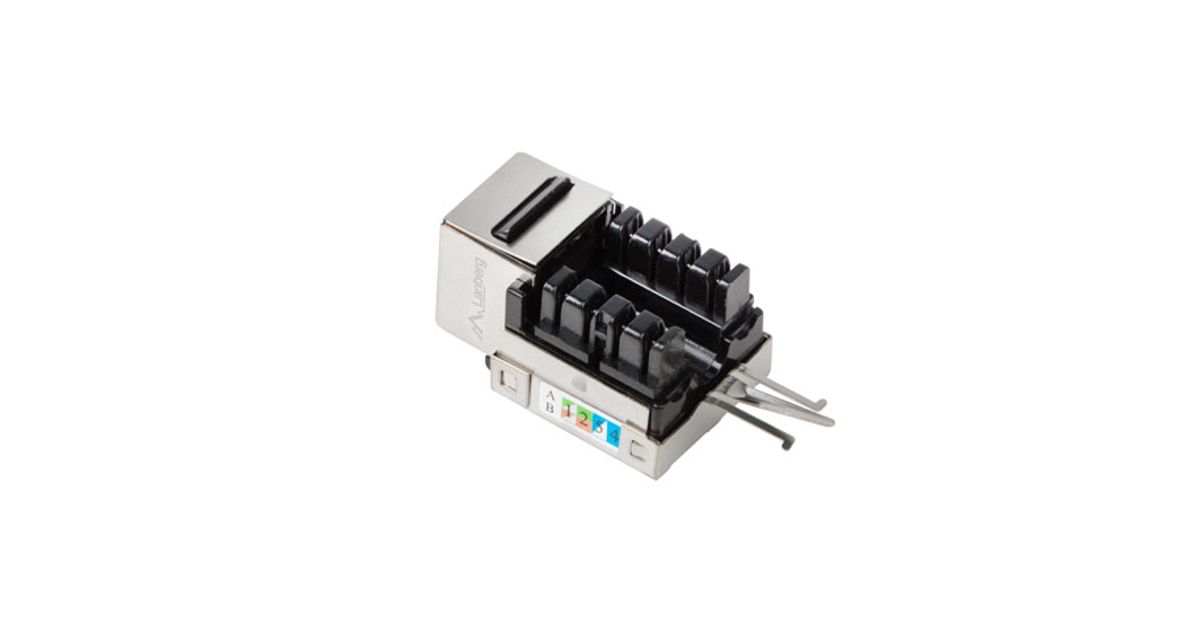

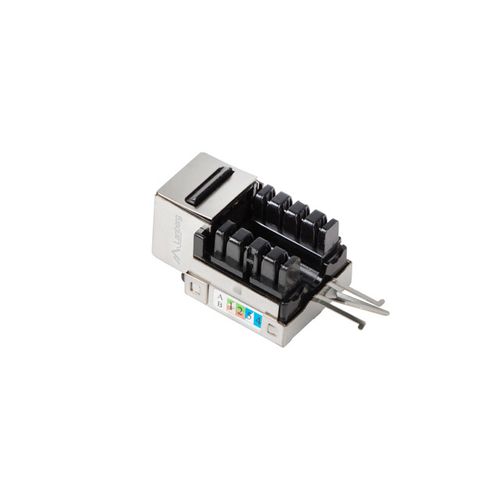

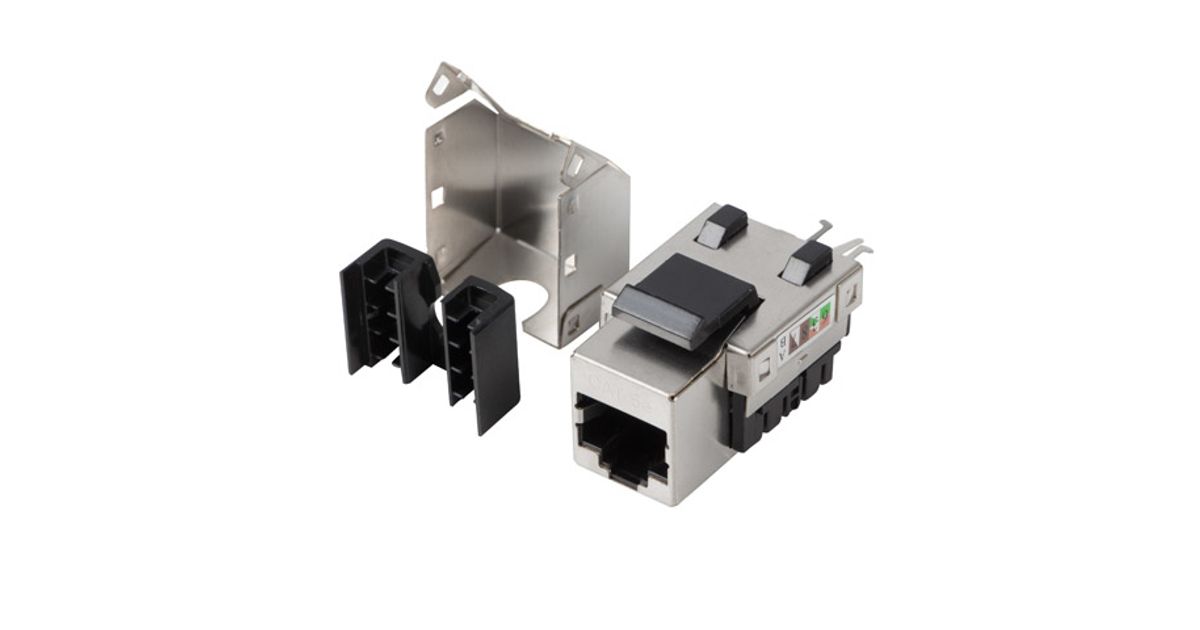

Lanberg KSF5-1090 keystone module
Lanberg KSF5-1090, Flat, Black, Stainless steel, RJ-45, LSA, Female, Female
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lanberg |
| Product code | 03137309 |
| EAN | 05901969415865 |
| Manufacturer part number | KSF5-1090 |
| Category | Other network components |
Product Description
Lanberg’s Cat.5e FTP RJ45 keystone can be mounted in any adapter having appropriate connectors with dimensions (height x width) of 16,10x14,50mm e.g. inside of adapters for 45x45 sockets, electrical equipment frames or modular panels.
Therefore, the overall list of applications for this particular keystone module is very wide. RJ45 socket has an IDC connector cover and a 568A / B colored connection sequence designation.
Device enables you to connect cables in the 568B and 568A sequences.
Universal slotted connectors compatible with the LSA tool.
Keystone made based on PCBA printed circuit board.
• Connector:
external: 1 x female RJ45 socket (8P/8C)
internal: LSA
• Cat.5e
• Shielded (FTP)
• Compliant with Cat.5e requirements
EN 50173-1: 2011 and EN 60603-7-4 and ANSI / TIA 568-C.2
• Designed for stranded / solid wire or cabling up to 0.644 mm (22 - 26 AWG)
PoE support in keystone: up to 36V
Therefore, the overall list of applications for this particular keystone module is very wide. RJ45 socket has an IDC connector cover and a 568A / B colored connection sequence designation.
Device enables you to connect cables in the 568B and 568A sequences.
Universal slotted connectors compatible with the LSA tool.
Keystone made based on PCBA printed circuit board.
• Connector:
external: 1 x female RJ45 socket (8P/8C)
internal: LSA
• Cat.5e
• Shielded (FTP)
• Compliant with Cat.5e requirements
EN 50173-1: 2011 and EN 60603-7-4 and ANSI / TIA 568-C.2
• Designed for stranded / solid wire or cabling up to 0.644 mm (22 - 26 AWG)
PoE support in keystone: up to 36V
