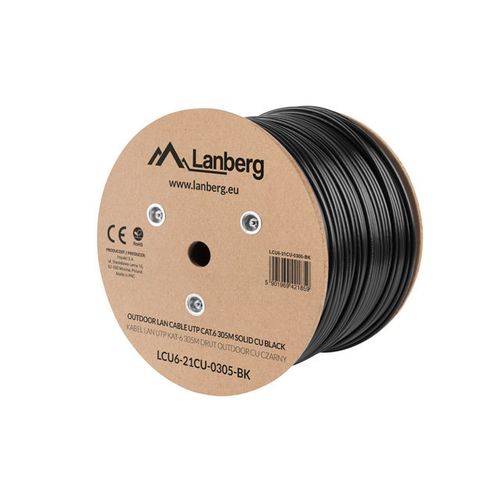

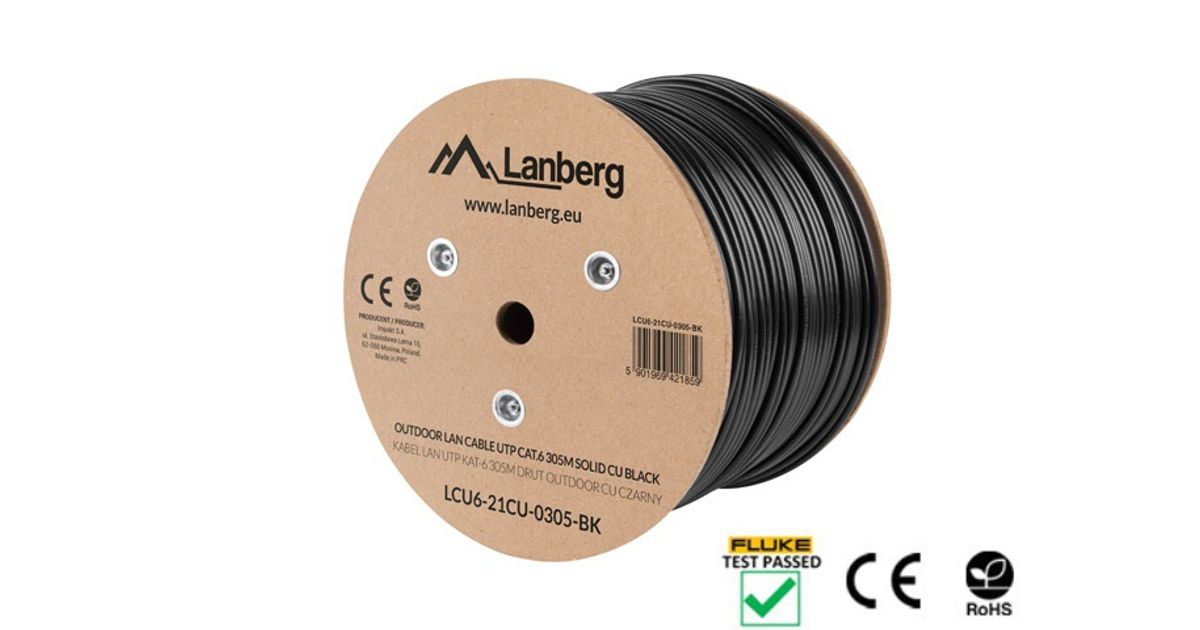

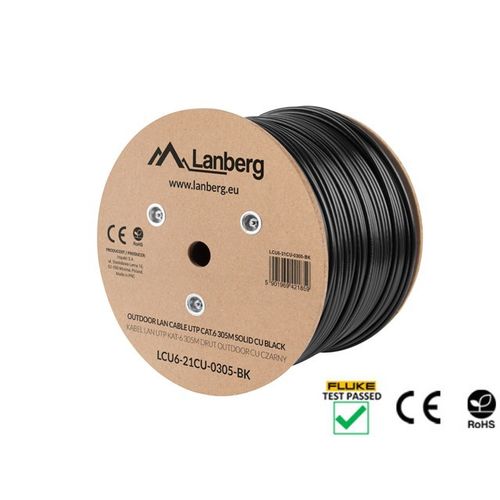

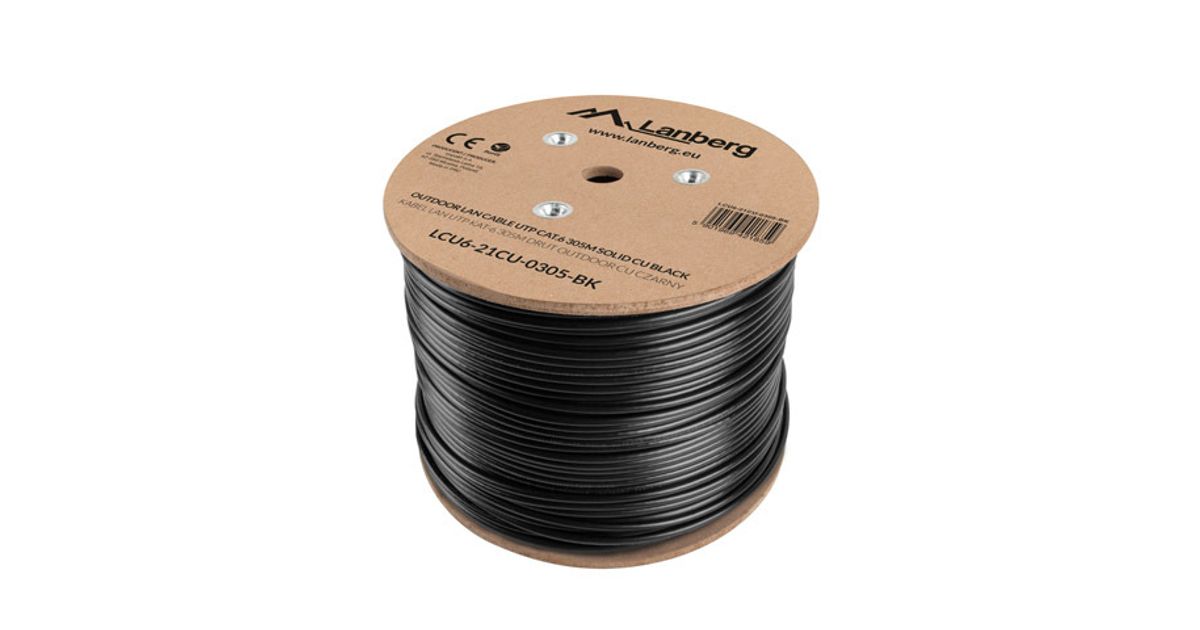

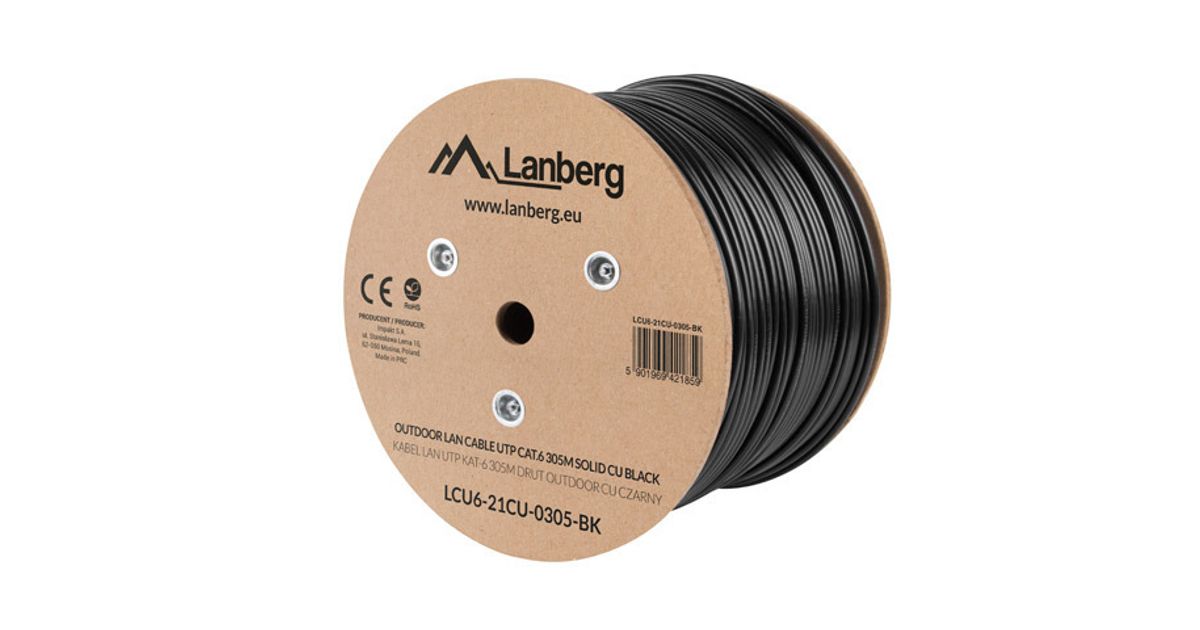

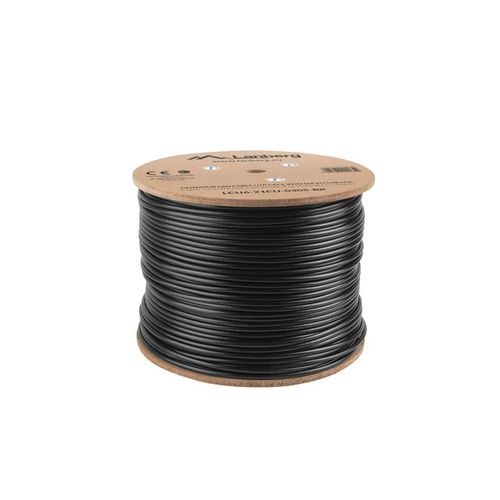

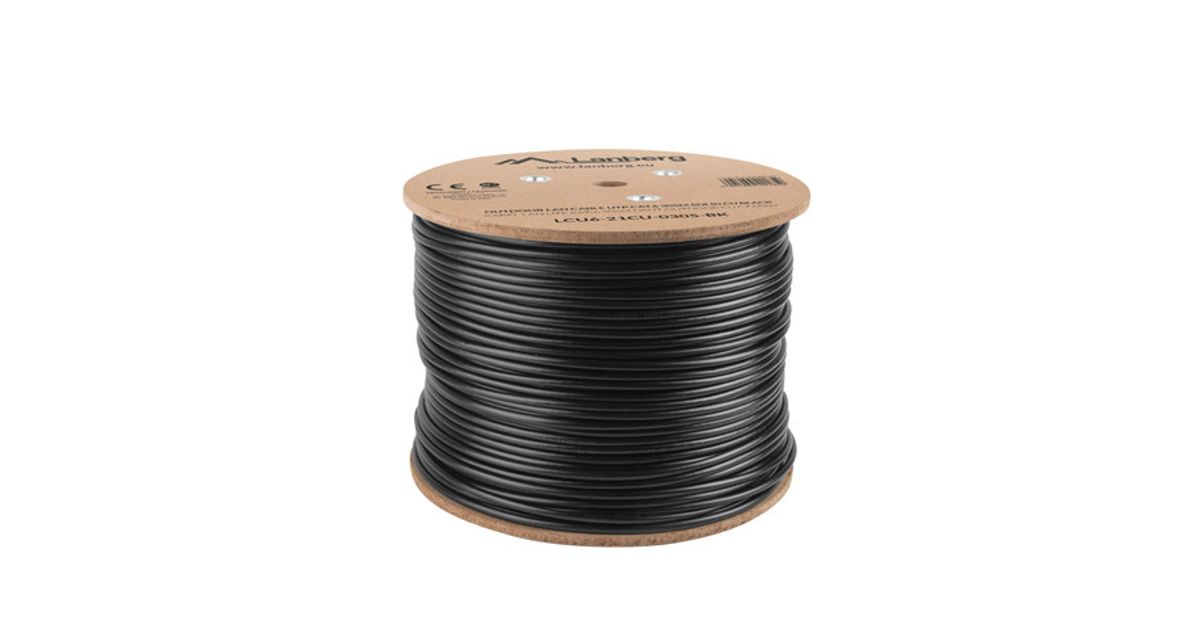

Lanberg LCU6-21CU-0305-BK networking cable Black 305 m Cat6 U/UTP (UTP)
Lanberg LCU6-21CU-0305-BK, 305 m, Cat6, U/UTP (UTP)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lanberg |
| Product code | 325368937 |
| EAN | 05901969421859 |
| Manufacturer part number | AKLAGKS6UTP0006 |
| Category | Network cables |
Product Description
- LAN cable category 6 UTP (Unshielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.55mm).
- Conductor stranding: single wire.
- Color: Black.
- Printed length counter at every meter of cable.
- External PE insulation: 6.0mm.
- HDPE conductor insulation: 0.98mm.
- Operation up to 250Mhz.
- Recommended connector / guide diameter for braided cables: 1.1 mm.
- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 35x35x25 cm.
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.55mm).
- Conductor stranding: single wire.
- Color: Black.
- Printed length counter at every meter of cable.
- External PE insulation: 6.0mm.
- HDPE conductor insulation: 0.98mm.
- Operation up to 250Mhz.
- Recommended connector / guide diameter for braided cables: 1.1 mm.
- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 35x35x25 cm.
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
