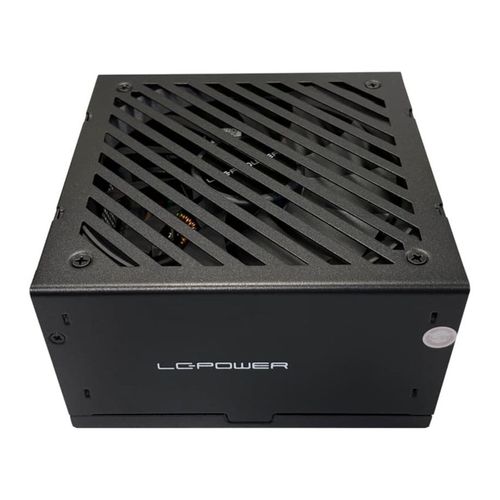

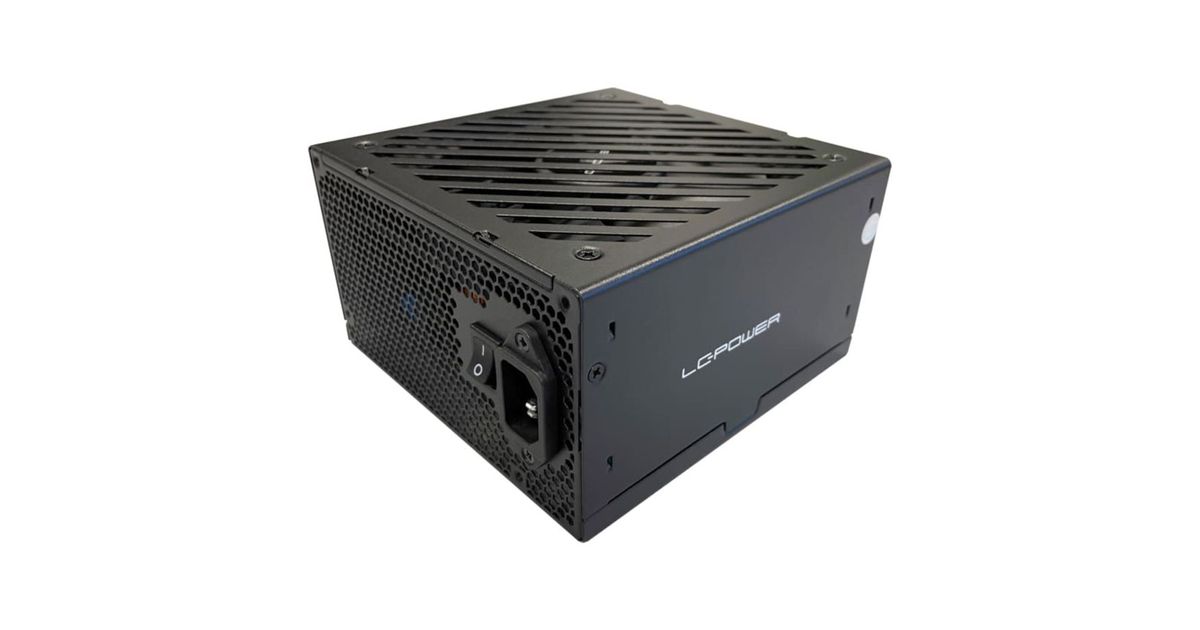

For illustrative purpose only
LC-Power LC6650G-SI V3.1
Product Information
| Information | |
|---|---|
| Manufacturer | LC-Power |
| Product code | 1612350464 |
| EAN | 04262443280708 |
| Manufacturer part number | LC6650G-SI V3.1 |
| Category | Toiteplokid |
Product Description

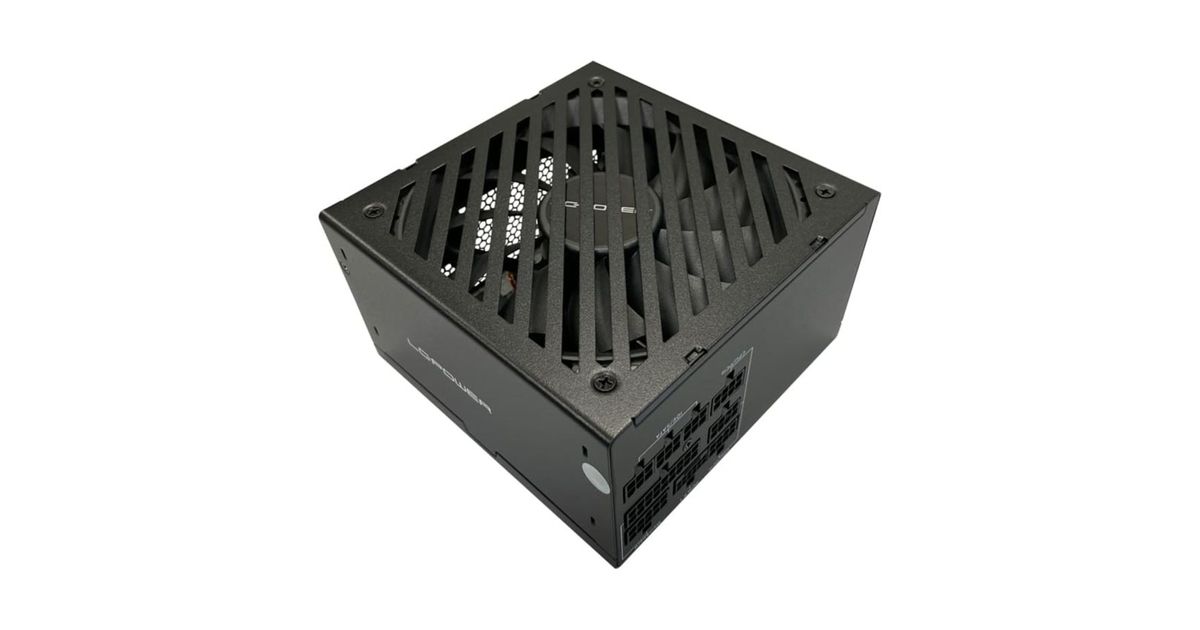

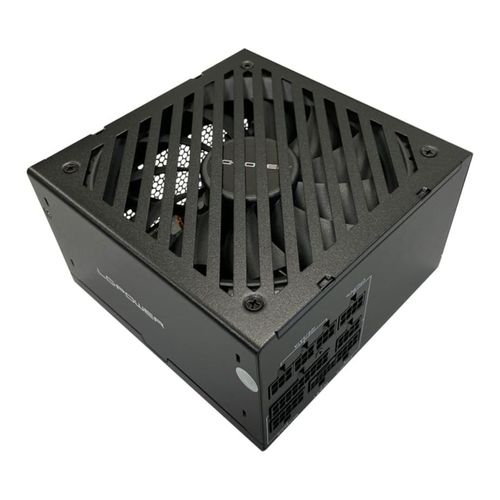

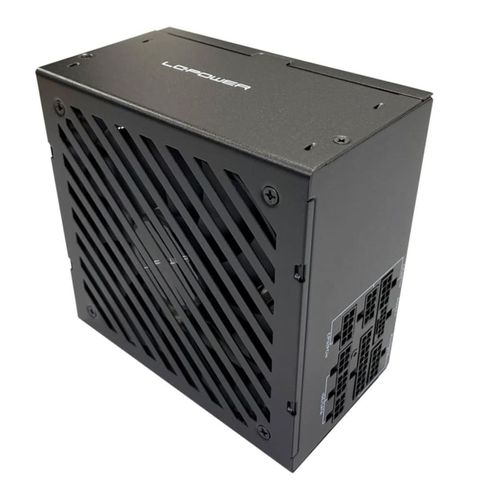

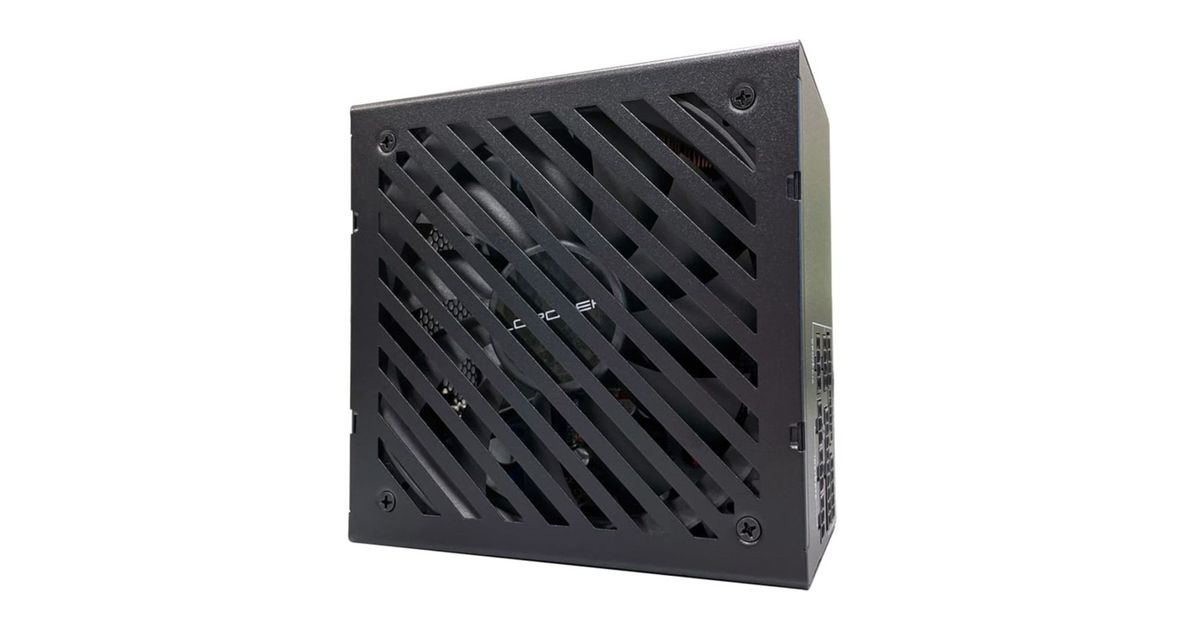

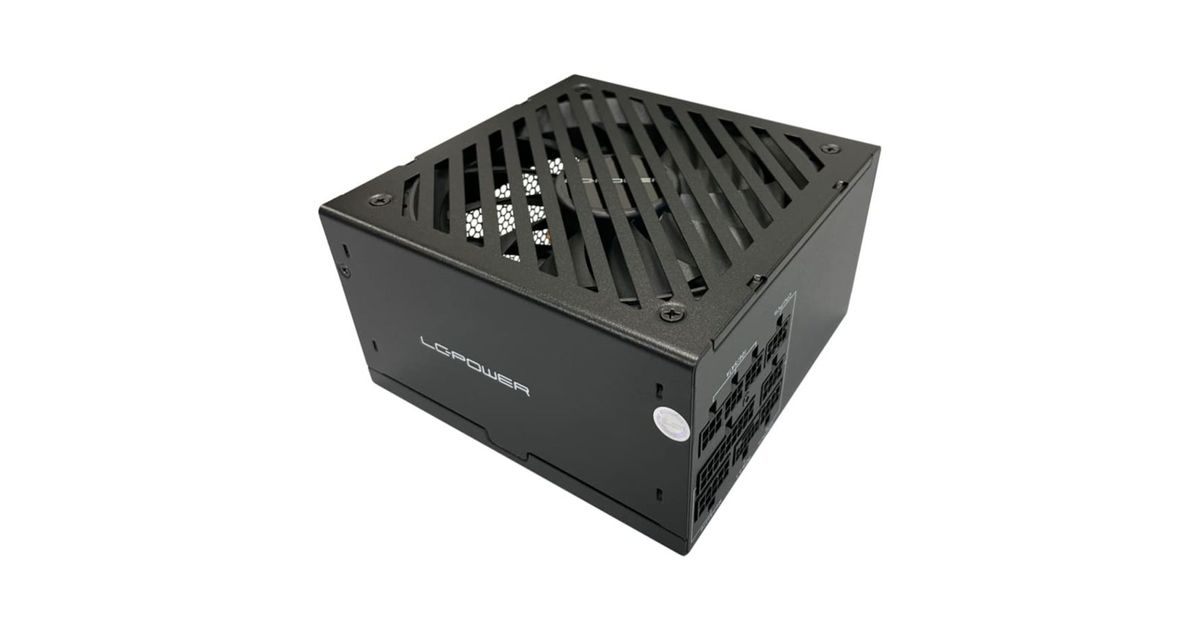

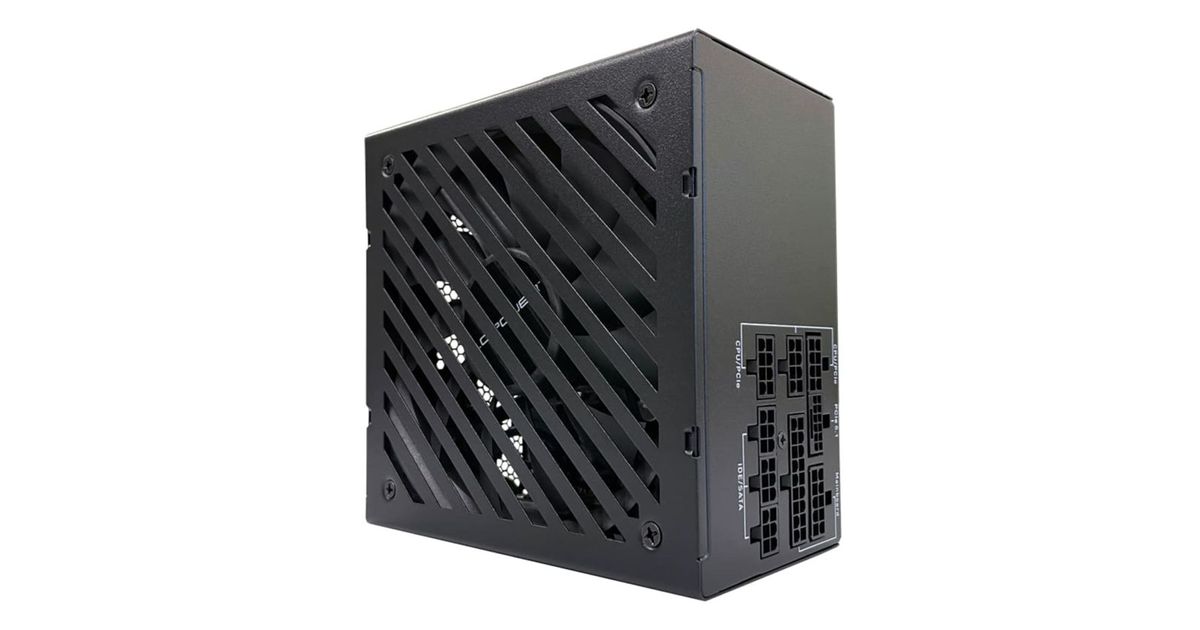

LC-Power LC6650G-SI ATX V3.1 PC Power Supply, PCIe 5.1, Fully Modular, 650 W
The LC6650G-SI V3.1 is an 80 PLUS GOLD-certified, fully modular ATX power supply that ensures good performance and system stability.

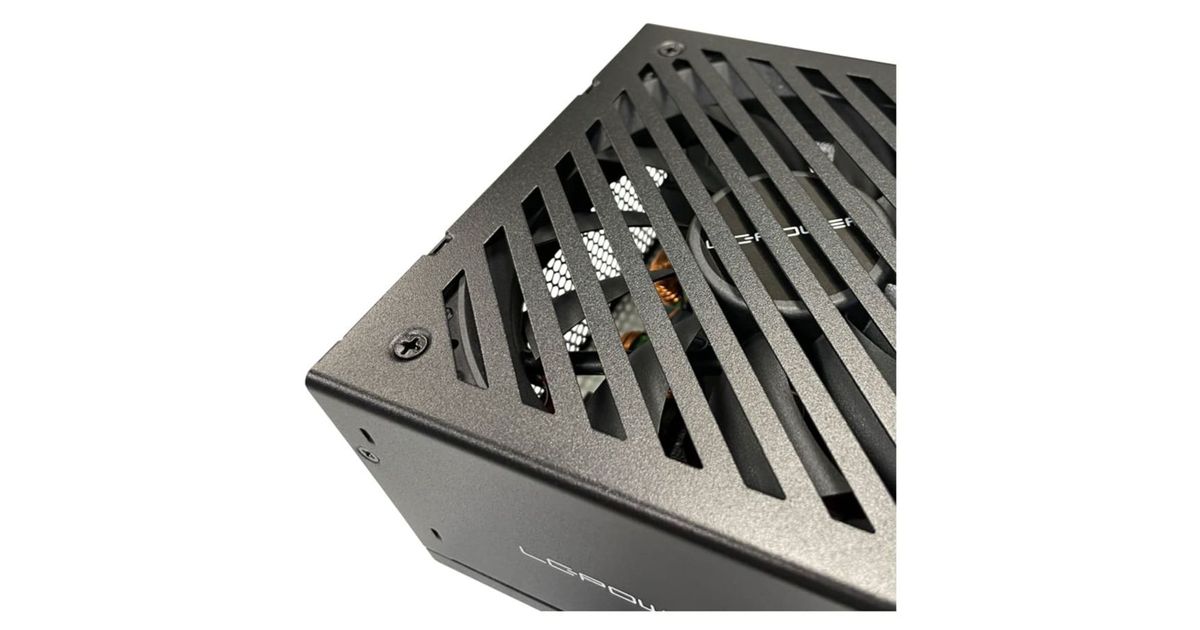

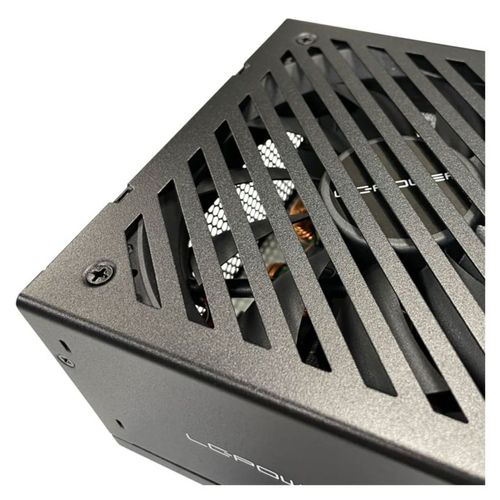

The power supply offers an output of 650 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and provides optimal cooling.
The power supply features a fully modular cable management system, offering optimal flexibility during the installation and configuration of your system.

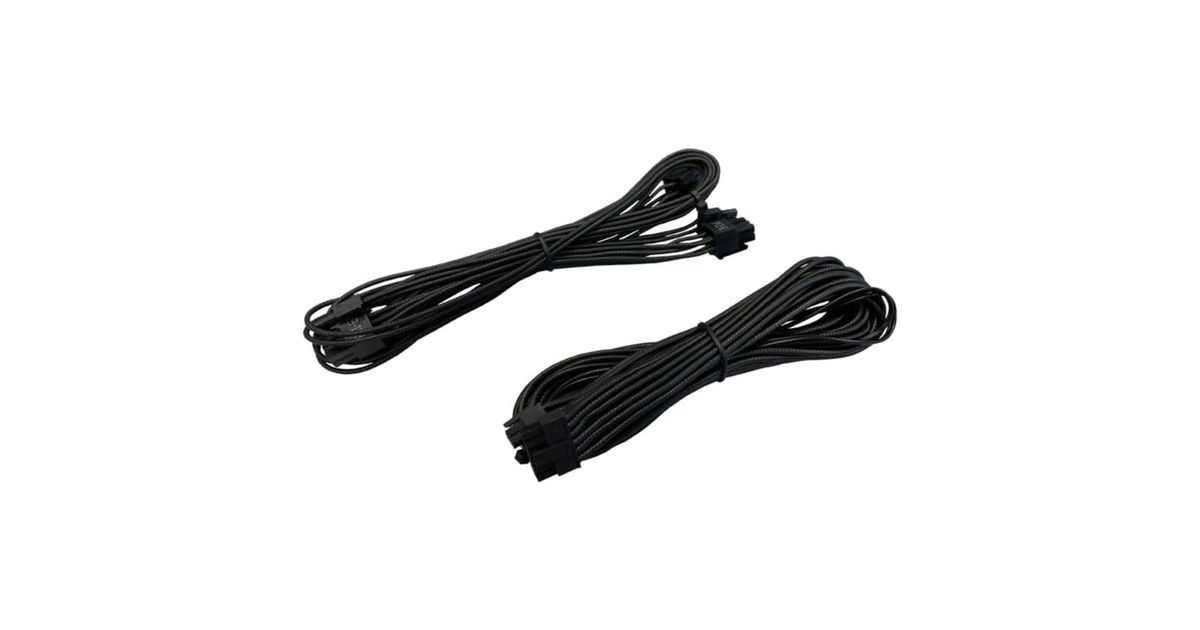

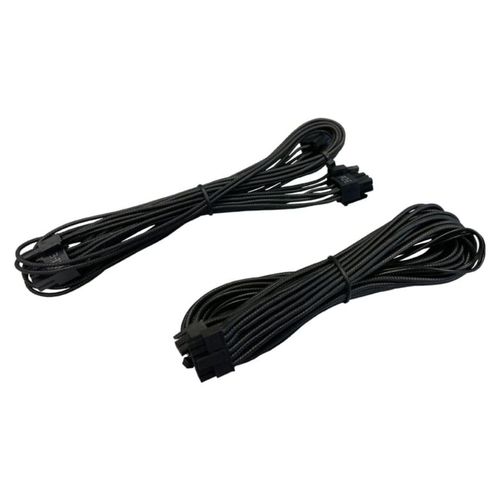

It comes with high-quality, black sleeved cables that not only look good but also allow for easy and clean installation.
Features:
- ATX Form Factor, V 3.1
- Power: 650 W
- Fan: 135 mm
- Black sleeved flat cables
- Fully modular cable management
- 80 PLUS Gold certified
- Efficiency up to 90%
- Powerful +12 V rail: 54.1 A

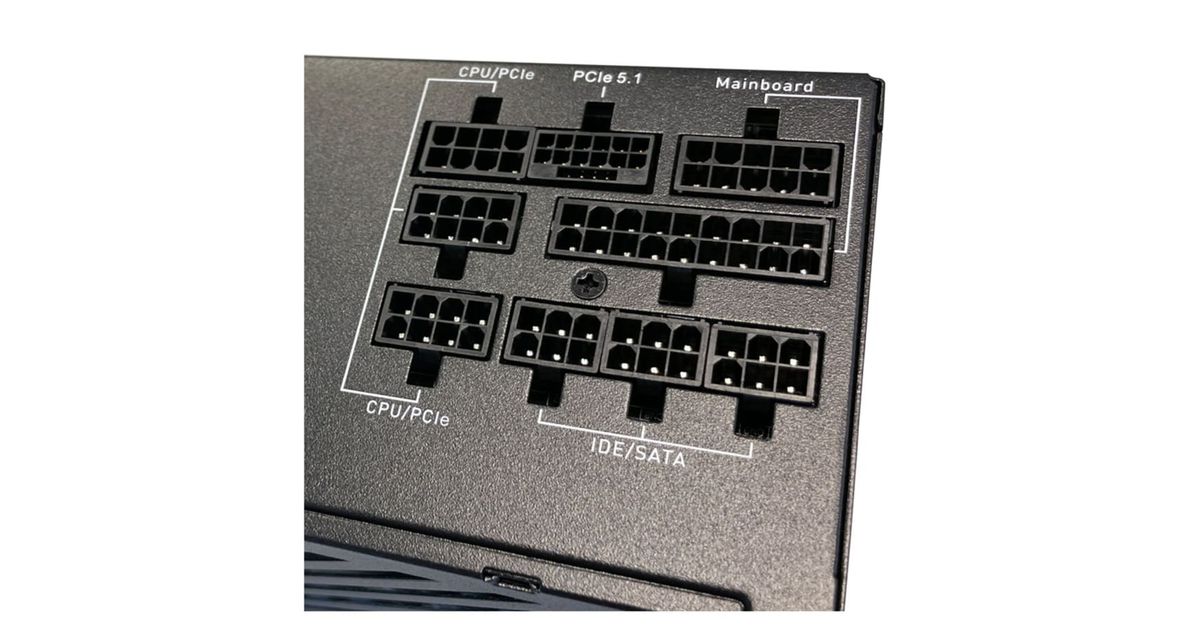

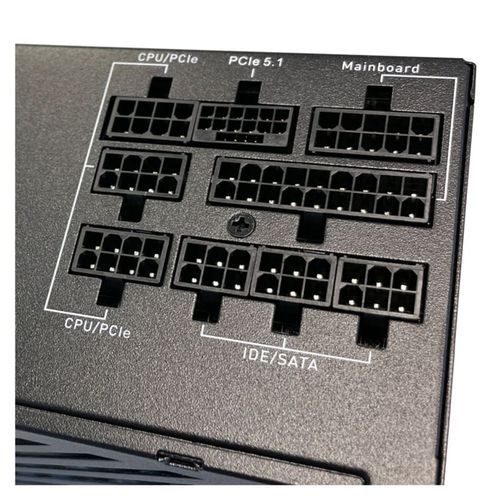

- Connectors:
- 1x Mainboard 20+4-pin, Cable Length: 600 mm
- 2x Mainboard 4+4-pin 12V, 8-pin EPS, Cable Length: 1x 600 / 1x 750 mm
- 1x PCIe 5.1 / 12V, 12+4-pin, Cable Length: 1x 600 mm
- 2x PCIe 6+2-pin, Cable Length: 1x 550 / 1x 700 mm
- 6x SATA, Cable Length: 2x 450 / 2x 600 mm / 2x 700 mm
- 2x PATA, Cable Length: 2x 900 mm
- PFC: Active
- Input AC: 100 – 240 V
- Output DC: 3.3 / 5 / 12 V (20 / 20 / 54.1 A)
- Safety Circuits: OCP (Overcurrent Protection), OPP (Overpower Protection), OVP (Overvoltage Protection), SCP (Short Circuit Protection), SIP (Surge Protection), UVP (Undervoltage Protection)
- Material: Metal, Plastic
- Dimensions: 86 x 150 x 150 mm
- Weight: approx. 2.13 kg
- Color: Black
