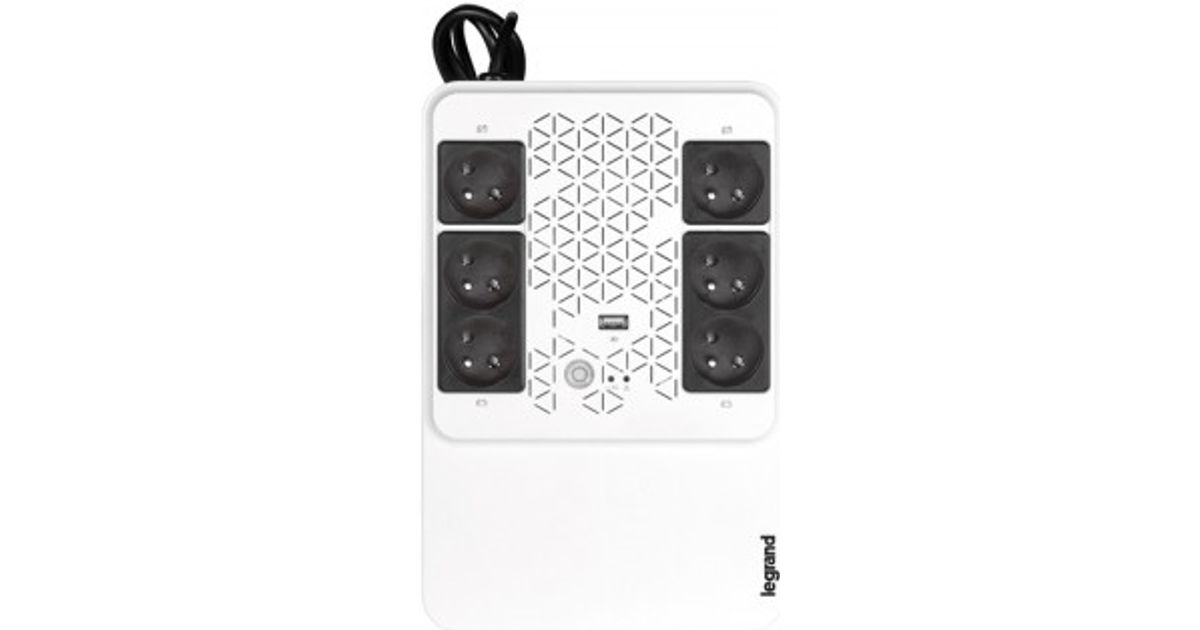

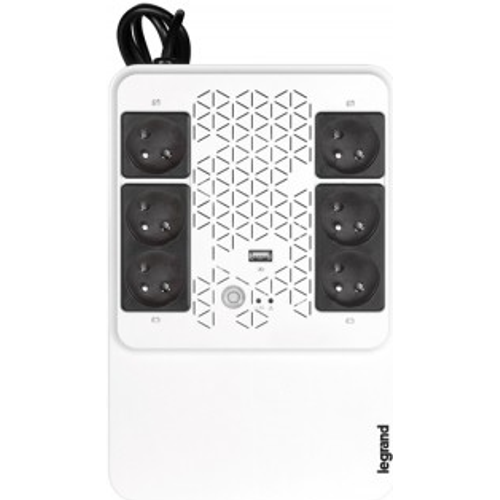

Legrand Keor Multiplug Line-Interactive 0.8 kVA 480 W 6 AC outlet(s)
Legrand Keor Multiplug, Line-Interactive, 0.8 kVA, 480 W, Sine, 170 V, 290 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Legrand |
| Product code | 16751842 |
| EAN | 03414971227279 |
| Manufacturer part number | AULGRL1TMULT800 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.8 kVA |
| Output power | 480 W |
| Waveform | Sine |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Automatic Voltage Regulation (AVR) | Y |
| Surge protection | Y |
| Certification | EN 62040-1, EN 62040-2 |
| Other features | |
|---|---|
| Noise level | 40 dB |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Number of outlets (Battery backup & protection) | 4 |
| Number of outlets (Protection) | 2 |
| USB port | Y |
| Battery | |
|---|---|
| Typical backup time at full load | 15 min |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black, White |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 190 mm |
| Depth | 296 mm |
| Height | 89.5 mm |
| Weight | 5.5 kg |
| Power | |
|---|---|
| USB output voltage | 5 V |
Product Description
The Keor Multiplug is a uninterruptible power supply with interactive line technology. It delivers a rated power of 600VA and 800VA, it is CPU-controlled and is equipped, internally, with valve-regulated, hermetically sealed lead accumulator battery.
The presence of an electronic stabiliser (AVR) inside the UPS provides the connected loads with effective protection against any interference in the electrical mains.
The presence of an electronic stabiliser (AVR) inside the UPS provides the connected loads with effective protection against any interference in the electrical mains.
