Leica DISTO D5 Package Laser distance measurer
Product Information
| Information | |
|---|---|
| Manufacturer | Leica |
| Product code | 1110832756 |
| EAN | 07640180531265 |
| Manufacturer part number | 950879 |
| Category | Distance measurers |
Product Description

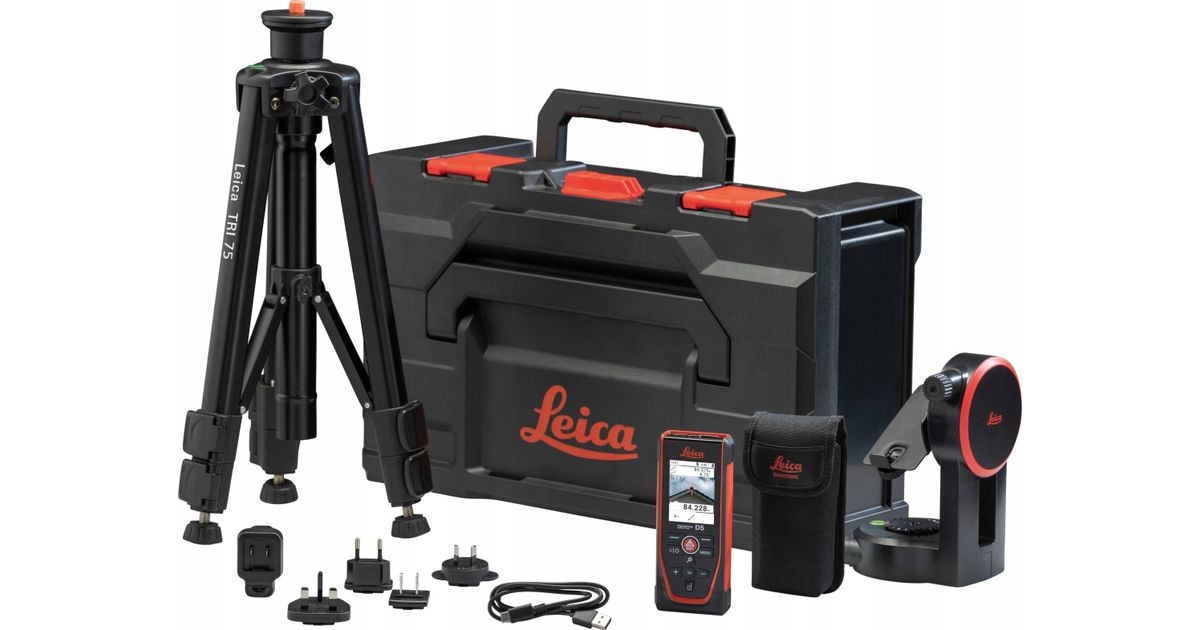

Leica Disto D5 laser rangefinder tripod adapter FTA360 + tripod TRI75 in SET
Laser rangefinders face special challenges when measuring outdoors, such as bright light, long distances and uneven terrain. The Leica DISTO instruments master these challenges thanks to innovative technologies and matching accessories. Even if the laser point is no longer visible to the naked eye, the target remains clearly visible in the crosshair of the large high-resolution color display of the laser measuring instrument.
Features:
- Laser rangefinder for indoor and outdoor use
- Range: up to 200 m
- Accuracy 1.0 mm, resolution 0.1 mm
- Ready for use
- Measuring the Inclination
- Smart horizontal mode
- 2.4" IPS display bright and with scratch-resistant glass
- Triggering of measurements by gestures possible
- Memory for 50 measurements
- USB-C charging socket
- Li-ion battery
- Measured values can be transferred directly digitally
- Bluetooth 5.0
- Height profile measurement by creating height profiles
- Identify the cornerstones of land
- Simply determine excavation
- Non-contact triggering of measurement for highest precision
- Data input via Bluetooth with simulated keyboard
- App-compatible: Disto Plan app (iOS and Android), Disto transfer (Windows)
- FTA 360 High-precision adapter
- Compact and lightweight tripod TRI 75
Technical data:
- Accuracy: 1.0 mm
- Range: up to 200 m (depending on the ambient conditions)
- Smallest display unit: 0.1 mm
- X-Range Power Technology
- Laser class 2: 635 nm, <1 mW
- Digital Viewfinder with 4x zoom
- Inclination measuring range: 360° (user calibration)
- Tolerance of inclination measurement: 0.2°
- ø Laser point | at a distance of 6 / 30 / 60 mm | 10 / 50 / 100 m
- Protection class: IP54 (dust and splash water protected)
- Automatic laser shut-off after: 90 s
- Auto shut-off after: 180 s
- Bluetooth: 5.0
- Bluetooth range: up to 10 m
- Battery life (Li-Ion, 2000 mAh): up to 5,000 measurements
- Up to 10 hours of operation
- Dimensions (H x D x W)144 x 60 x 24 mm
- Weight: 180 g
- Temperature range of storage: -25 to 70 °C
- Operating temperature range: -10 to 50 °C
