Lenovo 4SG7A08868 network switch Managed L2/L3 Black
Lenovo 4SG7A08868, Managed, L2/L3, Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 229892194 |
| EAN | 00889488467990 |
| Manufacturer part number | 4SG7A08868 |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 4095 |
| Network | |
|---|---|
| 10G support | Y |
| Port mirroring | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Security algorithms | SSH |
| Features | |
|---|---|
| Full duplex | Y |
| Data transmission | |
|---|---|
| MAC address table | 103000 entries |
| Static route | Y |
| Number of static routes | 128 |
| Security | |
|---|---|
| DHCP features | DHCP relay |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Performance | |
|---|---|
| Management protocols | SNMP V1, V2, V3 |
| Mean time between failures (MTBF) | 300000 h |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Width | 401 mm |
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
Product Description

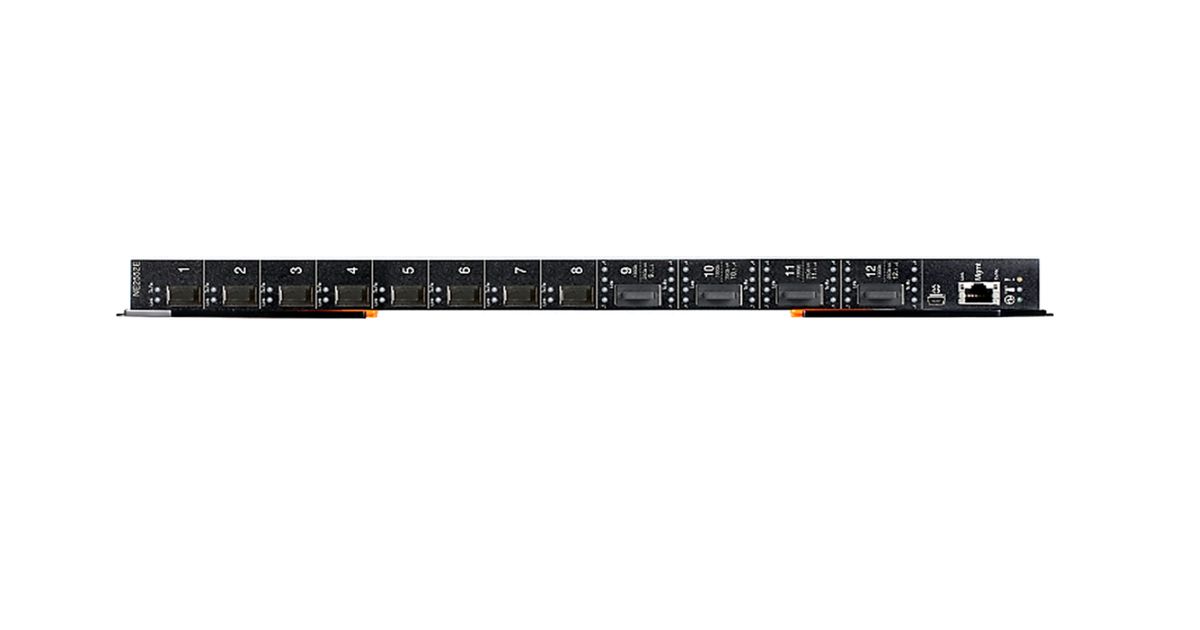

The Lenovo ThinkSystem NE2552E Flex Switch is an embedded switch module for Flex System that is designed for the data center to provide 10 Gb/25 Gb/50 Gb Ethernet server connectivity with 50 Gb/100 Gb Ethernet upstream links. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the numerous high-availability software features help provide high availability for business sensitive traffic.
