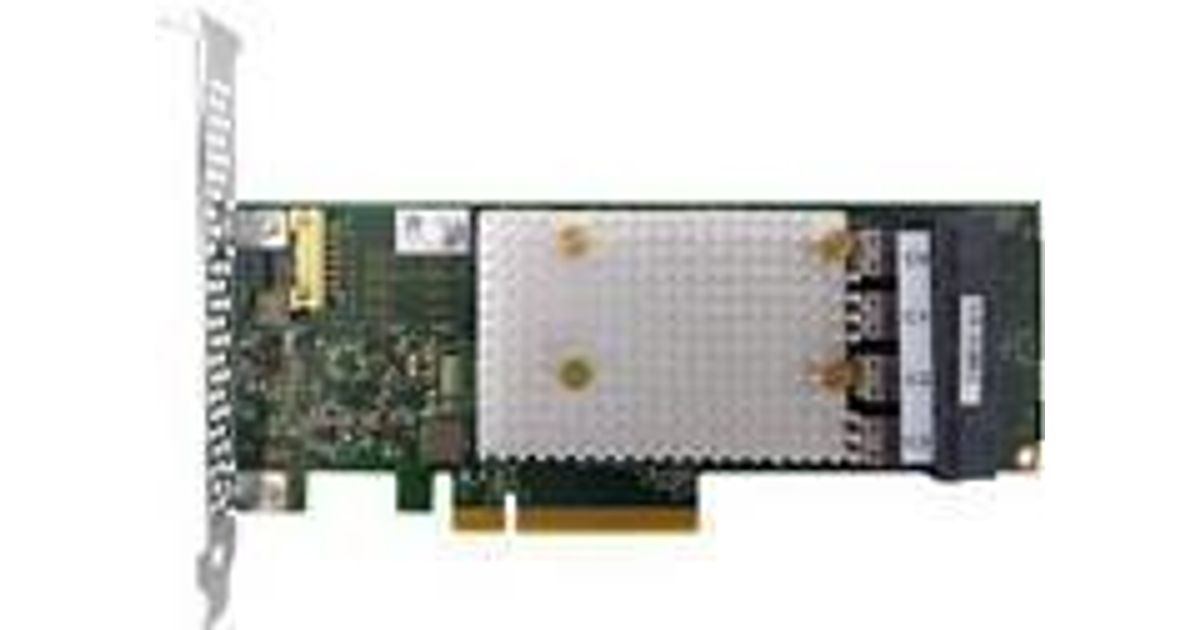

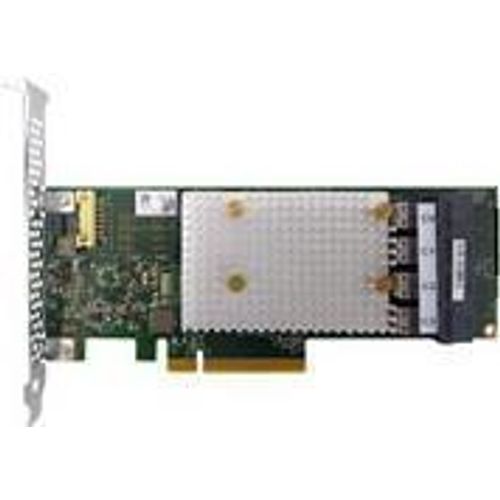

Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
Lenovo 4Y37A72485, SAS, Serial ATA, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12 Gbit/s, 4000 MB, Microchip Luxor ROC PM8236
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 166310671 |
| EAN | 00889488588039 |
| Manufacturer part number | 4Y37A72485 |
| Category | RAID controllers |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express x8 |
| Processor | |
|---|---|
| PCI Express slots version | 3.0 |
| Features | |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B) |
| Linux operating systems supported | Y |
| Performance | |
|---|---|
| SSD support | Y |
| Chipset | Microchip Luxor ROC PM8236 |
| JBOD function | Y |
| Number of devices supported | 16 |
| Hot-swap | Y |
| Other features | |
|---|---|
| Internal memory | 4000 MB |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 167 mm |
| Height | 64 mm |
Product Description
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
