For illustrative purpose only
Lenovo AUKP Internal Ethernet 10000 Mbit/s
Lenovo AUKP, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Black, Green
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 16485400 |
| EAN | 08894884336124 |
| Manufacturer part number | 7ZT7A00496 |
| Category | Võrgukaardid |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Features | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| iSCSI support | Y |
| Maximum operating distance | 100 m |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Performance | |
|---|---|
| Internal | Y |
| Design | |
|---|---|
| Product colour | Black, Green |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 69 mm |
| Depth | 168 mm |
| Height | 15 mm |
Product Description
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

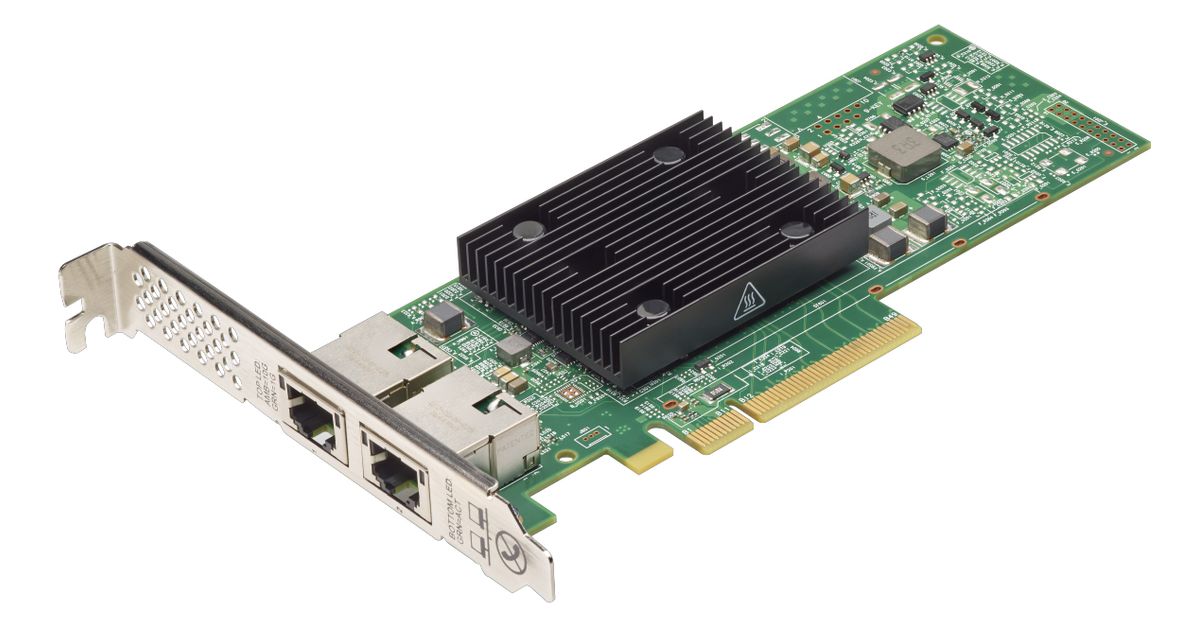

The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.
The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
