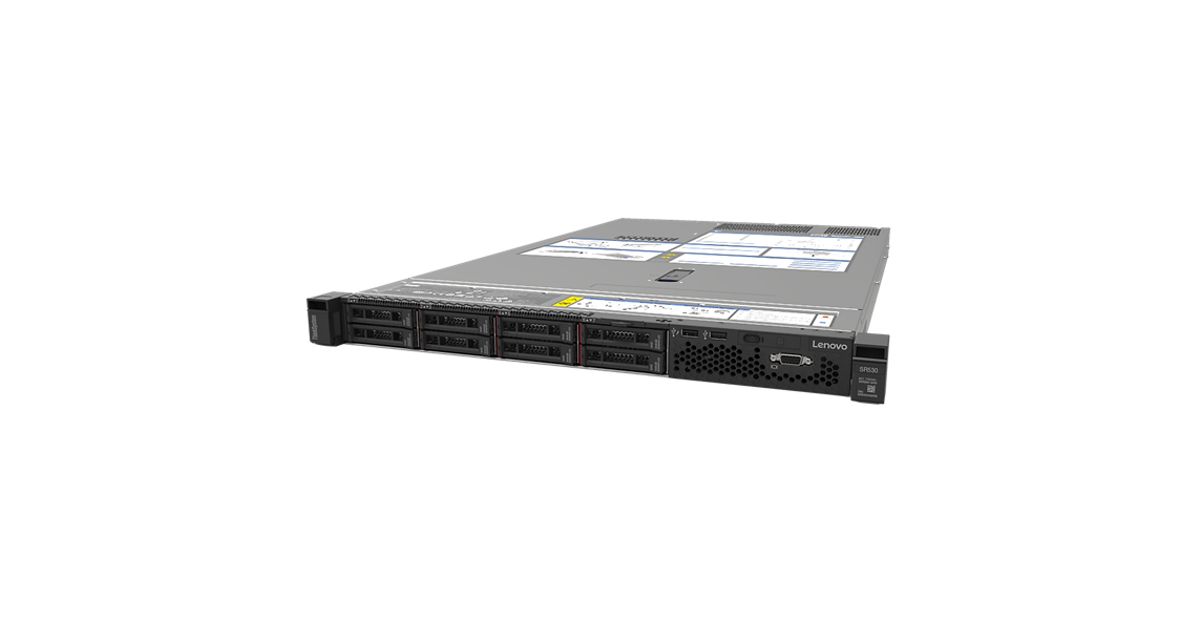

Lenovo ThinkSystem SR530 server Rack (1U) Intel Xeon Silver 2.1 GHz 16 GB DDR4-SDRAM 750 W
Lenovo ThinkSystem SR530, 2.1 GHz, 4208, 16 GB, DDR4-SDRAM, 750 W, Rack (1U)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 162233987 |
| EAN | 05415247250357 |
| Manufacturer part number | 7X08A0ADEA |
| Category | Servers |
| Processor | |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4208 |
| Processor frequency | 2.1 GHz |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Maximum internal memory supported by processor | 1024 GB |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Features | |
|---|---|
| Motherboard chipset | Intel C622 |
| Scalability | 2S |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Harmonized System (HS) code | 84714100 |
| Operational conditions | |
|---|---|
| Tcase | 78 °C |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Memory | |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 12 |
| ECC | Y |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Embedded options available | N |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel TSX-NI | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 193390 |
| Storage controllers | |
|---|---|
| RAID support | Y |
| RAID levels | 0, 1, 5, 10, 50 |
| Storage | |
|---|---|
| Optical drive type | N |
| Supported HDD sizes | 2.5" |
| Supported RAID controllers | 530-8i |
| Card reader integrated | N |
| Other features | |
|---|---|
| Internal drive bays | 8 |
| Redundant fans support | Y |
| Compatible operating systems | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7 |
| Graphics | |
|---|---|
| Discrete graphics adapter | N |
| On-board graphics adapter model | Not available |
| Network | |
|---|---|
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet LAN | Y |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Rack mounting | Y |
| Rack rails | Y |
| Built-in display | N |
| Performance | |
|---|---|
| Performance management | XClarity Advanced |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Y |
| Power supply | 750 W |
| Number of redundant power supplies installed | 1 |
| Power supply input frequency | 50 - 60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 434 mm |
| Depth | 715 mm |
| Height | 43 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
Product Description
Essential and priced within reach
Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Flexible to grow with your business
ThinkSystem SR530 offers numerous features to increase performance and flexibility. Incorporating two Intel® Xeon® Scalable family CPUs with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*, SR530 offers a balance of performance, capacity and value. With M.2 storage support, it provides robust boot drive options, freeing up the other drive bays for additional storage capacity. SR530 supports up to three PCIe adapter slots; several choices of network options via embedded LOM, selectable LOM, ML2, and PCIe adapters for additional 1GbE/10GbE ports; and software and hardware RAID options for added configuration flexibility. In addition, features such as 80 PLUS Platinum and Titanium PSUs, continuous operation at 45°C (with limitations), and various technologies that speed upgrades and maintenance all combine to reduce your operating costs and increase uptime.
Easily managed
Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Lenovo servers continue to be the industry’s #1 most reliable†, with the industry’s highest customer satisfaction‡ rating.
Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Flexible to grow with your business
ThinkSystem SR530 offers numerous features to increase performance and flexibility. Incorporating two Intel® Xeon® Scalable family CPUs with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*, SR530 offers a balance of performance, capacity and value. With M.2 storage support, it provides robust boot drive options, freeing up the other drive bays for additional storage capacity. SR530 supports up to three PCIe adapter slots; several choices of network options via embedded LOM, selectable LOM, ML2, and PCIe adapters for additional 1GbE/10GbE ports; and software and hardware RAID options for added configuration flexibility. In addition, features such as 80 PLUS Platinum and Titanium PSUs, continuous operation at 45°C (with limitations), and various technologies that speed upgrades and maintenance all combine to reduce your operating costs and increase uptime.
Easily managed
Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Lenovo servers continue to be the industry’s #1 most reliable†, with the industry’s highest customer satisfaction‡ rating.
