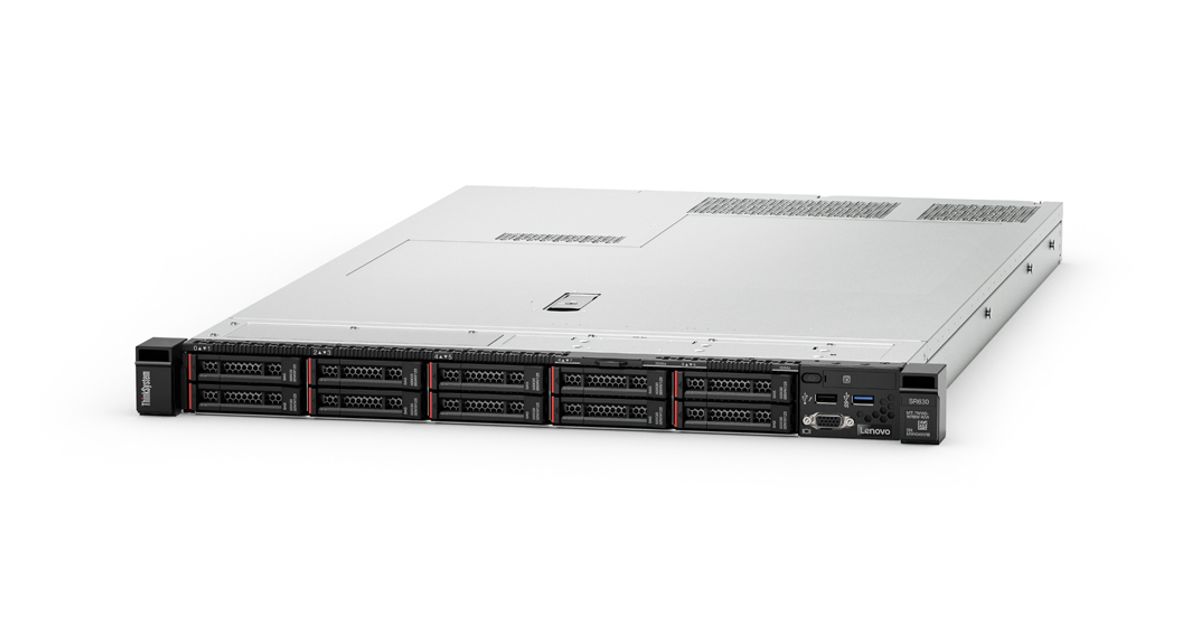

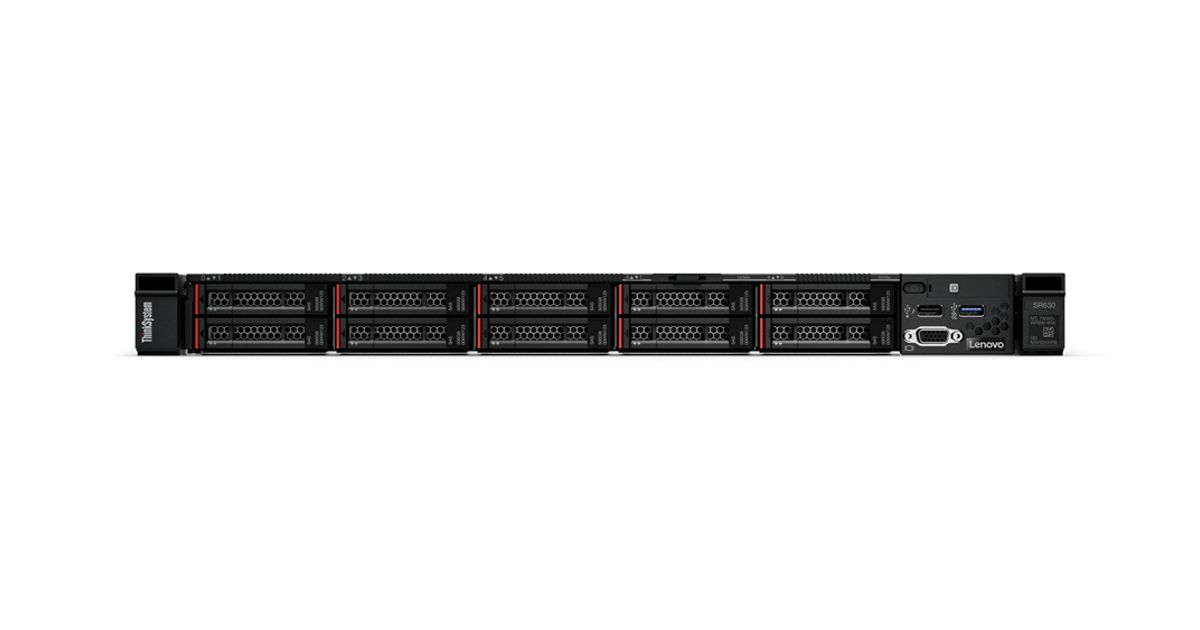

Lenovo ThinkSystem SR630 server Rack (1U) Intel Xeon Silver 2.1 GHz 32 GB DDR4-SDRAM 750 W
Lenovo ThinkSystem SR630, 2.1 GHz, 4208, 32 GB, DDR4-SDRAM, 750 W, Rack (1U)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 173805938 |
| EAN | 05054444341125 |
| Manufacturer part number | 7X02A0F1EA |
| Category | Servers |
| Processor | |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4208 |
| Processor frequency | 2.1 GHz |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Maximum internal memory supported by processor | 1024 GB |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Operational conditions | |
|---|---|
| Tcase | 78 °C |
| Memory | |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Processor special features | |
|---|---|
| Execute Disable Bit | Y |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Embedded options available | N |
| Enhanced Intel SpeedStep Technology | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel TSX-NI | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 193390 |
| Features | |
|---|---|
| Scalability | 2S |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 1.2 |
| Harmonized System (HS) code | 84714100 |
| Storage controllers | |
|---|---|
| RAID support | Y |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Storage | |
|---|---|
| Supported RAID controllers | 930-8i 2GB |
| Performance | |
|---|---|
| Hot-swap | Y |
| Performance management | XClarity |
| Graphics | |
|---|---|
| On-board graphics adapter model | Not available |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Cabling technology | 10/100/1000Base-T(X) |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Compatible operating systems | Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux 7; SUSE Linux Enterprise Server 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7. |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Rack mounting | Y |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Y |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 434 mm |
| Depth | 715 mm |
| Height | 43 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
Product Description
Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.*
* Based on Intel internal testing, August 2018.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
