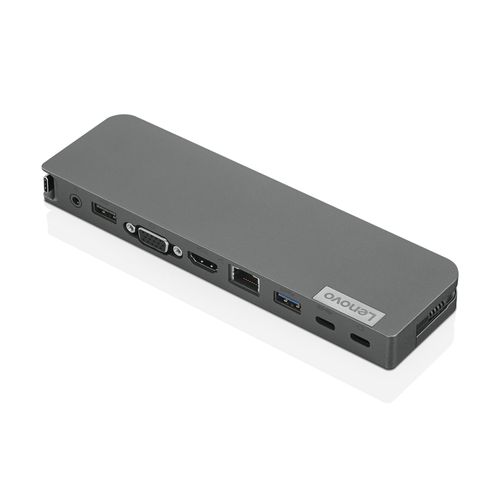

Lenovo USB-C Mini Dock Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Lenovo USB-C Mini Dock, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 3.5 mm, 10,100,1000 Mbit/s, Grey, CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lenovo |
| Product code | 164025957 |
| EAN | 00193386926092 |
| Manufacturer part number | 40AU0065DK |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Y |
| Headphone connectivity | 3.5 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Design | |
|---|---|
| Product colour | Grey |
| Storage | |
|---|---|
| Card reader integrated | N |
| Features | |
|---|---|
| Certification | CB, BSMI, SII, CU, Ukraine, Kvalitet, LOA, NOM, cULus, FCC, ICES, CE, RCM, VCCI, KCC, EAC |
| Harmonized System (HS) code | 84733020 |
| Performance | |
|---|---|
| Power source type | AC |
| Power | |
|---|---|
| Power supply | 65 W |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 53 mm |
| Height | 17 mm |
| Weight | 156 g |
| Package weight | 565 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 215 mm |
| Package depth | 210 mm |
| Package height | 65 mm |
| Packaging content | |
|---|---|
| Warranty card | Y |
| AC adapter included | Y |
Product Description
The Lenovo Mini USB-C dock lets you expand your options and add powerful capabilities with just a single USB-C connection. Charge any legacy device with USB-A ports and effortlessly add an extra 4K or HD display, enterprise networking, and an external 3.5mm combo audio jack. Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: - 5 Gbit/s for USB 3.1 Gen 1; 10 Gbit/s for USB 3.1 Gen 2 and 20 Gbit/s for USB 3.2.
