LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W
LevelOne 10-Port Fast Ethernet PoE Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE Outputs, 120W, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16485771 |
| EAN | 05050914834135 |
| Manufacturer part number | 520831 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber type | Single-mode |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Certification | FCC, CE, RoHS |
| Power protection features | Over current, Short circuit |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 5.6 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | N |
| Product colour | Black, Grey |
| LED indicators | Activity, LAN, PoE, Power |
| On/off switch | Y |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Performance | |
|---|---|
| Buffer size | 512 KB |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 52 V |
| Power consumption (typical) | 120 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 9 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 115 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 188 mm |
| Depth | 118 mm |
| Height | 38 mm |
| Weight | 1.5 kg |
| Package weight | 1.7 kg |
| Packaging content | |
|---|---|
| Manual | Y |
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Package width | 222 mm |
| Package depth | 146 mm |
| Package height | 78 mm |
Product Description

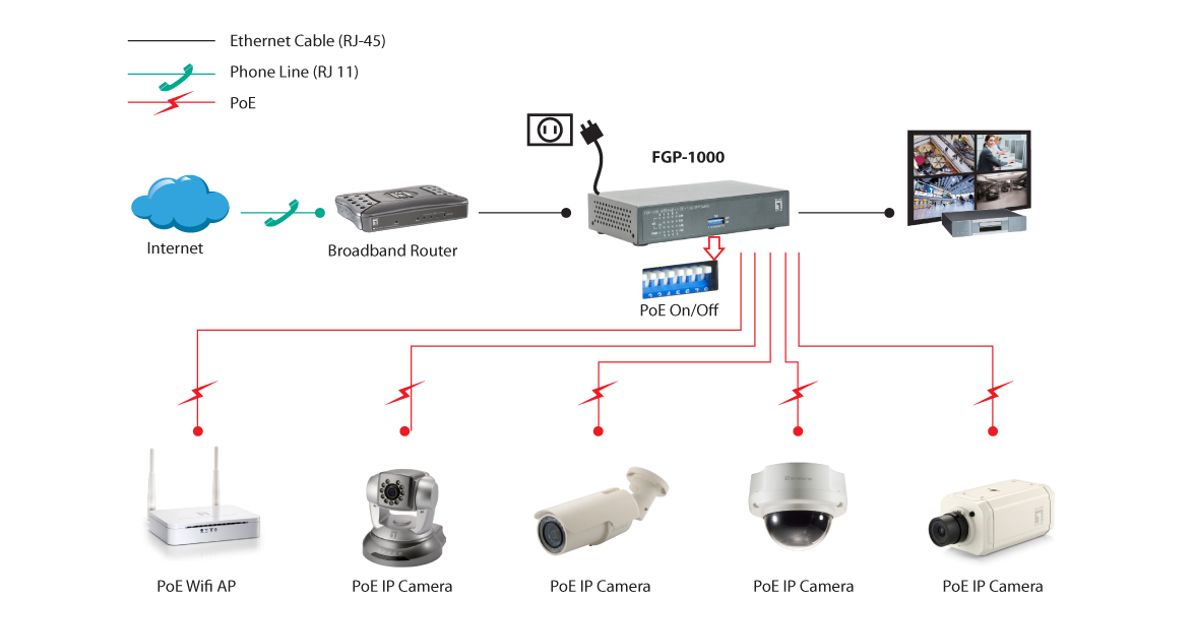

FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 120W, up to 30W per port
- Simple Plug and Play installation
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port by dip switches
- Total PoE power budget: 120W, up to 30W per port
- Simple Plug and Play installation
