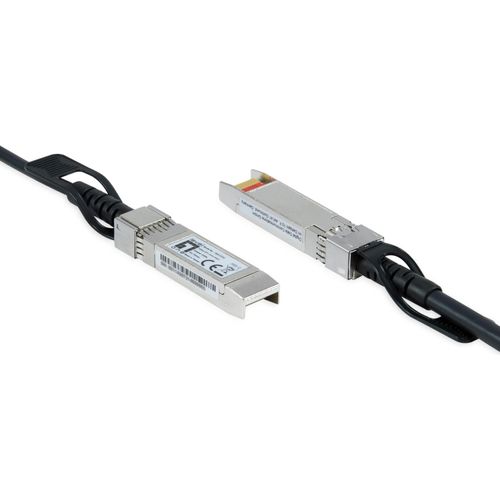

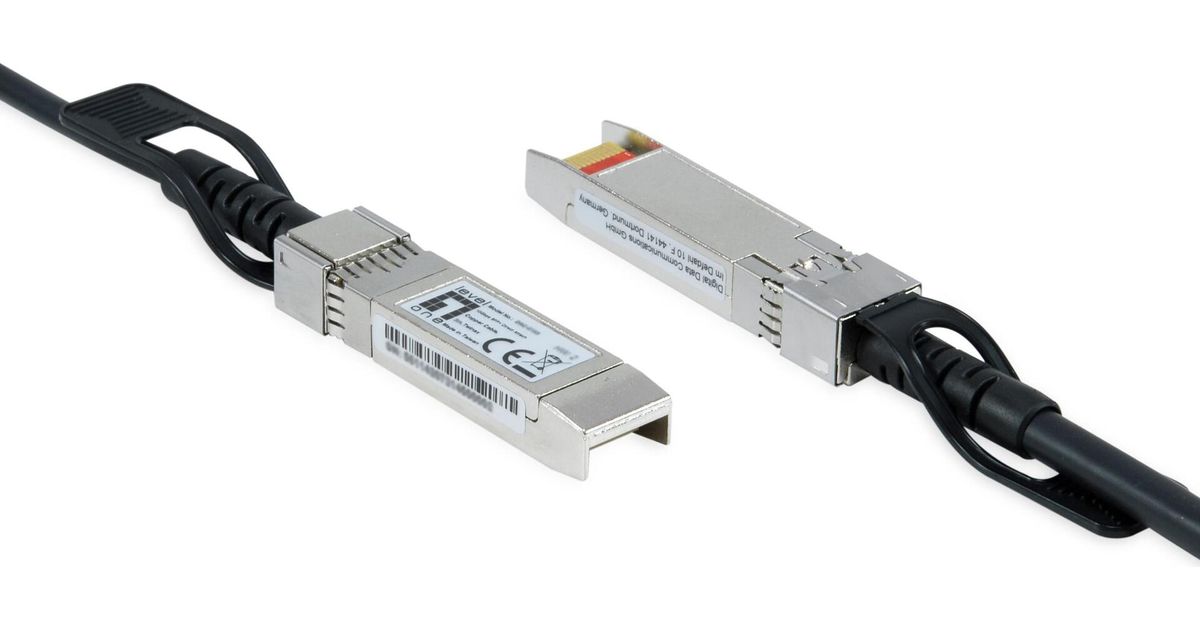

LevelOne 10Gbps SFP+ Direct Attach Copper Cable, 2m, Twinax
LevelOne 10Gbps SFP+ Direct Attach Copper Cable, 2m, Twinax, 2 m, DAC, SFP+, SFP+
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 219294062 |
| EAN | 00846359058862 |
| Manufacturer part number | DAC-0102 |
| Category | Fibre Optic Cables |
| Features | |
|---|---|
| Cable length | 2 m |
| Cable type | DAC |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Data transfer rate | 10 Gbit/s |
| Design | |
|---|---|
| Product colour | Black |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 169.5 cm |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 3.6 kg |
| Products per master (outer) case | 15 pc(s) |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, RoHS |
| Doesn't contain | Lead |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 140 g |
| Package weight | 160 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 280 mm |
| Package depth | 280 mm |
| Package height | 30 mm |
| Package type | Polybag |
Product Description
The LevelOne DAC-0102 passive SFP+ cable assembly is a high-performance, cost-effective I/O solution for 10G Ethernet and 10G Fibre Channel applications. SFP+ copper modules enable high port density, configurability and utilization at a very low cost. Perfectly suited for virtual stack and trunking applications with the switches of the GTL and GTP series or also for connection to a NAS system.
The DAC-0102 high-speed cable assemblies meet and exceed the industry standard performance and reliability requirements of Gigabit Ethernet and Fiber Channel.
The DAC-0102 high-speed cable assemblies meet and exceed the industry standard performance and reliability requirements of Gigabit Ethernet and Fiber Channel.
