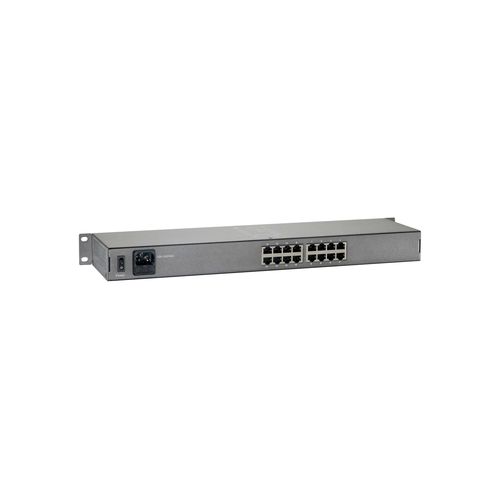

For illustrative purpose only
LevelOne 16-Port Fast Ethernet PoE Switch, 120W
LevelOne 16-Port Fast Ethernet PoE Switch, 120W, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 229093973 |
| EAN | 04015867199848 |
| Manufacturer part number | FEP-1601W120 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC, CE, RoHS |
| Power protection features | Over current |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Grey |
| LED indicators | Activity, PoE, Power |
| On/off switch | Y |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 10 pc(s) |
| Performance | |
|---|---|
| Buffer size | 160 KB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power consumption (typical) | 120 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 112 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 480 mm |
| Depth | 118 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
| Package weight | 400 g |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Y |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 222 mm |
| Package depth | 146 mm |
| Package height | 78 mm |
Product Description
FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports
Key Features
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- PoE on/off control per port by dip switches
- 19-inch metal housing
Key Features
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- PoE on/off control per port by dip switches
- 19-inch metal housing
