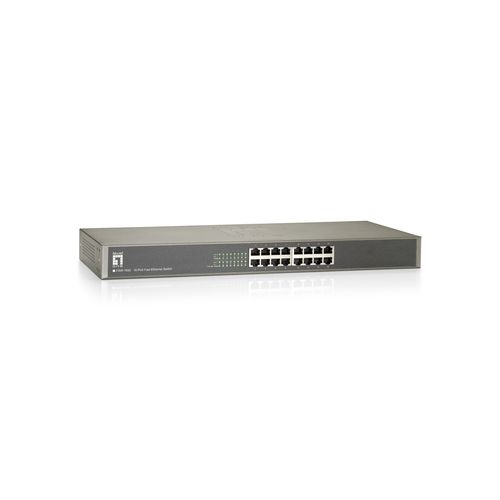

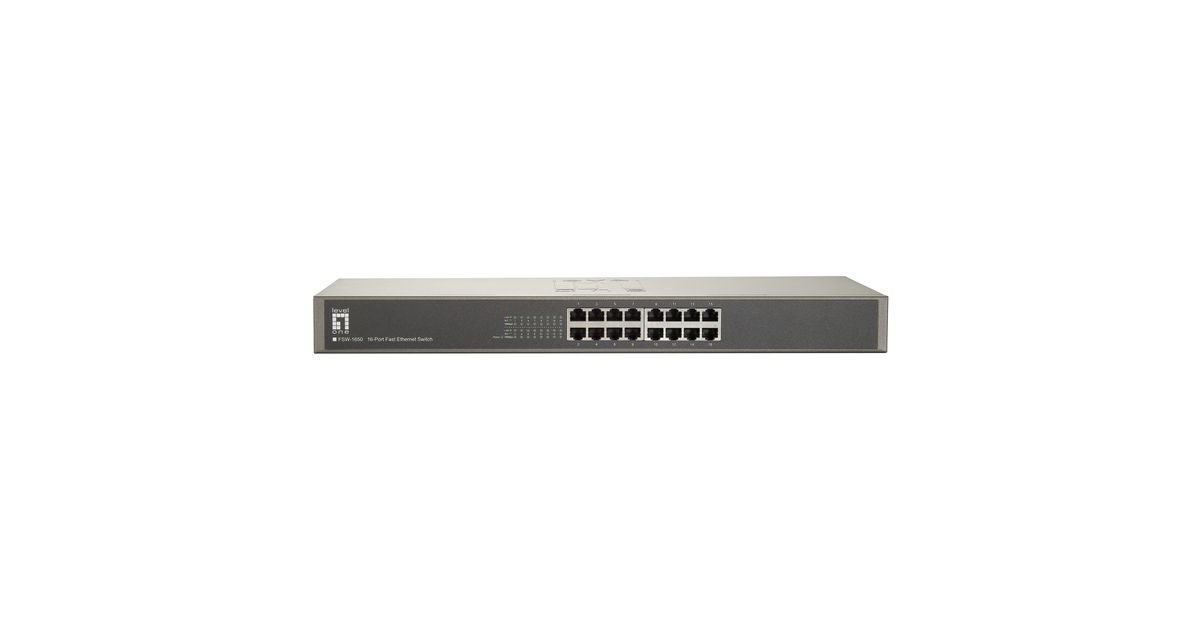

LevelOne 16-Port Fast Ethernet Switch
LevelOne 16-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 07182068 |
| EAN | 05711045652103 |
| Manufacturer part number | FSW-1650 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| Features | |
|---|---|
| Full duplex | Y |
| Certification | CE RoHS |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Y |
| Protocols | |
|---|---|
| Switching protocols | CSMA/CD |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | N |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, Power |
| Logistics data | |
|---|---|
| Country of origin | China |
| Performance | |
|---|---|
| Buffer size | 160 KB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.2 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 44 mm |
| Depth | 208 mm |
| Height | 440 mm |
| Weight | 2.6 kg |
| Package weight | 2.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Wall mounting kit | Y |
| Packaging data | |
|---|---|
| Package width | 308 mm |
| Package depth | 94 mm |
| Package height | 550 mm |
Product Description
Product Overview
The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features
The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.
- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
