LevelOne 24-Port PoE Surge Protector, 6KV, 30W
LevelOne 24-Port PoE Surge Protector, 6KV, 30W, 58 V, 77 V, Black, Metal, Taiwan, 1.2 kg
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 166029511 |
| EAN | 04015867207666 |
| Manufacturer part number | 54045507 |
| Category | Switches & accessories |
| Power | |
|---|---|
| Nominal input voltage | 58 V |
| Clamping voltage | 77 V |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 48 |
| Design | |
|---|---|
| Product colour | Black |
| Rack mounting | Y |
| Features | |
|---|---|
| Material | Metal |
| Harmonized System (HS) code | 85364900 |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 520 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Width | 482 mm |
| Depth | 59 mm |
| Height | 44 mm |
| Package weight | 1.5 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
|---|---|
| Package width | 540 mm |
| Package depth | 130 mm |
| Package height | 95 mm |
| Package type | Box |
Product Description

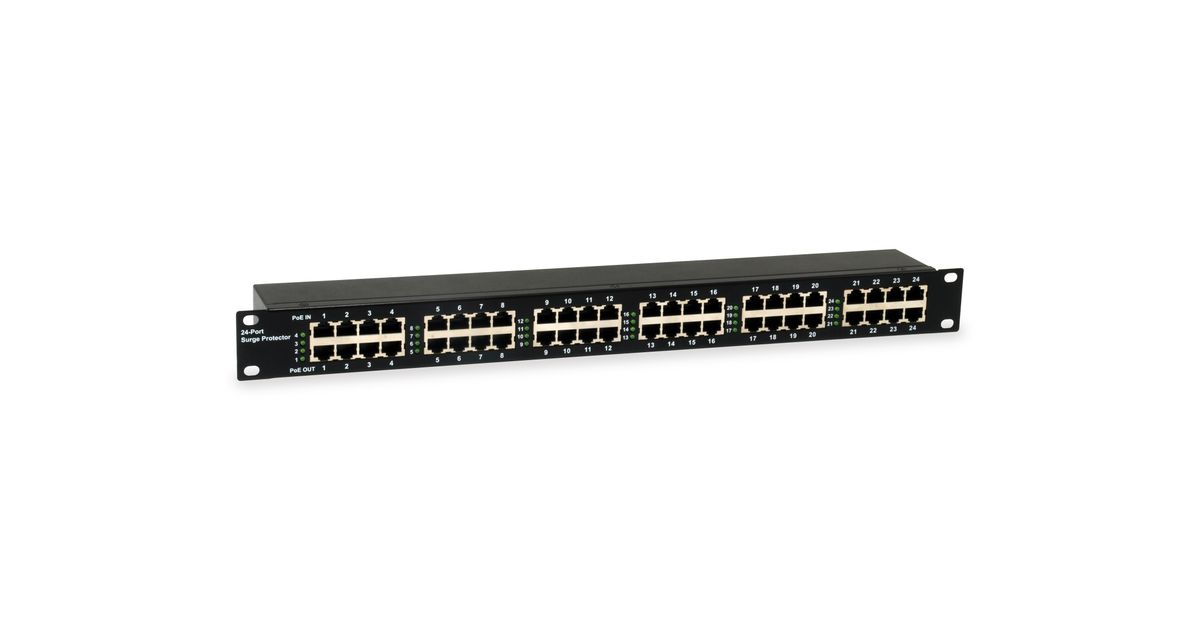

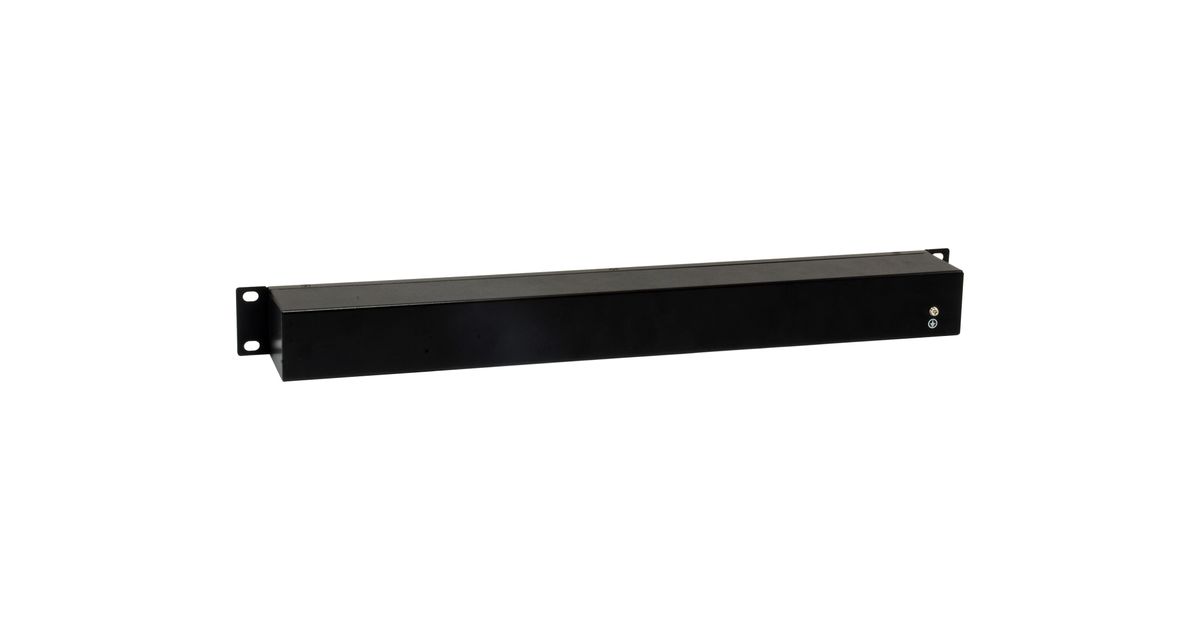

The LevelOne ESP-2400 is an in-line 24 ports RJ45 surge protector rack to support PoE standard IEEE802.3at/af devices connected. It has a total of 48 RJ45 connectors and simply installs in-line on each RJ45Cat5e/6 cable. The in-line installation is a very easy and straight forward. Unit protects up to 24 differentEthernet devices like switches, routers, laptops/PCs, etc from damaging surges caused by lightning orstatic electricity upto 6KV. Moreover, each port is isolated from others and will not fail the entire rack ifsome of ports are damaged which its LED is off.
