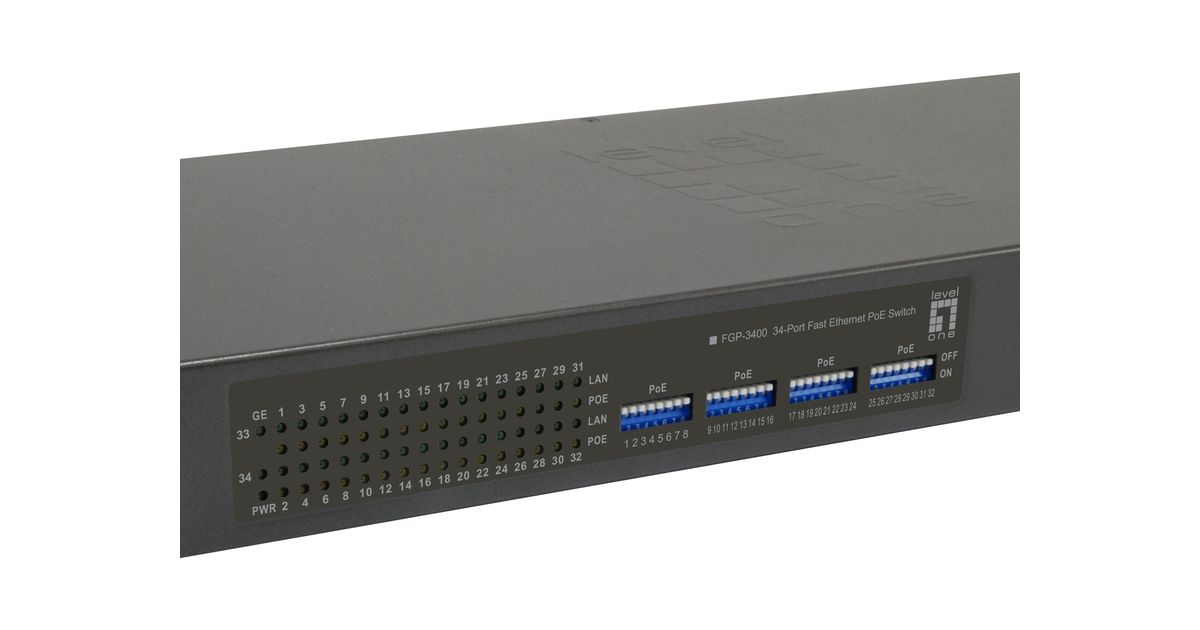

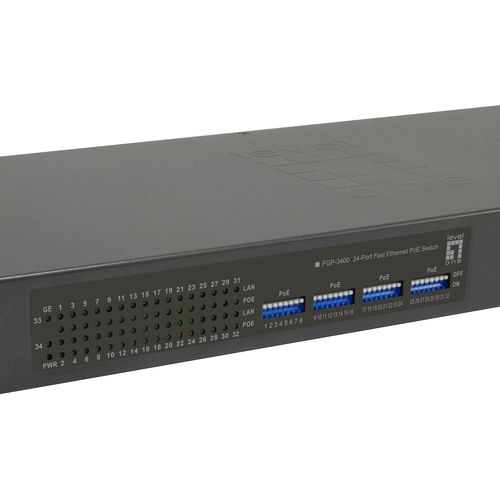

LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 760W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 760W, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting
Read more...
Read more...
| Select | Supplier | Availability | Price | ETA |
|---|---|---|---|---|
| AP | 1 | 1 037.85 € | ~ Mo 24.03 | |
| J1 | 1 | 1 098.31 € | ~ Fr 28.03 | |
| LA | 1 | 1 203.47 € | ~ Fr 28.03 | |
| OV | 1 | 1 209.87 € | ~ Fr 28.03 | |
| E1 | 1 | 1 349.81 € | ~ Fr 28.03 |
Estimated delivery time of the product from selected supplier: ~ Mo 24.03
1 037.85 €
tk
Returns Policy
14-day money back guaranteeFlexible Payment Options
- Payment by invoice or e-invoice possible for individuals, companies and public authorities
- Payment via bank link - Coop, LHV, SEB, Swedbank, Luminor, Citadele
- Credit card payment
Pay later or in installments
Installment calculator
-
MTS Järelmaks
100 € - 10 000 € -
Liisi Järelmaks
10 € - 25 000 € -
Inbank järelmaks
100 € - 10 000 € -
LHV Järelmaks
50 € - 15 000 €
Monthly payment:
31.91 €
All calculations made on the calculator supplied on this site are guidelines only and are subject to confirmation at the time of finalising any transactions.
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16486414 |
| EAN | 04015867203286 |
| Manufacturer part number | FGP-3400W760 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 32 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC Class A, CE |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 10.4 Gbit/s |
| Jumbo frames support | Y |
| Jumbo frames | 16000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 8 MB |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | LAN, PoE, Power, Uplink |
| On/off switch | Y |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 5 pc(s) |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 74000 h |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 760 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 195 mm |
| Depth | 480 mm |
| Height | 45 mm |
| Weight | 3.1 kg |
| Package weight | 3.6 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Package type | Box |
| Rubber feet | Y |
| Package width | 255 mm |
| Package depth | 534 mm |
| Package height | 95 mm |
Product Description
The LevelOne FGP-3400 series are unmanaged PoE switches with 32 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 250/380/500/630/760W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-3400 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.
