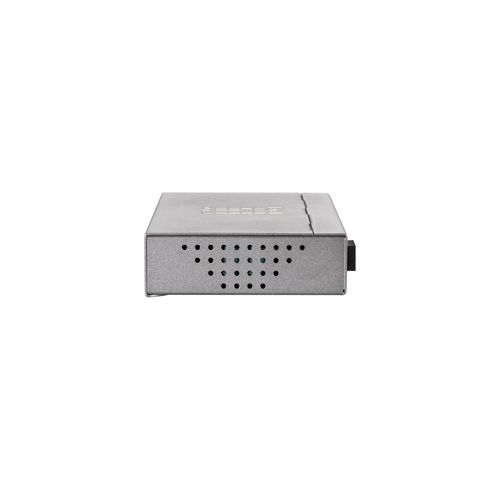

For illustrative purpose only

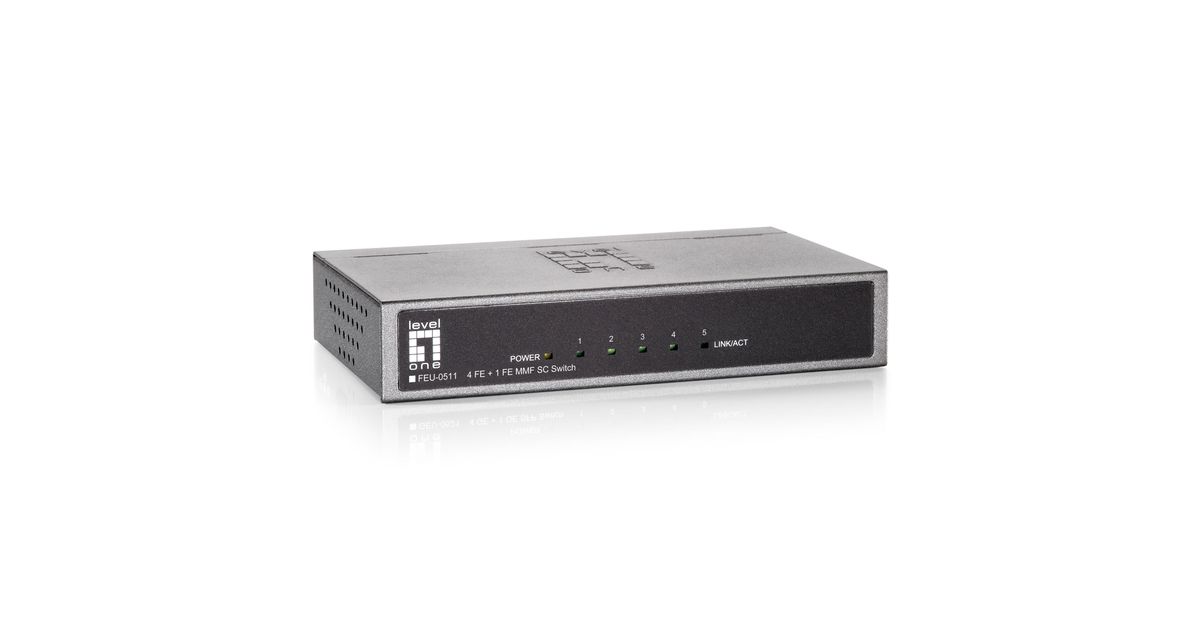

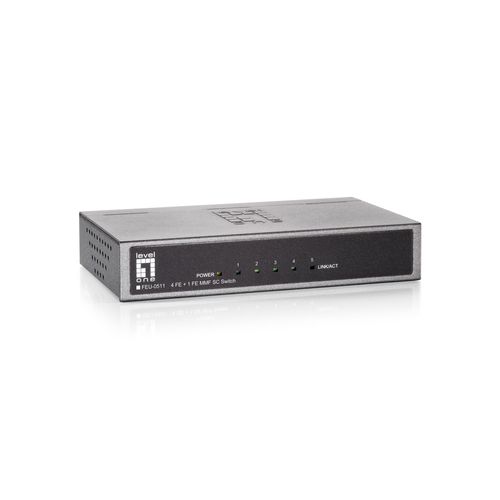

LevelOne 5-Port Fast Ethernet Switch, 1 x SC Multi-Mode Fiber
LevelOne 5-Port Fast Ethernet Switch, 1 x SC Multi-Mode Fiber, Fast Ethernet (10/100), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16485659 |
| EAN | 05050914832063 |
| Manufacturer part number | FEU-0511 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fiber ports quantity | 1 |
| Power connector | DC-in jack |
| Optical fiber | |
|---|---|
| Fiber optic connector | SC, ST |
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber type | Multi-mode |
| Transmission distance (max) | 2 km |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Cable types supported | Cat5 |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Certification | FCC Class B, CE |
| Maximum data transfer rate | 200 Mbit/s |
| Plug and Play | Y |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Y |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | N |
| Product colour | Black, Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Performance | |
|---|---|
| Buffer size | 384 KB |
| Power | |
|---|---|
| Output voltage | 5 V |
| Output current | 2.5 A |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 96 mm |
| Depth | 112 mm |
| Height | 30 mm |
| Weight | 380 g |
| Package weight | 540 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Rubber feet | Y |
| Package width | 140 mm |
| Package depth | 250 mm |
| Package height | 55 mm |
Product Description
LevelOne FEU-0511 is 4-port 10/100Mbps + 1 100BaseFX Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SMB users with limited space. It is a superb choice for expanding your network.
1-Port 100BaseFX (Multi-Mode, SC Connector)

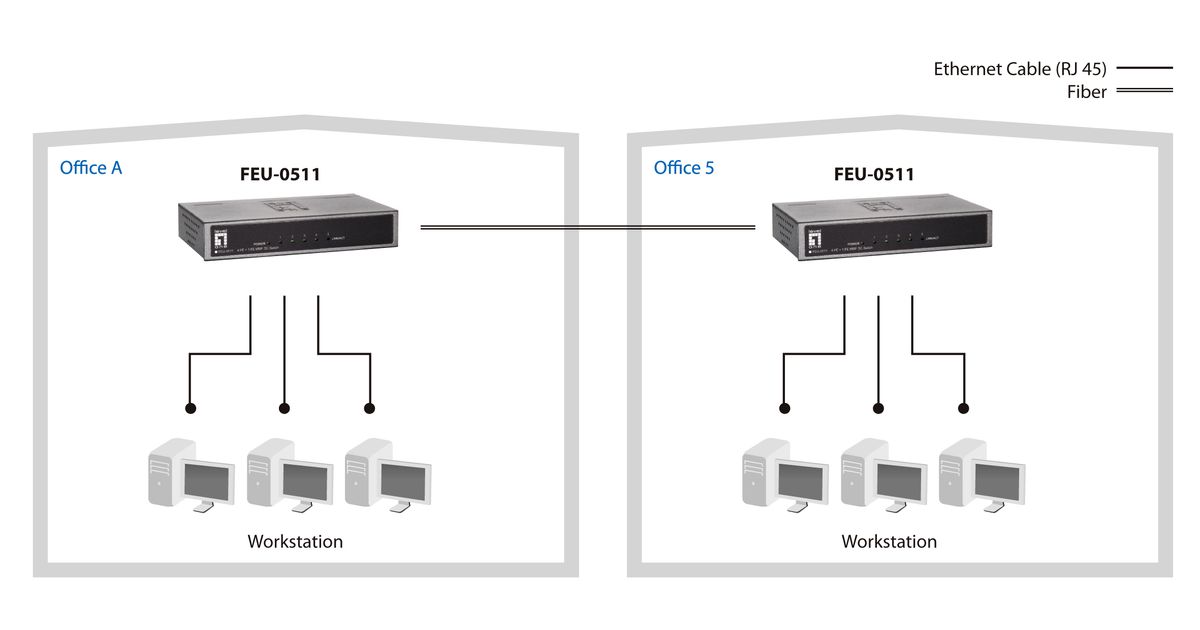

The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
1-Port 100BaseFX (Multi-Mode, SC Connector)
The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
