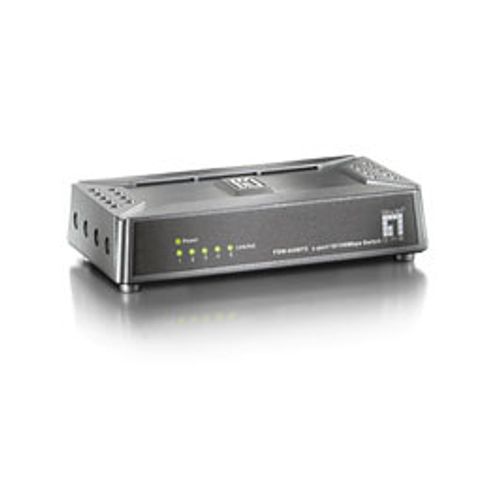

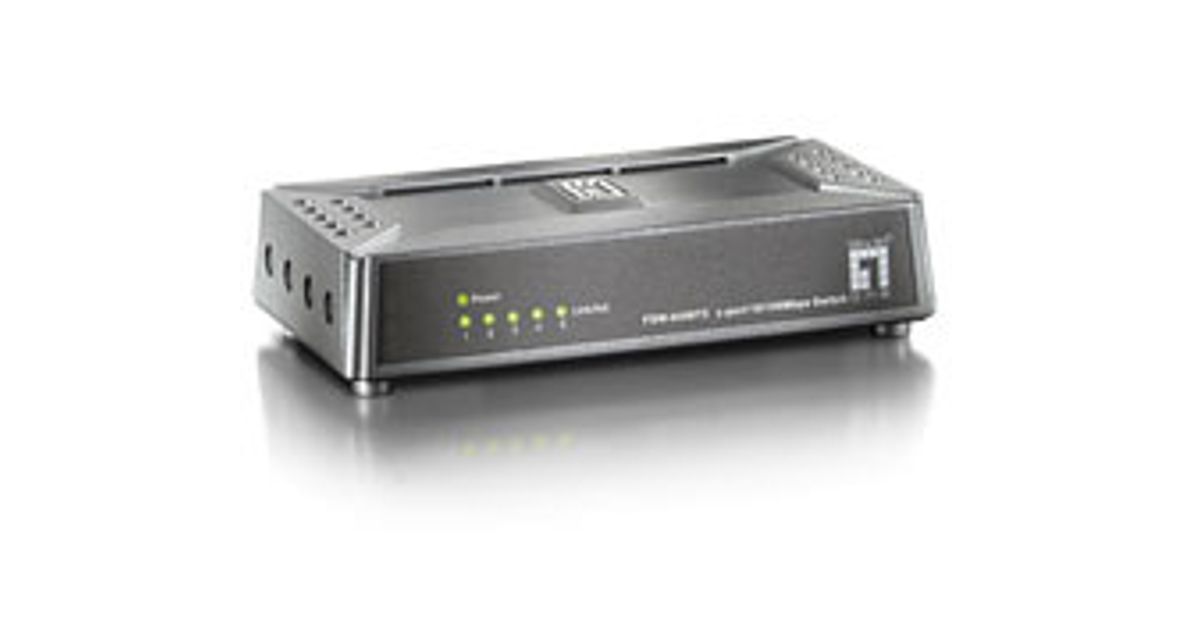

LevelOne 5-Port Fast Ethernet Switch
LevelOne 5-Port Fast Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 221591381 |
| EAN | 04015867109533 |
| Manufacturer part number | FSW-0508TX |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

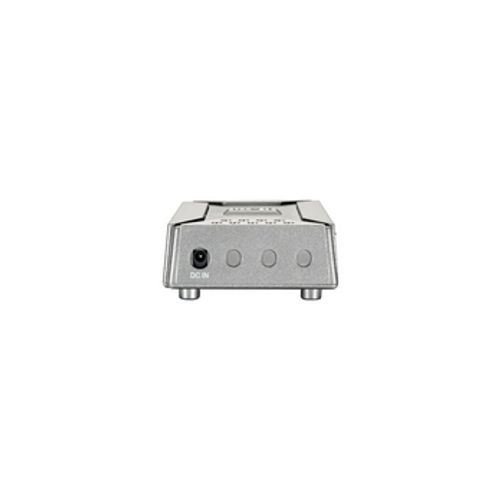

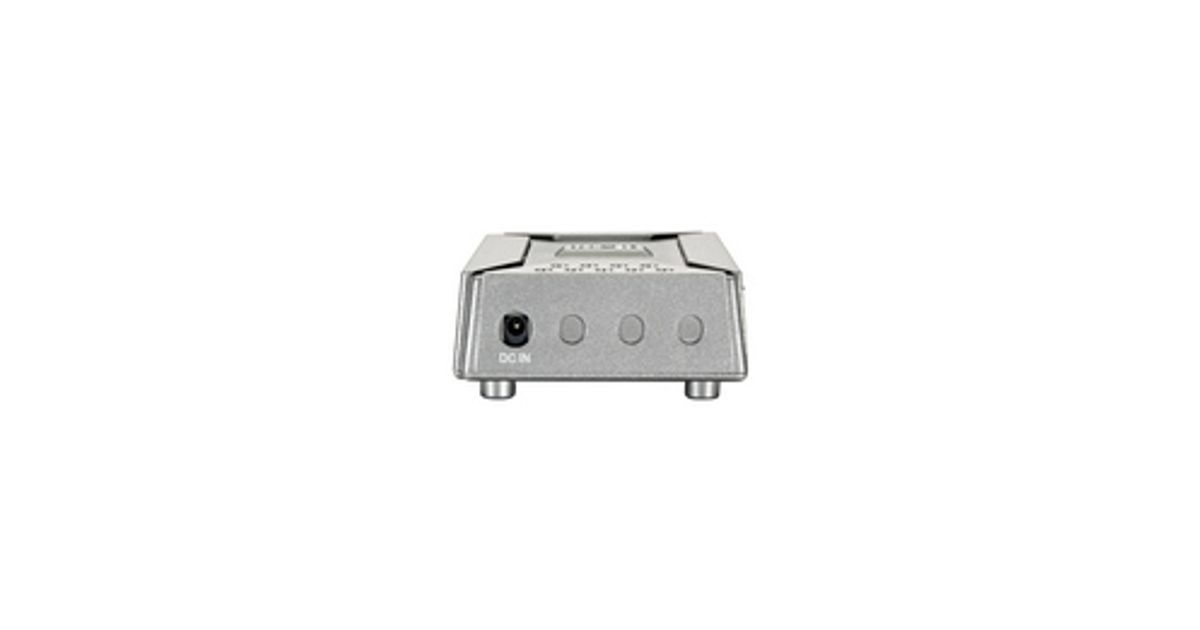

| Power connector | DC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC, CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Y |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | N |
| Product colour | Black, Grey |

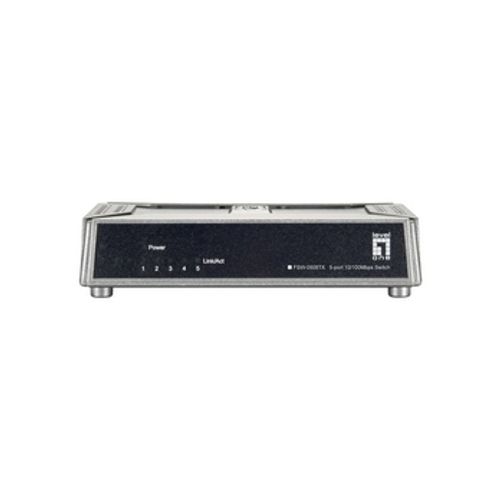

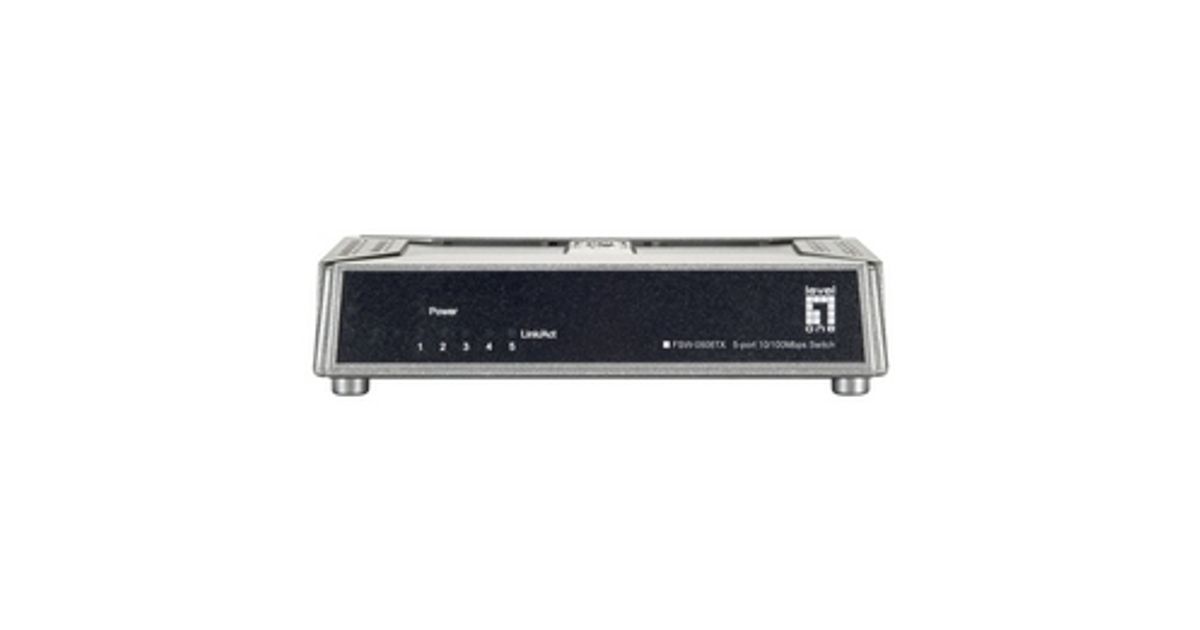

| LED indicators | Activity, Link, Power |
| Logistics data | |
|---|---|
| Country of origin | China |
| Performance | |
|---|---|
| Buffer size | 48 KB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 2.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 69 mm |
| Height | 30 mm |
| Package weight | 400 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Package width | 120 mm |
| Package depth | 100 mm |
| Package height | 156 mm |
Product Description
LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.

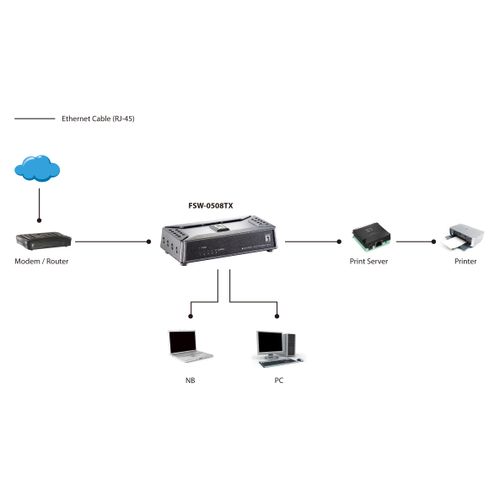

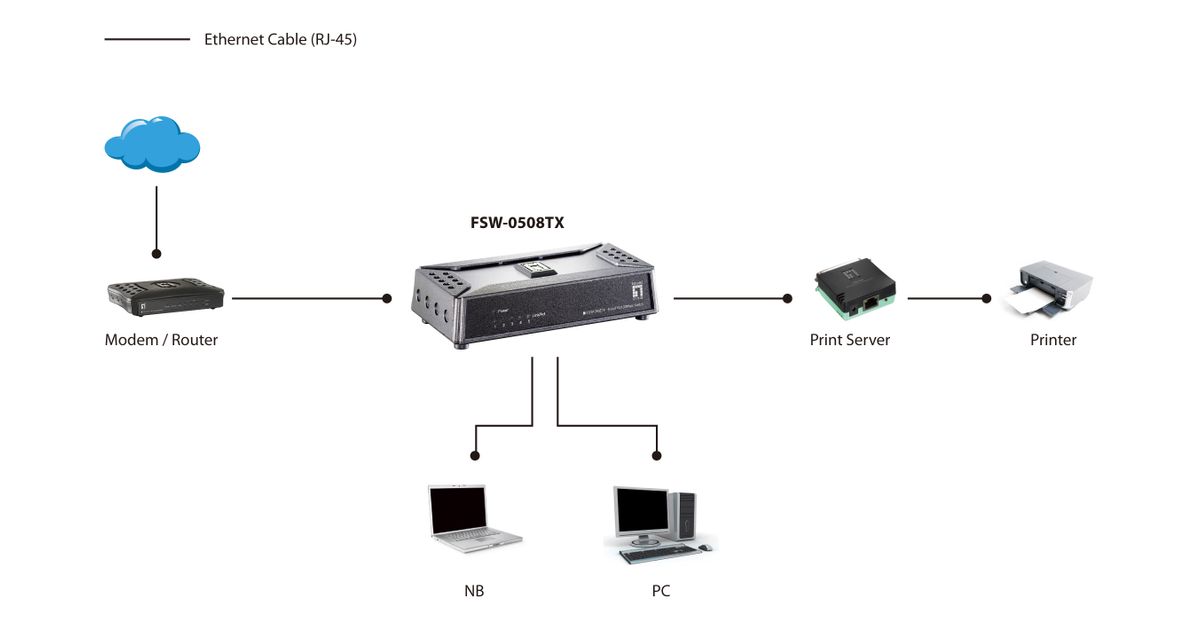

Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.
Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.

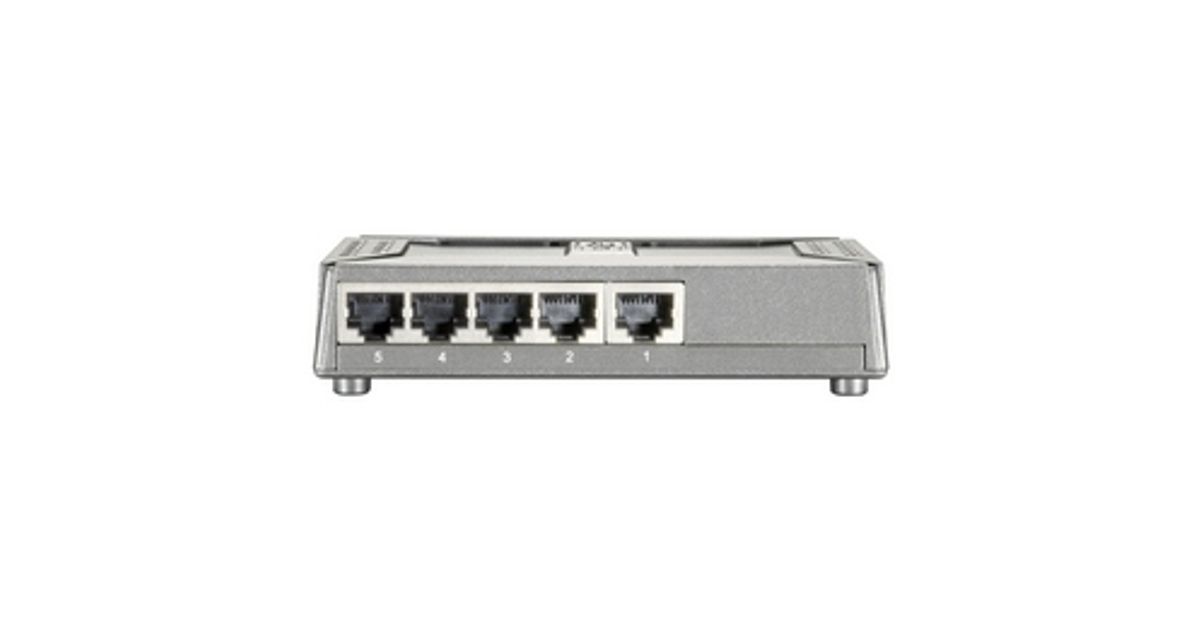

- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

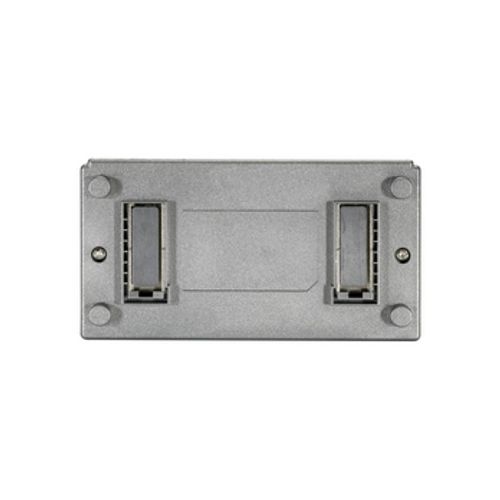

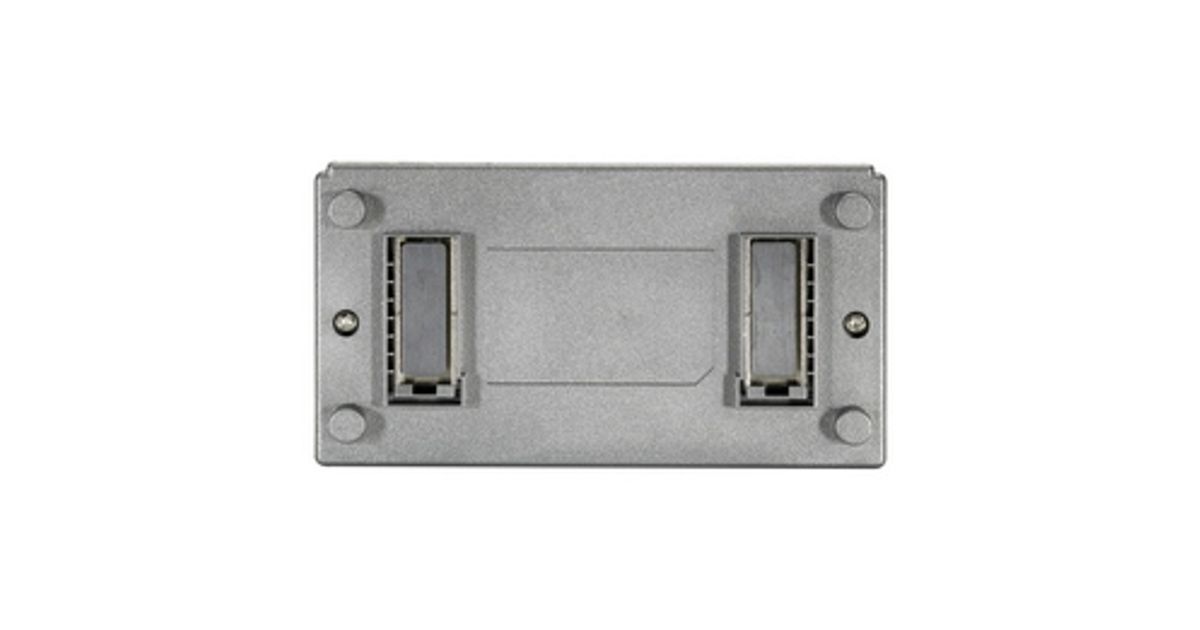

- Magnetic base for easy placement
- Compact, lightweight design
