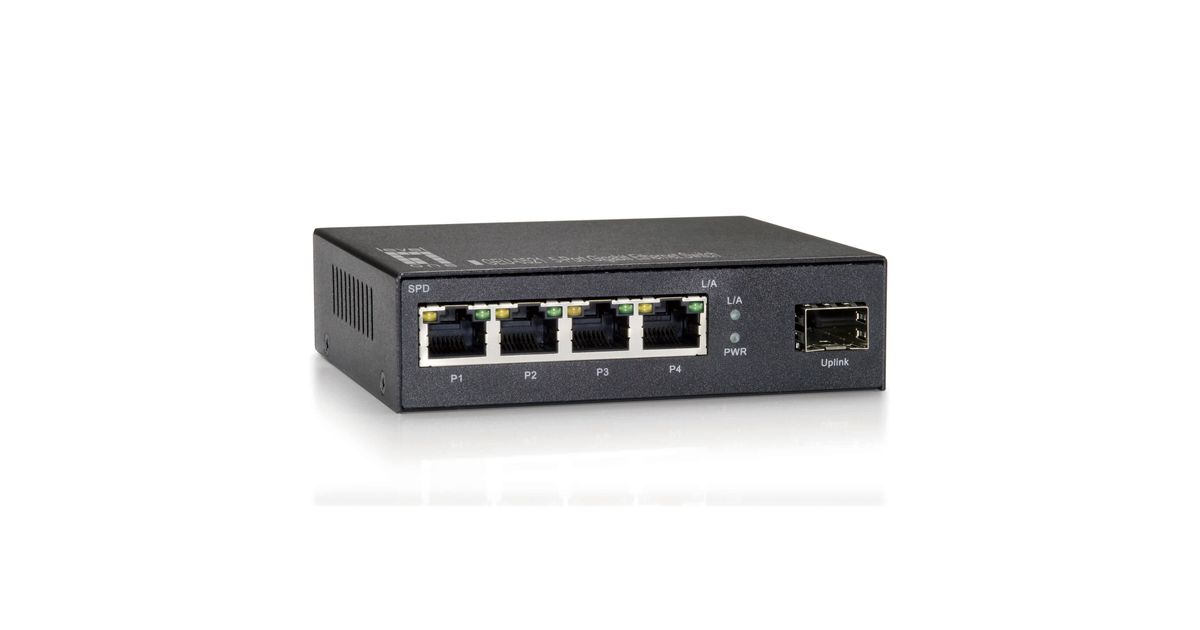

For illustrative purpose only
LevelOne 5-Port Gigabit Switch, 1 x SFP
LevelOne 5-Port Gigabit Switch, 1 x SFP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16485658 |
| EAN | 04015867173480 |
| Manufacturer part number | GEU-0521 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Transmission distance (max) | 0.55 km |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Wall mountable | Y |
| Certification | FCC Class B, CE |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 10000 Gbit/s |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1 MB |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Logistics data | |
|---|---|
| Country of origin | China |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 96 mm |
| Depth | 112 mm |
| Height | 30 mm |
| Weight | 380 g |
| Package weight | 540 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Rubber feet | Y |
| Package width | 140 mm |
| Package depth | 250 mm |
| Package height | 55 mm |
Product Description
GEU-0521 is designed to make conversion between 10/100/1000Base-T and 1000Base-SX/LX Fiber Ethernet. The overall network flexibility is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.
Providing 10Gbps internal switching fabric, the GEU-0521 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GEU-0521 provides 4K MAC address table, 9K bytes JUMBO Frame, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Providing 10Gbps internal switching fabric, the GEU-0521 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GEU-0521 provides 4K MAC address table, 9K bytes JUMBO Frame, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
