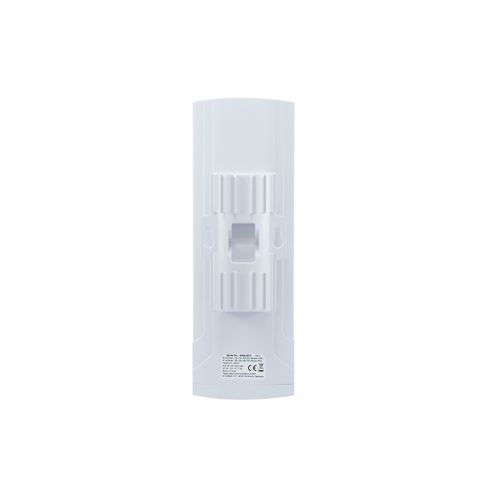

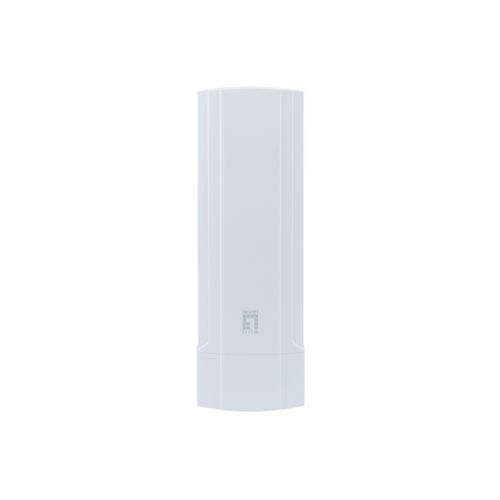

LevelOne AC900 5GHz Outdoor PoE Wireless Access Point
LevelOne AC900 5GHz Outdoor PoE Wireless Access Point, 867 Mbit/s, 10,100,1000 Mbit/s, 4.92 - 5.92 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, 10/100/1000Base-T(X), 165 channels
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 216001045 |
| EAN | 00846359055816 |
| Manufacturer part number | WAB-8010 |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | N |
| 5 GHz | Y |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| Maximum outdoor range | 5000 m |
| Placement | Pole |
| Antenna type | Internal |
| Antenna gain level (max) | 14 dBi |
| Built-in processor | Y |
| Harmonized System (HS) code | 85176990 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | WEP, WPA, WPA2 |
| Mouse | |
|---|---|
| Frequency band | 4.92 - 5.92 GHz |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Antennas quantity | 1 |
| Internal memory | 128 MB |
| Quick start guide | Y |
| GPS Performance | |
|---|---|
| Channels quantity | 165 channels |
| Management features | |
|---|---|
| MIMO | Y |
| Security | |
|---|---|
| Number of SSID supported | 4 |
| Ports & interfaces | |
|---|---|

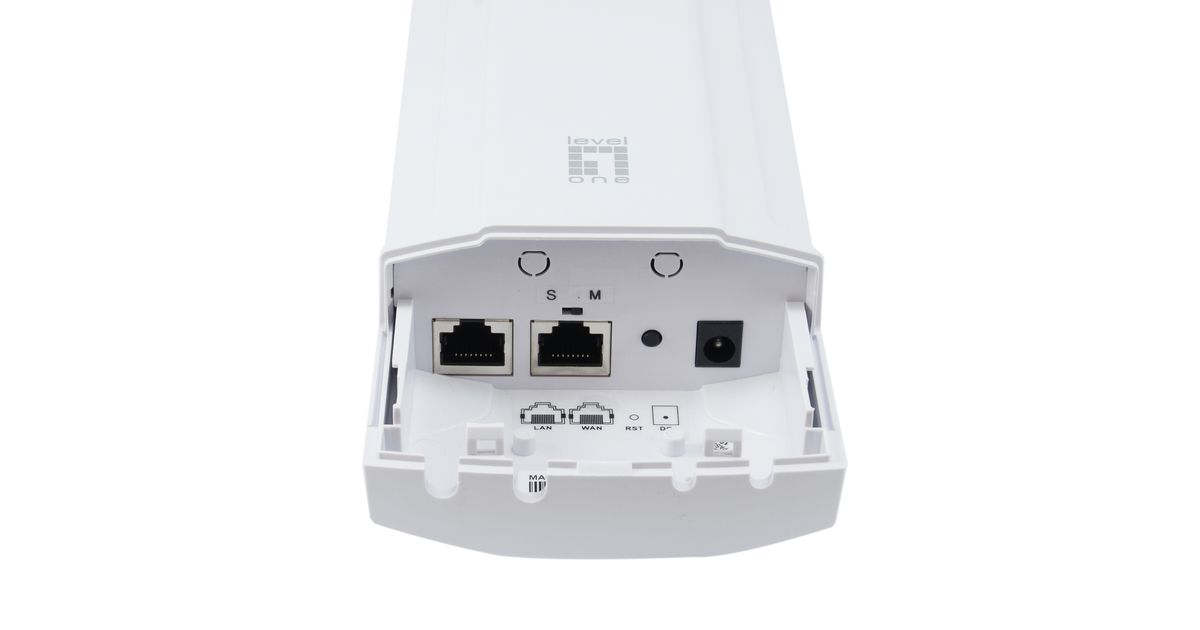

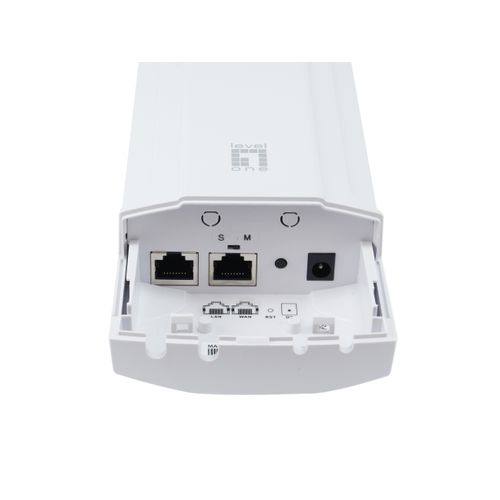

| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Design | |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP65 |
| LED indicators | LAN, System, WAN |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Pallet net height | 164 cm |
| Pallet net depth | 80 cm |
| Pallet net width | 120 cm |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 455 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 20 pc(s) |
| Processor | |
|---|---|
| Processor manufacturer | Qualcomm |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| Memory | |
|---|---|
| Internal memory type | DDR2 |
| Weight & dimensions | |
|---|---|
| Width | 87 mm |
| Depth | 257 mm |
| Height | 45 mm |
| Weight | 440 g |
| Package weight | 660 g |
| Packaging data | |
|---|---|
| Package width | 106 mm |
| Package depth | 332 mm |
| Package height | 95 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Mounting kit | Y |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
Product Description
The LevelOne WAB-8010 outdoor single-band 802.11ac wireless access point, capable of 867 Mbps wireless internet speeds and distance of up to 5km. Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently.
The device runs on 5 GHz frequency, also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAB-8010 is designed for outdoor deployments, and can withstand rain, humidity, dust and snow. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
