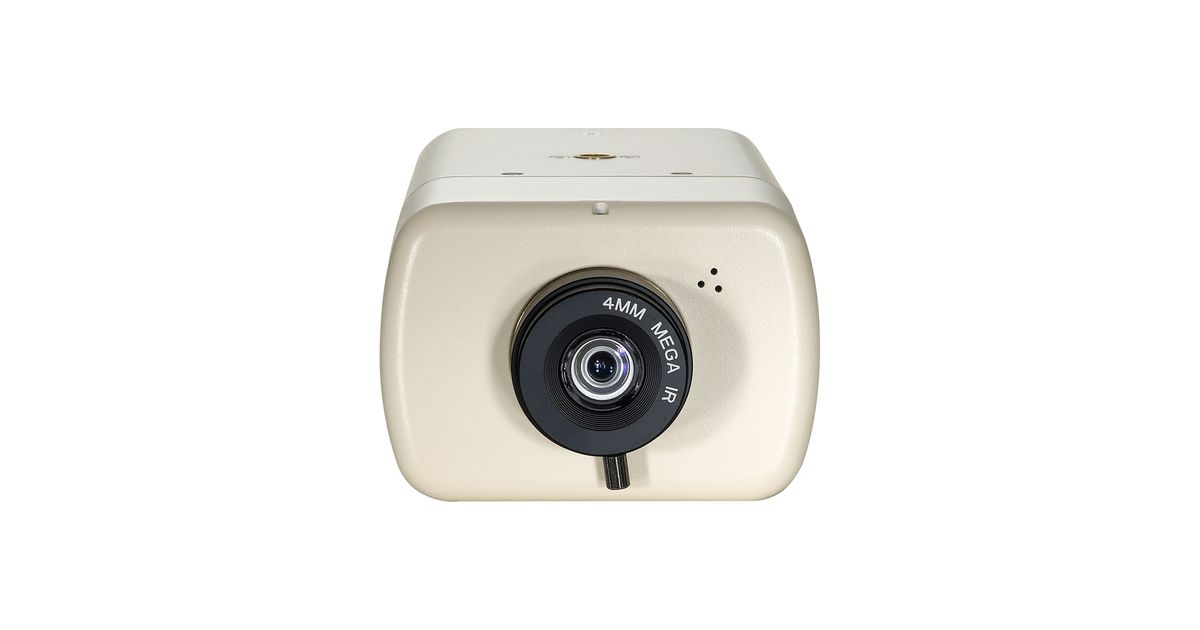

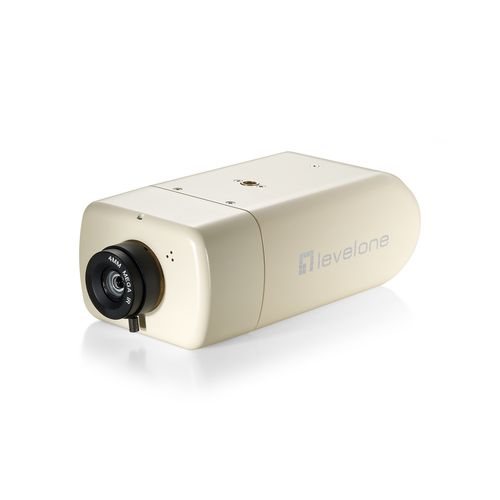

LevelOne Fixed Network Camera, 2-Megapixel, 802.3af PoE, Day & Night
LevelOne Fixed Network Camera, 2-Megapixel, 802.3af PoE, Day & Night, IP security camera, Wired, CE, FCC, ONVIF, Ceiling/wall, Beige, Box
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16487593 |
| EAN | 04015867158005 |
| Manufacturer part number | 571009 |
| Category | Webcams and accessories |
| Features | |
|---|---|
| Type | IP security camera |
| Certification | CE, FCC, ONVIF |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Harmonized System (HS) code | 85258900 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| PTZ control | Y |
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Alarm input/output | Y |
| Infrared (IR) cut-off filter | Y |
| Full HD | Y |
| Power source type | PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/wall |
| Design | |
|---|---|
| Product colour | Beige |
| Form factor | Box |
| LED indicators | Activity, Link, Power |
| Reset button | Y |
| Camera | |
|---|---|
| Minimum illumination | 0.02 lx |
| Lens viewing angle, horizontal | 65.4° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1 - 1/10000 s |
| Zoom capability | Y |
| Digital zoom | 8x |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Y |
| Lens system | |
|---|---|
| Focus adjustment | 1.5 |
| Fixed focal length | 4 mm |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| 3D NR (Noise Reduction) | Y |
| Automatic gain control | Y |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Y |
| Portrait mode | Y |
| Privacy masking | Y |
| Time stamp overlay | Y |
| Text caption overlay | Y |
| Media formats | |
|---|---|
| Video formats supported | AVI |
| Video compression formats | H.264, M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Audio system | 2-way |
| Built-in microphone | N |
| Voice codecs | G.711, G.726 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Ethernet interface type | Fast Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Password protection type | User |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC output ports | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| Terminal block port | Y |
| DC-in jack | Y |
| Interface | RJ-45 |
| Security | |
|---|---|
| IP address filtering | Y |
| HTTPS encryption | Y |
| Motion sensor | Y |
| Power | |
|---|---|
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 53 mm |
| Height | 82 mm |
| Weight | 380 g |
| Package weight | 900 g |
| Packaging data | |
|---|---|
| Package width | 200 mm |
| Package depth | 120 mm |
| Package height | 220 mm |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Manual | Y |
| AC adapter included | Y |
| Other information | |
|---|---|
| Iris | Y |
| Back light compensation method | Y |
| Number of video streams | 2 |
Product Description
The LevelOne FCS-1131 is a 2-Megapixel PoE Network Camera enabling resolution up to 1920x1080 with H.264/MJPEG video compression. It simultaneously supports 4 individual video stream for consistent quality viewing. Featuring 3DNR (3-Dimension Noise Reduction) and WDR (Wide Dynamic Range) technology, the LevelOne FCS-1131 maintains the highest image quality for high security required projects such as airport, bank and casino. The FCS-1131 is also equipped with a BNC connector for camera to be connected directly to an analog monitor. Together with removable IR-cut filter, a built-in Micro SD/SDHC card, privacy masks and 10 motion detection zones, the FCS-1131 is indisputably the top choice for reliable and high performance surveillance.
- 2-Megapixel (1920 x 1080) high-definition resolution
- Compression: H.264/MJPEG
- Supports 4 video streams simultaneously
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Features 3DNR (3-Dimension Noise Reduction) to produce extremely clear picture quality even under low light condition
- Removable IR-cut filter for day and night surveillance
- Provides privacy masks for private area protection
- Built-in Micro SD/SDHC card slot for local storage
- Digital input/output (1DI/1DO) for sensor and alarm
- BNC connector for analog video output
- Dual power support: 12VDC/PoE (IEEE 802.3af)
- Free 64-channel monitoring software included (supports iCamSecure App)
Exceptional Image Quality
With built-in 3DNR (3–Dimension Noise Reduction) and WDR (Wide Dynamic Range) technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.
- 2-Megapixel (1920 x 1080) high-definition resolution
- Compression: H.264/MJPEG
- Supports 4 video streams simultaneously
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Features 3DNR (3-Dimension Noise Reduction) to produce extremely clear picture quality even under low light condition
- Removable IR-cut filter for day and night surveillance
- Provides privacy masks for private area protection
- Built-in Micro SD/SDHC card slot for local storage
- Digital input/output (1DI/1DO) for sensor and alarm
- BNC connector for analog video output
- Dual power support: 12VDC/PoE (IEEE 802.3af)
- Free 64-channel monitoring software included (supports iCamSecure App)
Exceptional Image Quality
With built-in 3DNR (3–Dimension Noise Reduction) and WDR (Wide Dynamic Range) technology, the camera is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Free bundled 64-channel Management Software
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free IP CamSecure software coming allows you to monitor up to 64 IP cameras simultaneously on one screen to enhance scalability. For added convenience and flexibility, the software includes various advanced features such as scheduling recording, event alert, and heaps more. In addition, simply install our free iCamSecure App to your smartphone and connect to the PC with IP CamSecure software installed, you will easily turn your iPhone/Android smartphone into a portable surveillance system for real-time monitoring and snapshot.
