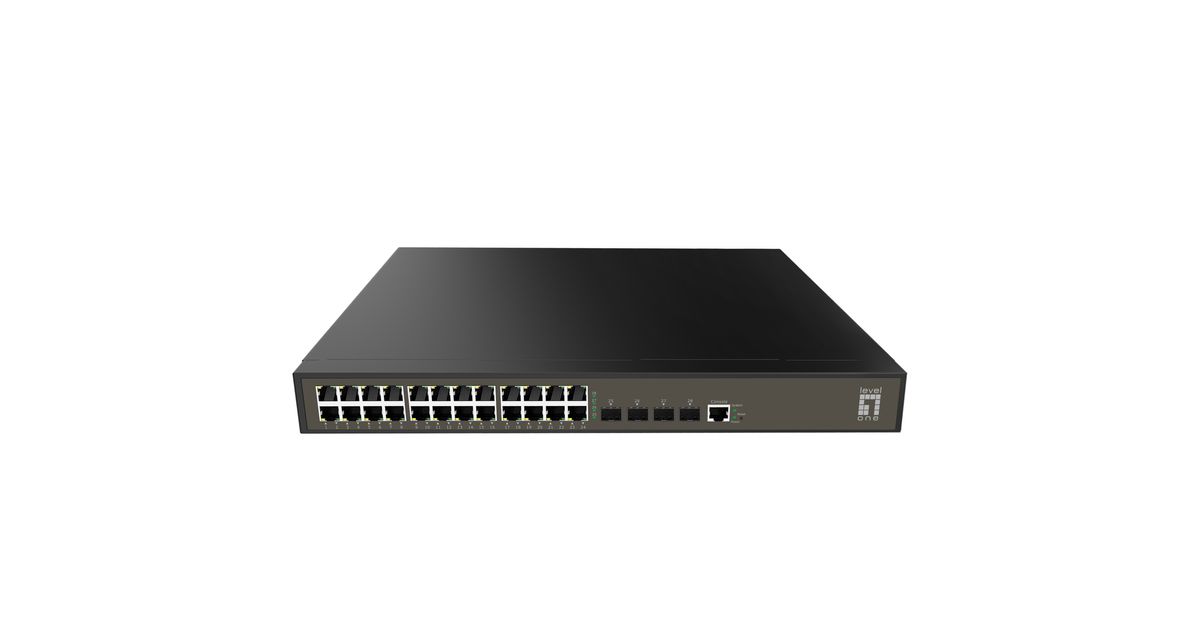

LevelOne GEL-2871 network switch Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black
LevelOne GEL-2871, Managed, L2+, Gigabit Ethernet (10/100/1000), Gigabit Ethernet, Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 217734611 |
| EAN | 04015867228579 |
| Manufacturer part number | GEL-2871 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| ARP inspection | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Power connector | AC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Internal memory | 256 MB |
| Noise level | 45 dB |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Y |
| Policy-based routing | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| QinQ implementation | Flexible QinQ, QinQ, Basic QinQ |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX |
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 1000 Gbit/s |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 10 |
| Packet buffer memory | 12 MB |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| IP-MAC-Port binding | Y |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | RADIUS |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | N |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Rack rails | Y |
| Logistics data | |
|---|---|
| Country of origin | China |
| Features | |
|---|---|
| Certification | FCC Part 15 Subpart B CE Mark EN IEC 62368-1 EN 55032 EN 55035 EN 61000-3-2/3 RoHS |
| Performance | |
|---|---|
| Flash memory | 512 MB |
| Firmware upgradeable | Y |
| Telnet | Y |
| Fanless | N |
| Mean time between failures (MTBF) | 534.057 h |
| Heat dissipation | 136.48 BTU/h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 245 mm |
| Height | 44 mm |
| Weight | 2.77 kg |
| Package weight | 3.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
Product Description
The LevelOne GEL-2871 is an intelligent 28-Port L2 plus managed gigabit switch with 24 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.
The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-2871 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.
An ideal network solution for anyone looking for an affordable and efficient way to expand their network.
