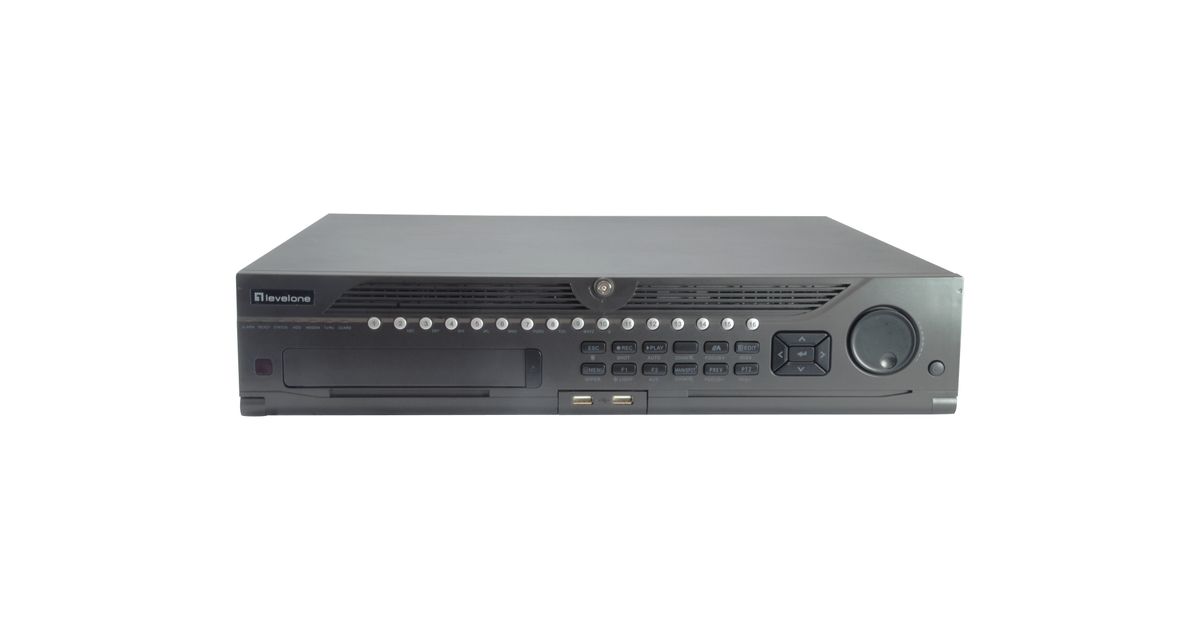

For illustrative purpose only
LevelOne GEMINI 64-Channel Network Video Recorder, RAID, H.265, HDMI, VGA
LevelOne GEMINI 64-Channel Network Video Recorder, RAID, H.265, HDMI, VGA, 64 channels, 3840 x 2160 pixels, 720p, 1080p, 128 user(s), H.264, H.264+, H.265, MPEG4, Embedded LINUX
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16525319 |
| EAN | 04015867206416 |
| Manufacturer part number | 53144003 |
| Category | Routers |
| Performance | |
|---|---|
| Video input channels | 64 channels |
| Alarm input channels | 4 |
| Alarm output channels | 16 |
| Number of users | 128 user(s) |
| PTZ control | Y |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 256 Mbit/s |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Camera | |
|---|---|
| Video recording modes | 720p, 1080p |
| Display | |
|---|---|
| On Screen Display (OSD) | Y |
| Media formats | |
|---|---|
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Software | |
|---|---|
| Operating system installed | Embedded LINUX |
| Network | |
|---|---|
| Wi-Fi | N |
| Hard drive | |
|---|---|
| Maximum storage capacity | 80 TB |
| Storage | |
|---|---|
| Number of HDDs supported | 8 |
| Features | |
|---|---|
| HDD size | 3.5" |
| Certification | CE,FCC,UL |
| Storage controllers | |
|---|---|
| RAID support | Y |
| RAID levels | 0, 1, 5, 10 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA outputs | 2 |
| RS-485 ports | 1 |
| Line-in | Y |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 2 |
| RS-232 interface | Y |
| eSATA | Y |
| Protocols | |
|---|---|
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
| Design | |
|---|---|
| Rack mounting | Y |
| LED indicators | Power |
| On/off switch | Y |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (max) | 200 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 470 mm |
| Depth | 90 mm |
| Height | 445 mm |
| Weight | 10 kg |
| Package weight | 12 kg |
| Packaging data | |
|---|---|
| Package width | 510 mm |
| Package depth | 110 mm |
| Package height | 450 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Cables included | AC |
| CD manual | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 520 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 510 mm |
| Master (outer) case gross weight | 12.7 kg |
| Products per master (outer) case | 1 pc(s) |
Product Description
The LevelOne NVR-0764 NVR enables live view, recording and playback for up to 64 IP network cameras at the same time, featuring up to 12-megapixel resolution and H.264/H.265 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality.
The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 8 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0764 a powerful, smart and cost-effective solution for managing your security network.
Supports dual gigabit LAN ports allowing for concurrent dual-connection, and providing a network backup in case of unscheduled network downtime.
Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.
The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 8 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0764 a powerful, smart and cost-effective solution for managing your security network.
Supports dual gigabit LAN ports allowing for concurrent dual-connection, and providing a network backup in case of unscheduled network downtime.
Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.
