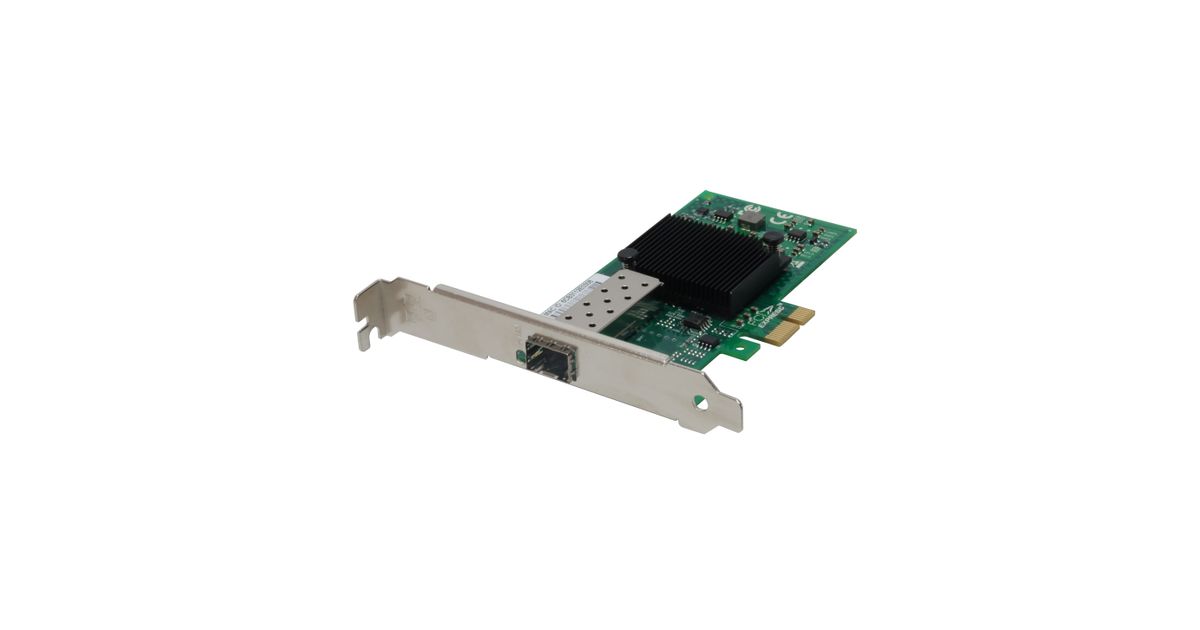

LevelOne Gigabit Fiber PCIe Network Card, 1 x SFP
LevelOne Gigabit Fiber PCIe Network Card, 1 x SFP, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s, Aluminium
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 21816436 |
| EAN | 04015867191057 |
| Manufacturer part number | GNC-0110 |
| Category | Võrgukaardid |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 1 |
| PCI version | 1.1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Full duplex | Y |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Quick start guide | Y |
| Network | |
|---|---|
| Wake-on-LAN ready | Y |
| Performance | |
|---|---|
| Internal | Y |
| Design | |
|---|---|
| Product colour | Aluminium |
| LED indicators | Activity, Link |
| Logistics data | |
|---|---|
| Country of origin | China |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 115 mm |
| Depth | 68 mm |
| Height | 17 mm |
| Weight | 70 g |
| Package weight | 62 g |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Mounting brackets included | Y |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
The LevelOne GNC-0110 Gigabit network card facilitates high-speed connectivity within a fiber-optic network, with PCI Express supporting speeds of up to 2 Gbps in full-duplex mode. Wake-on-LAN functionality allows remote start-up and shutdown. Interrupt Moderation:Delivers increased performance while significantly reducing CPU utilization. The network card supports 32 bit PCI 1.0 and PCI 2.2 bus, as well as supporting multiple operating systems. IEEE 802.1Q VLAN allows network segmentation, further enhancing performance and security.
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- High-speed gigabit network card with PCI Express v1.1 compliant
- IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
- Supports most network operating systems (NOS)
