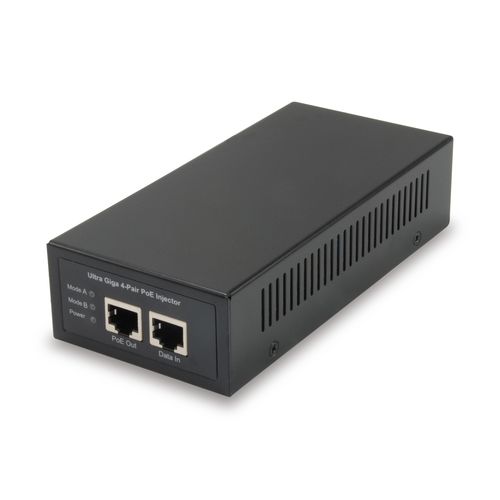

LevelOne Gigabit PoE Injector, 60W, 802.3at/af PoE
LevelOne Gigabit PoE Injector, 60W, 802.3at/af PoE, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Black, Power, RoHS
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16490747 |
| EAN | 04015867199466 |
| Manufacturer part number | POI-5001 |
| Category | PoE |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Power |
| Features | |
|---|---|
| Certification | RoHS |
| Output power | 60 W |
| Input voltage | 56 V |
| Harmonized System (HS) code | 85044090 |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 580 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 277 mm |
| Master (outer) case gross weight | 33 kg |
| Products per master (outer) case | 40 pc(s) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| Power consumption (typical) | 2 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 71 mm |
| Height | 37 mm |
| Weight | 530 g |
| Package weight | 800 g |
| Packaging data | |
|---|---|
| Package width | 210 mm |
| Package depth | 125 mm |
| Package height | 60 mm |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Packaging content | |
|---|---|
| Power cord included | Y |
Product Description
POI-5001 is a single port, high-power 60W PoE PSE solution for remote PoE PD devices. Generating up to 60W through 8 pins, POI-5001 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, lighting, panel display for digital signage and video-phones. It complies to IEEE 802.3bt PoE++ standards to deliver 60W on both end-point and midspan pairs with a total power of 60W PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.
Key Features
- PoE supplies up to 60W of power feeding on 4 pairs
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
Key Features
- PoE supplies up to 60W of power feeding on 4 pairs
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
