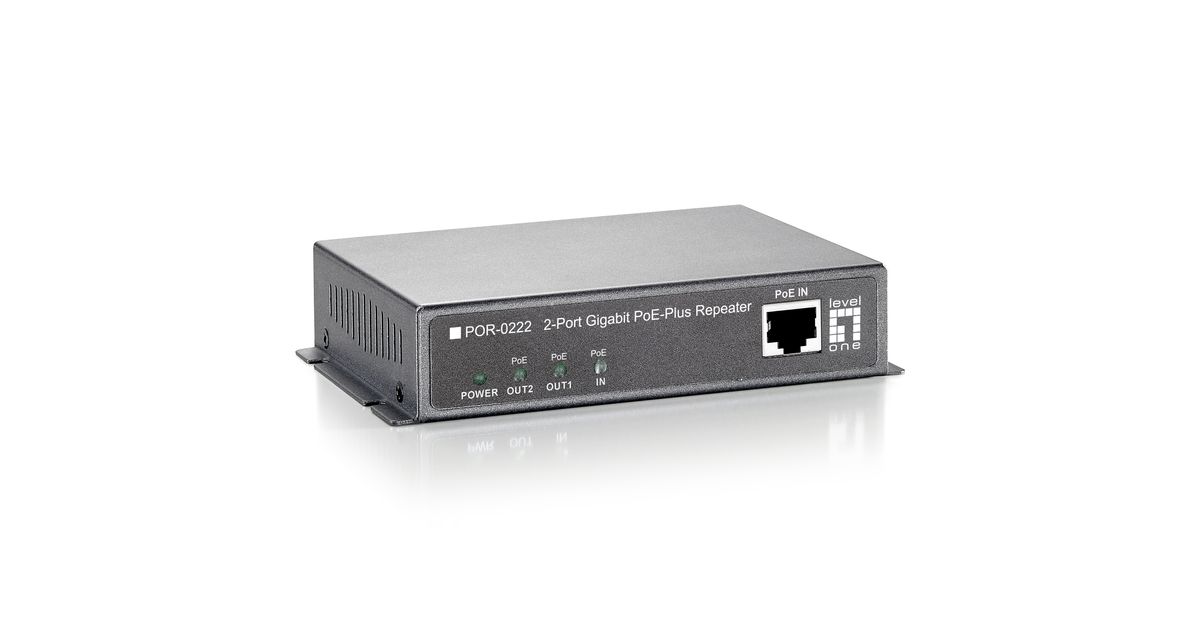

LevelOne Gigabit PoE Repeater, Cascadable, 2 PoE Outputs
LevelOne Gigabit PoE Repeater, Cascadable, 2 PoE Outputs, Network repeater, 100 m, 1000 Mbit/s, 10/100/1000Base-T(X), IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16488310 |
| EAN | 04015867185629 |
| Manufacturer part number | 552050 |
| Category | WLAN Repeaters |
| Features | |
|---|---|
| Type | Network repeater |
| Data transfer rate | 1000 Mbit/s |
| Certification | FCC Part 15, CE |
| Harmonized System (HS) code | 85176990 |
| Performance | |
|---|---|
| Maximum transfer distance | 100 m |
| Network | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) ports quantity | 3 |
| Power over Ethernet (PoE) | Y |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | PoE, Power |
| Mounting | |
|---|---|
| Mounting type | Wall |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Power | |
|---|---|
| Power consumption (max) | 2.5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 130 mm |
| Depth | 90 mm |
| Height | 28 mm |
| Weight | 400 g |
| Package weight | 600 g |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Packaging data | |
|---|---|
| Package width | 146 mm |
| Package depth | 222 mm |
| Package height | 78 mm |
Product Description
Extend the reach of your Gigabit PoE-Plus devices
For system integrators looking for a professional solution to help extend their Gigabit PoE (802.3af/at) network, POR-0222 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.
Normal cable runs only reach 100 meters, but with POR-0222 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable, no software required

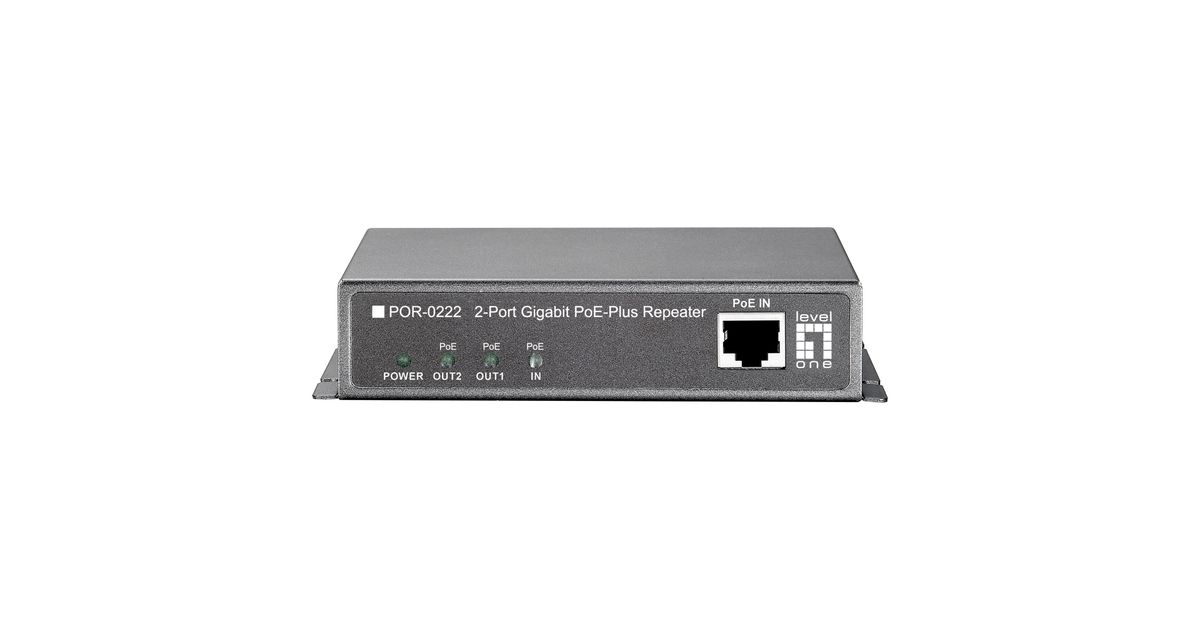

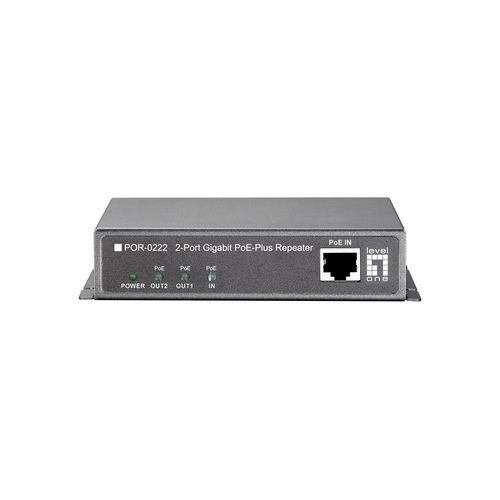

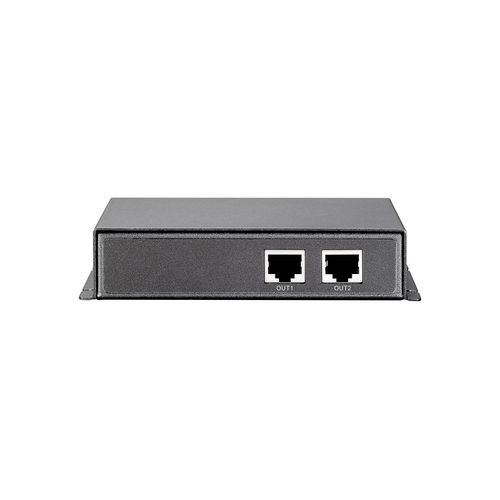

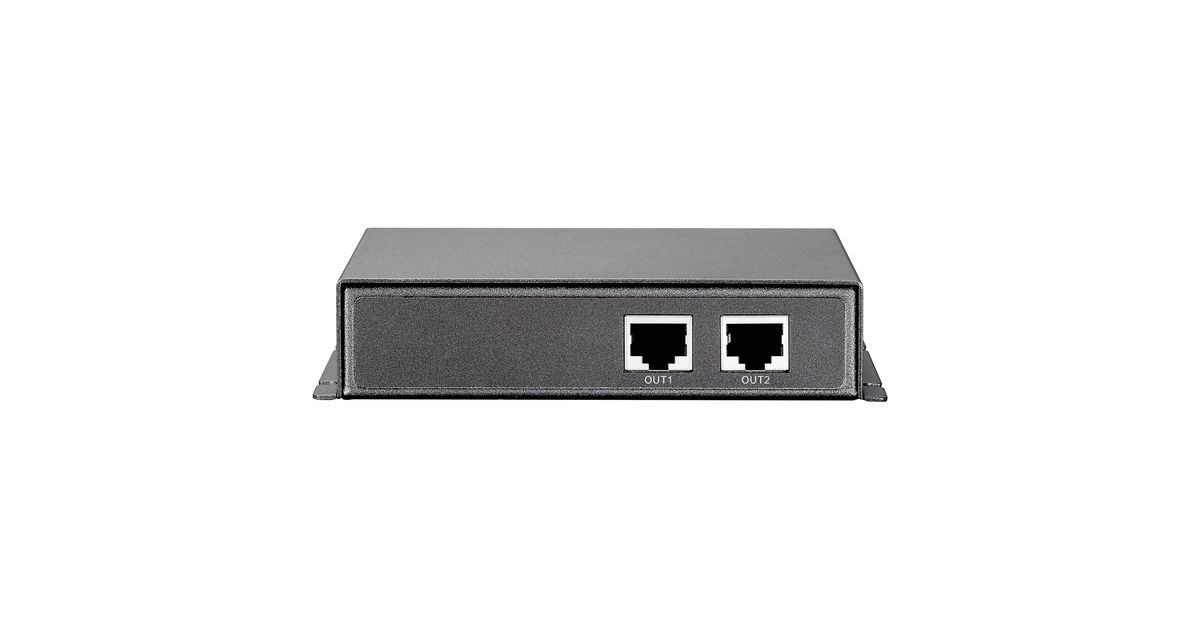

As a Gigabit PoE-Plus Repeater, POR-0222 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-0222 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0222 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-0222 fits into any tight deployments.
Applications
POR-0222 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 PoE output ports for PoE devices
- 10/100/1000Mbps wire speed transmission and reception
- Forwards Power over Ethernet to remote device
- Extends Gigabit PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation, no additional power supply required
