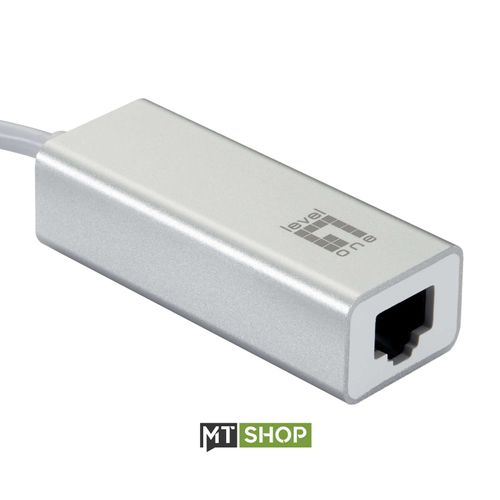

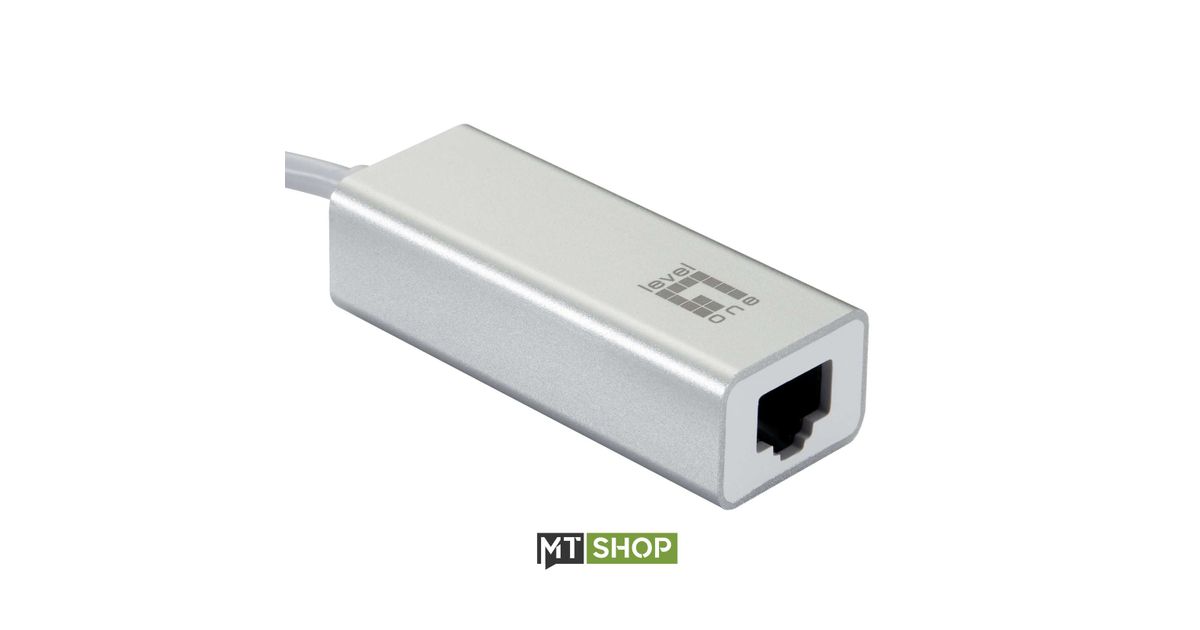

LevelOne Gigabit USB-C Network Adapter
LevelOne Gigabit USB-C Network Adapter, Wired, USB Type-C, Ethernet, 1000 Mbit/s, Silver, White
Read more...
Read more...
Product Information
Information | |
---|---|
Manufacturer | LevelOne |
Product code | 113527483 |
EAN | 04015867225882 |
Manufacturer part number | 54003107 |
Category | Network adapters |
Keyboard | |
---|---|
Connectivity technology | Wired |
Ports & interfaces | |
---|---|
Host interface | USB Type-C |
Interface | Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
Features | |
---|---|
USB version | 3.2 Gen 2 (3.1 Gen 2) |
Maximum data transfer rate | 1000 Mbit/s |
Full duplex | Y |
Certification | CE |
Flow control support | Y |
Other features | |
---|---|
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
Network | |
---|---|
Ethernet LAN | Y |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000BaseT(X) |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Wake-on-LAN ready | Y |
Auto MDIX IEEE | Y |
Data transmission | |
---|---|
Jumbo frames support | Y |
Jumbo frames | 9000 |
Protocols | |
---|---|
Supported network protocols | IPv4/IPv6 |
Performance | |
---|---|
Internal | N |
Design | |
---|---|
Product colour | Silver, White |
Logistics data | |
---|---|
Country of origin | China |
Master (outer) case width | 39 cm |
Master (outer) case length | 28 cm |
Master (outer) case height | 54 cm |
Master (outer) case gross weight | 7.7 kg |
Products per master (outer) case | 120 pc(s) |
Power | |
---|---|
Input current | 3 A |
Output voltage | 5 V |
Power consumption (typical) | 2 W |
USB powered | Y |
Software | |
---|---|
Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
Operational conditions | |
---|---|
Operating temperature (T-T) | 10 - 40 °C |
Storage temperature (T-T) | 10 - 70 °C |
Operating relative humidity (H-H) | 0 - 85% |
Storage relative humidity (H-H) | 0 - 85% |
Sustainability | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Width | 28.5 mm |
Depth | 17.5 mm |
Height | 217 mm |
Weight | 26 g |
Package weight | 33 g |
Packaging data | |
---|---|
Package type | Box |
Package width | 90 mm |
Package depth | 26 mm |
Package height | 212 mm |
Quick installation guide | Y |
Product Description
The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed.
The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
