For illustrative purpose only

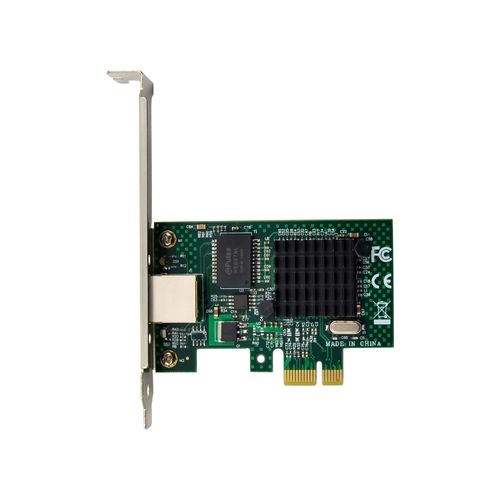

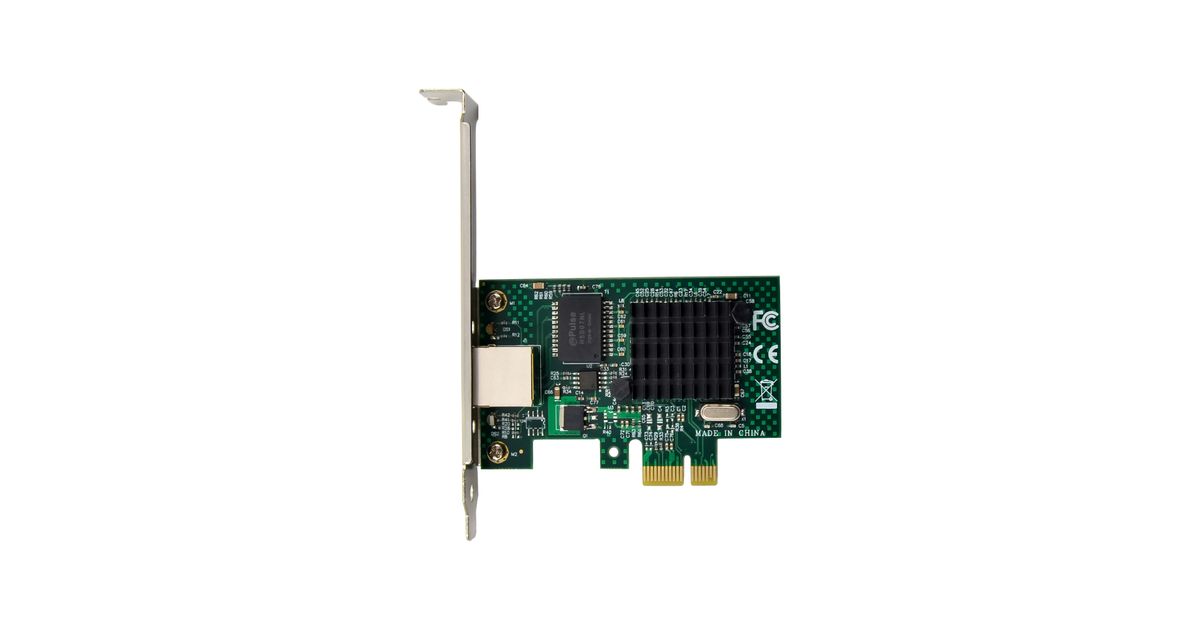

LevelOne GNC-0112 network card Internal Ethernet 1000 Mbit/s
LevelOne GNC-0112, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s, Black, Green, Silver
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 217439951 |
| EAN | 04015867228913 |
| Manufacturer part number | GNC-0112 |
| Category | Network adapters |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Certification | CE RoHS |
| Linux operating systems supported | Y |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.3, IEEE 802.3u |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Y |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | Broadcom BCM5751 |
| Design | |
|---|---|
| Component for | PC |
| Product colour | Black, Green, Silver |
| LED indicators | Activity, Link |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows XP |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 56 mm |
| Height | 20 mm |
| Weight | 45.6 g |
| Packaging data | |
|---|---|
| Mounting brackets included | Y |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Resource CD | Y |
Product Description
The LevelOne GNC-0112 Gigabit network card facilitates high-speed connectivity within network, with PCI Express (v1.1 compliant) supporting speeds of up to 2.5 Gbps. Wake-on-LAN functionality allows remote start-up. GNC-0112 Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow. IEEE 802.1Q VLAN allows network segmentation, further enhancing performance and security.
