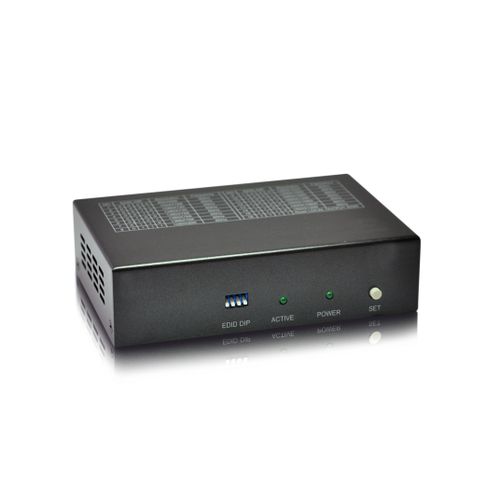

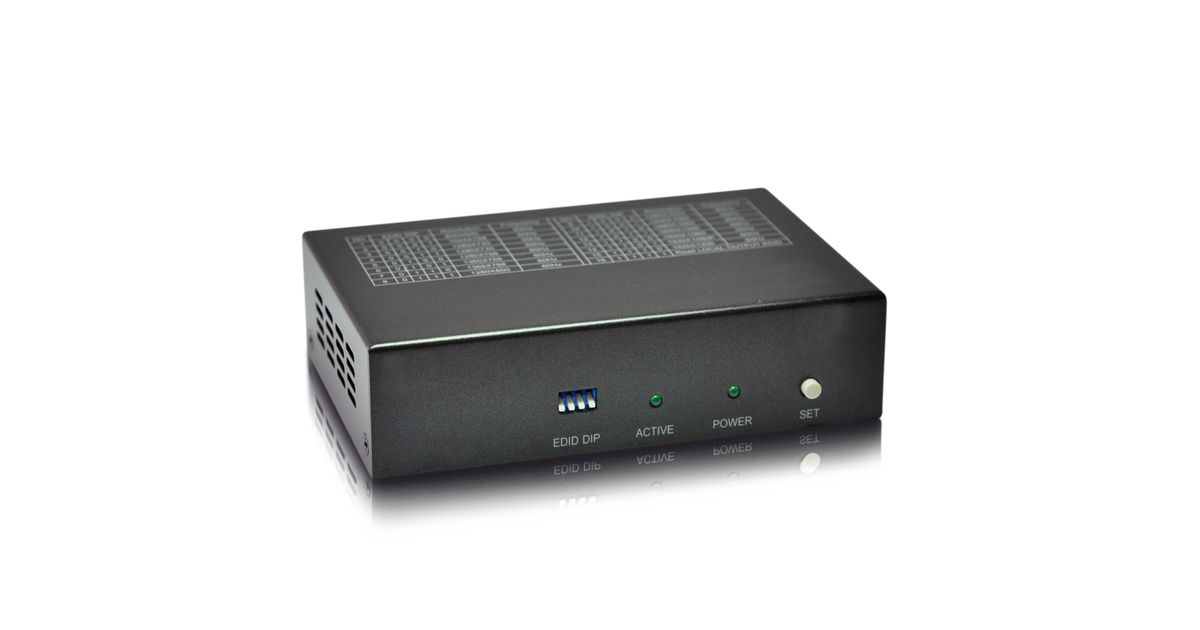

LevelOne HDMI over Cat.5 Transmitter, 300m
LevelOne HDMI over Cat.5 Transmitter, 300m, 1920 x 1200 pixels, AV transmitter, 300 m, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16507491 |
| EAN | 04015867192856 |
| Manufacturer part number | 59091303 |
| Category | Audio/video/HDMI switches and splitters |
| Features | |
|---|---|
| Type | AV transmitter |
| Supported video modes | 1080p |
| Bandwidth | 340 MHz |
| HDCP & EDID bypass | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 300 m |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Design | |
|---|---|
| LED indicators | Activity, Power |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Power | |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| Power consumption (transmitter) (max) | 700 mA |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 130 mm |
| Height | 35 mm |
| Weight | 365 g |
| Transmitter dimensions (WxDxH) | 130 x 97 x 35 mm |
| Transmitter weight | 358.9 g |
| Package weight | 620 g |
| Other features | |
|---|---|
| Package dimensions (WxDxH) | 170 x 295 x 120 mm |
| Quick start guide | Y |
| Packaging data | |
|---|---|
| Package width | 170 mm |
| Package depth | 295 mm |
| Package height | 120 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 630 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 1.4 kg |
| Products per master (outer) case | 10 pc(s) |
Product Description
The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.
The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.
The LevelOne HVE-9111T is a HDMI Transmitter with 1 HDMI local output port and 1 link port for connecting to 1 receiver.
- Transmission distance of up to 300m for 4k2k resolution
- HDMI outputs with EDID management
- Screw-in power socket for added safety
The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.
The LevelOne HVE-9111T is a HDMI Transmitter with 1 HDMI local output port and 1 link port for connecting to 1 receiver.
- Transmission distance of up to 300m for 4k2k resolution
- HDMI outputs with EDID management
- Screw-in power socket for added safety
