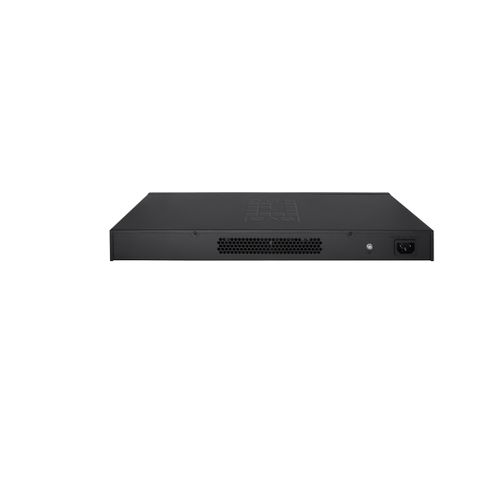

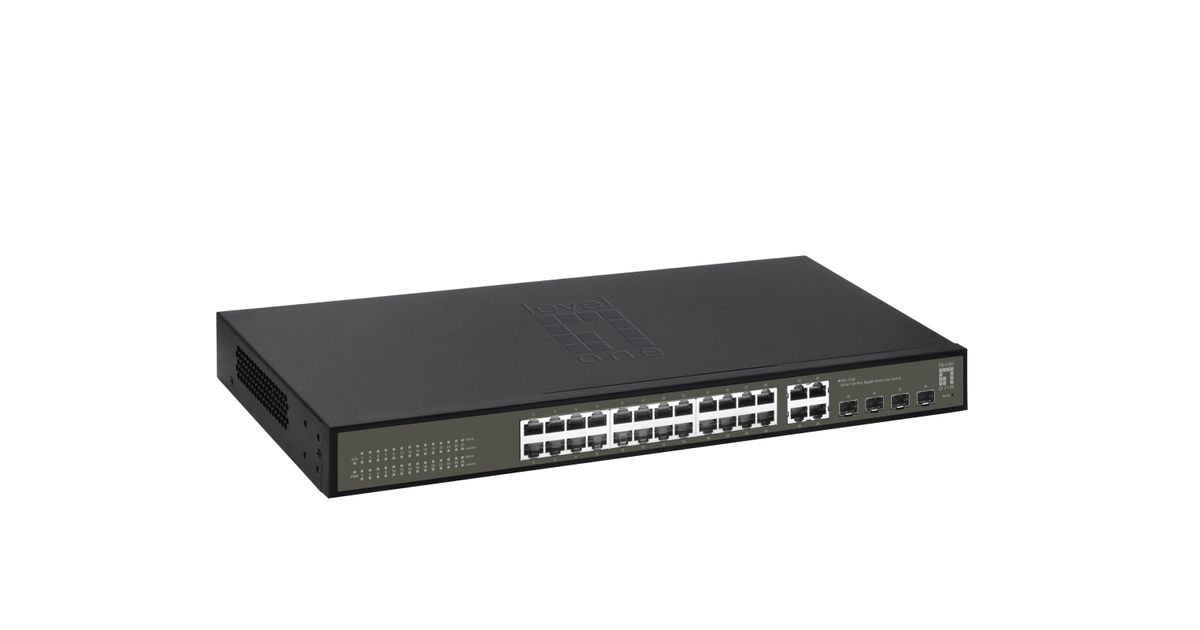

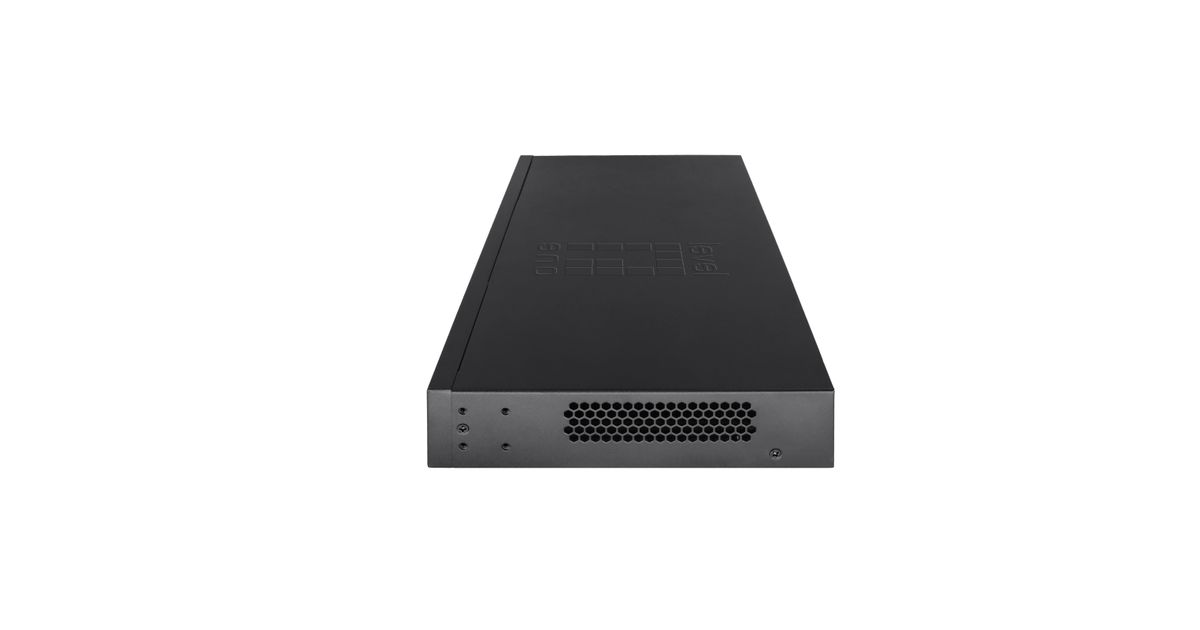

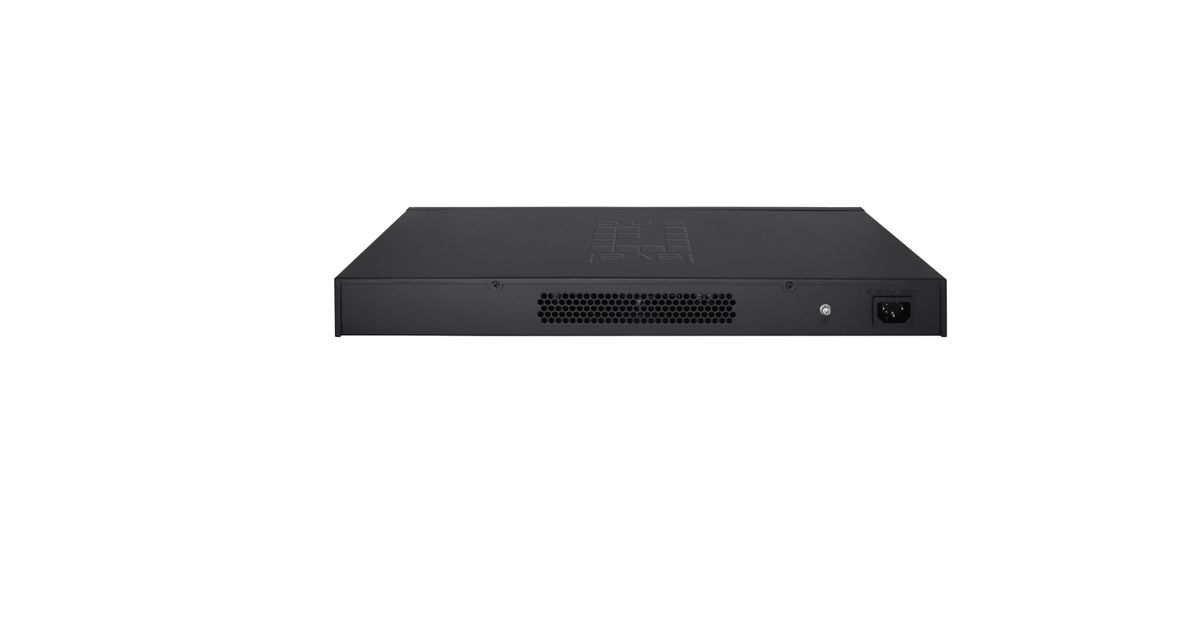

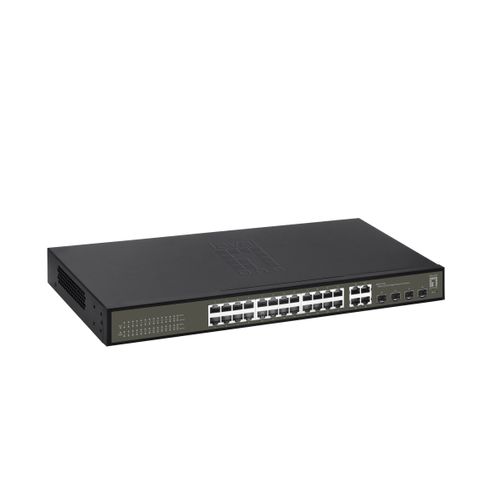

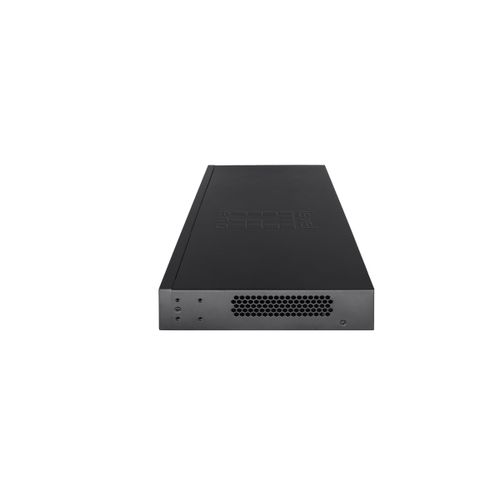

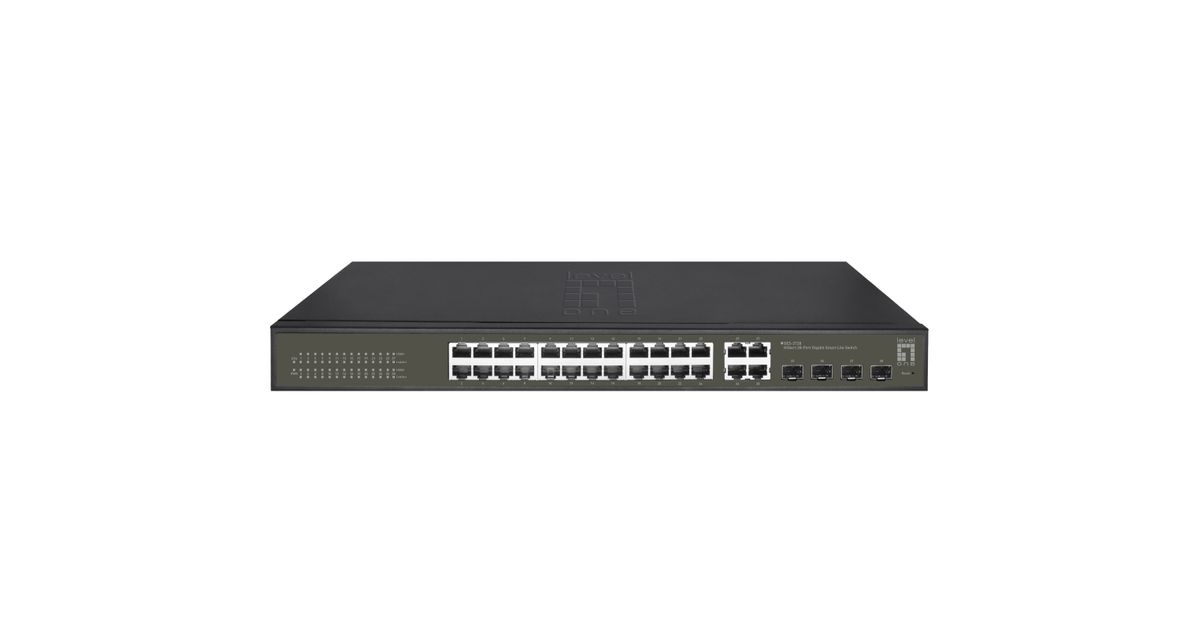

LevelOne Hilbert 28-Port Gigabit Smart Lite Switch, 24 x Gigabit RJ45, 4 x Gigabit SFP/RJ45 Combo
LevelOne Hilbert 28-Port Gigabit Smart Lite Switch, 24 x Gigabit RJ45, 4 x Gigabit SFP/RJ45 Combo, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 229216809 |
| EAN | 00846359058473 |
| Manufacturer part number | GES-2128 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 32 |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | UKCA, FCC Class A |
| Surge protection | Y |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
|---|---|
| IGMP snooping | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Activity, Link, Power, System |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) cases per pallet (air) | 20 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 159.4 cm |
| Master (outer) case net weight | 750 g |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 10.9 kg |
| Products per master (outer) case | 4 pc(s) |
| Performance | |
|---|---|
| Flash memory | 2 MB |
| Fanless | Y |
| Mean time between failures (MTBF) | 43800 h |
| Heat dissipation | 68.24 BTU/h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 20 W |
| Surge protection voltage | 8 kV |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 190 mm |
| Height | 44.5 mm |
| Weight | 1.95 kg |
| Package weight | 2.55 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 503 mm |
| Package depth | 270 mm |
| Package height | 85 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, RoHS |
Product Description
The LevelOne GES-2128 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2128 delivers 24 (10M/100M/1G) RJ45 ports and 4 Combo GbE RJ45/SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne GES-2128 provides high HW performance and environment flexibility for Enterprises. GES-2128 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
The LevelOne GES-2128 provides high HW performance and environment flexibility for Enterprises. GES-2128 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
