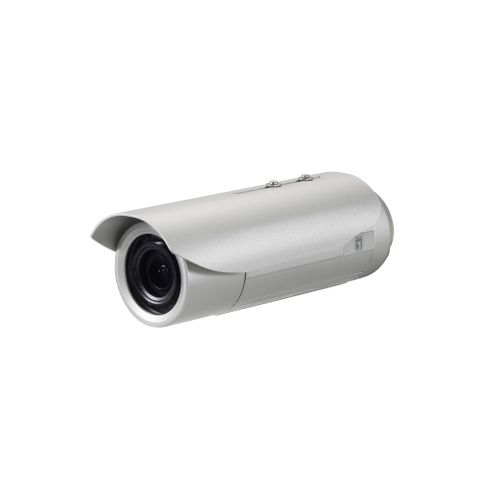

LevelOne HUBBLE Varifocal IP Network Camera, 5-Megapixel, 802.3af PoE, IR LEDs, Vandalproof, two-way audio, Indoor/Outdoor
LevelOne HUBBLE Varifocal IP Network Camera, 5-Megapixel, 802.3af PoE, IR LEDs, Vandalproof, two-way audio, Indoor/Outdoor, IP security camera, Outdoor, Wired, CE, FCC, ONVIF, IP68, IK10, NEMA 4X, Wall, Silver
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 217694388 |
| EAN | 04015867190166 |
| Manufacturer part number | FCS-5064 |
| Category | Kaamerad |
| Features | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Certification | CE, FCC, ONVIF, IP68, IK10, NEMA 4X |
| Protection features | Vandal proof |
| Weatherproof | Y |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944 |
| Supported video modes | 240p, 480p, 720p, 1080p |
| Harmonized System (HS) code | 85258900 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| PTZ control | Y |
| Wide Dynamic Range (WDR) | Y |
| Day/night mode | Y |
| Full HD | Y |
| Power source type | PoE |
| Mounting | |
|---|---|
| Mounting type | Wall |
| Design | |
|---|---|
| Product colour | Silver |
| Form factor | Bullet |
| LED indicators | Power |
| International Protection (IP) code | IP68 |
| IK code | IK10 |
| Reset button | Y |
| Camera | |
|---|---|
| Minimum illumination | 0.1 lx |
| Lens viewing angle, horizontal | 69.2° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/5 - 1/10000 s |
| Zoom capability | Y |
| Number of illumination LEDs | 15 |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Progressive scan | Y |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Focus | Manual |
| Focal length range | 2.8 - 12 mm |
| Focus adjustment | 1.4 |
| Night vision | |
|---|---|
| Night vision | Y |
| Night vision distance | 30 m |
| LED type | IR |
| Graphics | |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Video | |
|---|---|
| Total megapixels | 5 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| Automatic gain control | Y |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Back Light Compensation (BLC) | Y |
| Media formats | |
|---|---|
| Video formats supported | RAW |
| Video compression formats | H.264, M-JPEG |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Built-in microphone | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Protocols | |
|---|---|
| Supported network protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 64 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| Terminal block port | Y |
| Interface | RJ-45 |
| Power | |
|---|---|
| Power consumption (typical) | 5.76 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 77 mm |
| Depth | 193 mm |
| Height | 73 mm |
| Weight | 955 g |
| Package weight | 414 g |
| Packaging data | |
|---|---|
| Package width | 285 mm |
| Package depth | 202 mm |
| Package height | 100 mm |
| Package type | Box |
| Mounting brackets included | Y |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Y |
| Manual | Y |
| Other features | |
|---|---|
| Quick start guide | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 565 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 205 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 8 pc(s) |
| Other information | |
|---|---|
| Iris | Y |
| Back light compensation method | Y |
| Number of video streams | 2 |
Product Description
5MP, IP, 2592 x 1944px, 30 fps, 1~1/10000 sec, CMOS 1/3.2", RAW, Fast Ethernet, PoE 802.3af
