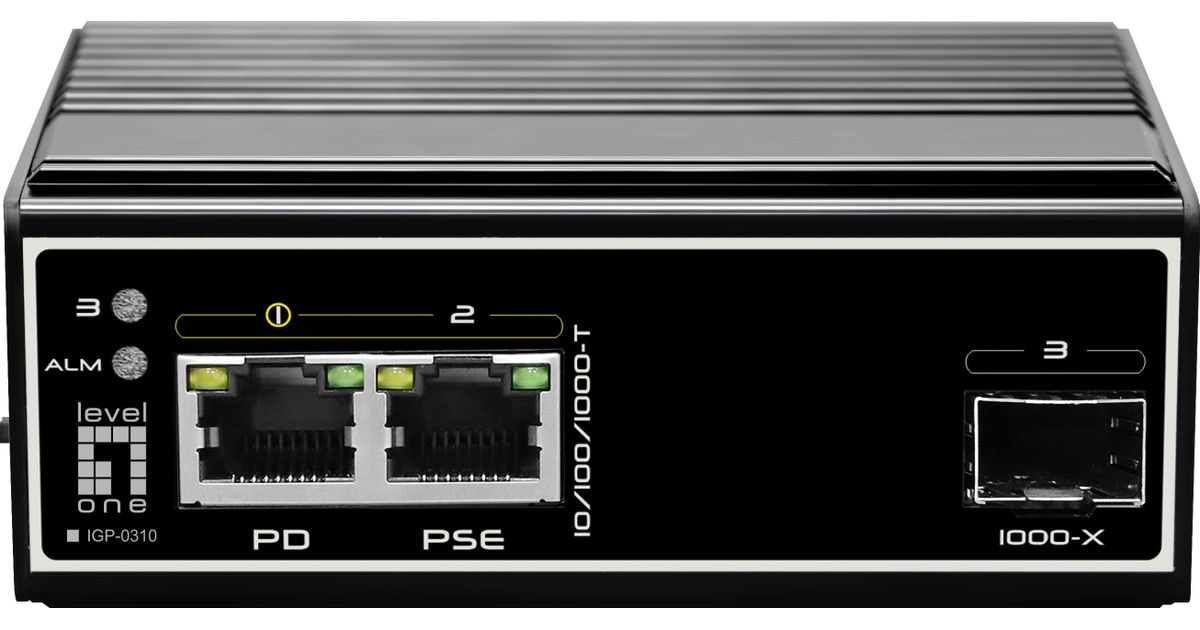

LevelOne IGP-0310 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
LevelOne IGP-0310, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 215225493 |
| EAN | 04015867226940 |
| Manufacturer part number | IGP-0310 |
| Category | Switches & accessories |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| SFP module slots quantity | 1 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Half duplex | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Wall mountable | Y |
| Certification | CE/FCC |
| Surge protection | Y |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link |
| International Protection (IP) code | IP30 |
| Logistics data | |
|---|---|
| Country of origin | China |
| Power supply | |
|---|---|
| Power supply included | N |
| Power | |
|---|---|
| DC input voltage | 12 - 56 V |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) power per port | 5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 65 mm |
| Depth | 35 mm |
| Height | 101 mm |
| Weight | 300 g |
| Package weight | 350 g |
| Packaging data | |
|---|---|
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
Product Description
LevelOne IGP-0310 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 1 port SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
