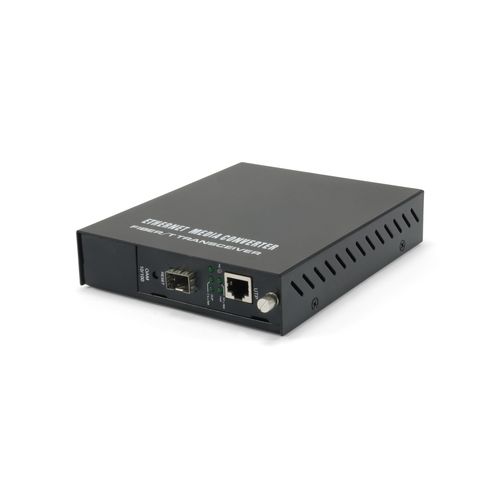

For illustrative purpose only
LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter
LevelOne RJ45 to SFP Managed Fast Ethernet Media Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s, 10BASE-T, 100BASE-TX, Full, Half
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LevelOne |
| Product code | 16488445 |
| EAN | 04015867195475 |
| Manufacturer part number | FVM-1000 |
| Features | |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Flow control support | Y |
| Certification | FCC, CE |
| Input voltage | 100 - 240 V |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| VLAN support | Y |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Performance | |
|---|---|
| Duplex system | Full, Half |
| Mean time between failures (MTBF) | 30000 h |
| Internal | N |
| Hot-swap | Y |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Design | |
|---|---|
| LED indicators | Activity, FDX, Link, Power |
| Product colour | Black |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 17.5 kg |
| Products per master (outer) case | 17 pc(s) |
| Power | |
|---|---|
| Output voltage | 5 V |
| Output current | 2 A |
| Management features | |
|---|---|
| Web-based management | Y |
| Weight & dimensions | |
|---|---|
| Width | 127 mm |
| Depth | 156 mm |
| Height | 32 mm |
| Weight | 700 g |
| Package weight | 860 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
|---|---|
| Package width | 185 mm |
| Package depth | 275 mm |
| Package height | 62 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Manual | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
FVM-1000 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options.
Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.
Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.
