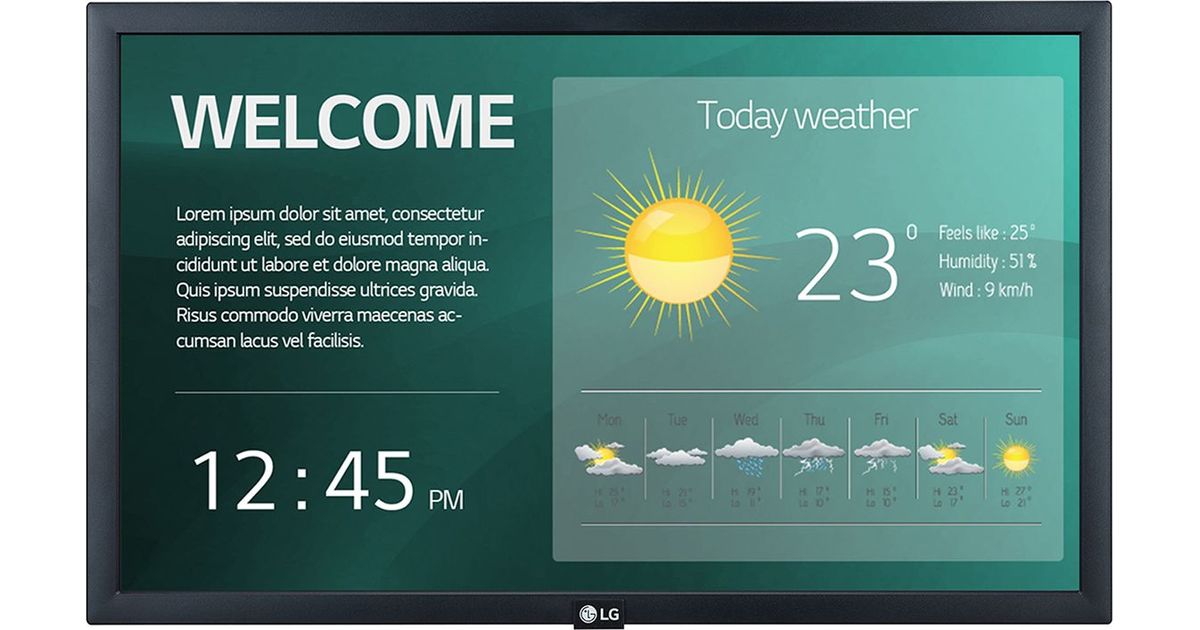

LG 22SM3G-B signage display Digital signage flat panel 54.6 cm (21.5") IPS Full HD Black Built-in processor
LG 22SM3G-B, 54.6 cm (21.5"), IPS, 1920 x 1080 pixels, 250 cd/m², Full HD, 16:9
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LG |
| Product code | 212362767 |
| EAN | 00719192636200 |
| Manufacturer part number | 22SM3G-B |
| Category | Digital signage / public displays |
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display technology | IPS |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | N |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 400000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 55.88 cm |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| DVI port | N |
| USB port | Y |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Features | |
|---|---|
| USB version | 2.0 |
| Product design | Digital signage flat panel |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Built-in processor | Y |
| Certification | CB, NRTL, EMC, FCC Class "A", CE, ErP |
| Inputs | |
|---|---|
| Audio (L/R) in | 1 |
| Other features | |
|---|---|
| RS-232 interface | Y |
| Remote control included | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Design | |
|---|---|
| Product colour | Black |
| Orientation | Horizontal |
| Mouse | |
|---|---|
| Purpose | Universal |
| Performance | |
|---|---|
| Operating hours (hours/days) | 16/7 |
| Heat dissipation | 7.89 BTU/h |
| Power | |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (standby) | 30 W |
| Power consumption (sleep) | 1 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Batteries included | Y |
| Computer system | |
|---|---|
| Computer system | N |
| Processor | |
|---|---|
| Processor cores | 4 |
| Memory | |
|---|---|
| Internal memory | 4 GB |
| Weight & dimensions | |
|---|---|
| Width | 510.3 mm |
| Depth | 53.8 mm |
| Height | 302.1 mm |
| Weight | 3.34 kg |
| Package weight | 3.5 kg |
| Packaging data | |
|---|---|
| Package width | 565 mm |
| Package depth | 103 mm |
| Package height | 357 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Mounting kit | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 85% |
Product Description
22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
