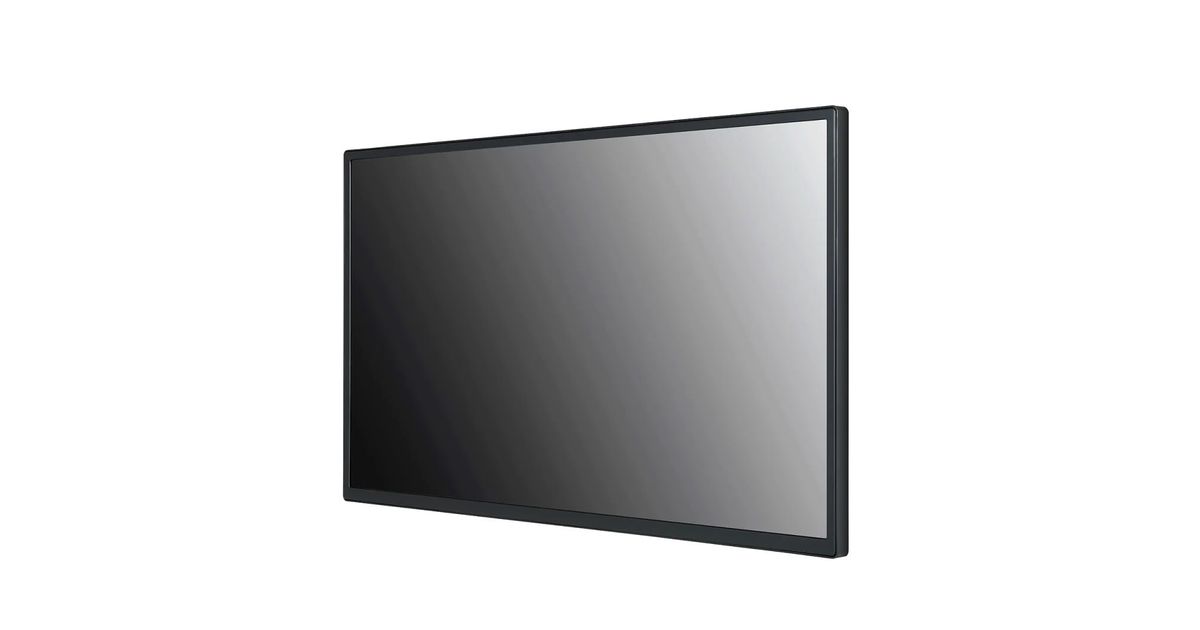

LG 32SM5J-B Digital signage flat panel 81.3 cm (32") Wi-Fi 400 cd/m² Full HD Black Web OS 24/7
LG 32SM5J-B, Digital signage flat panel, 81.3 cm (32"), 1920 x 1080 pixels, Wi-Fi, 24/7
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LG |
| Product code | 229169722 |
| Manufacturer part number | 32SM5J-B.AEU |
| Display | |
|---|---|
| Display diagonal | 81.3 cm (32") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Touchscreen | N |
| Panel type | IPS |
| Response time | 10 ms |
| Contrast ratio (typical) | 1100:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Haze rate | 1% |
| Screen shape | Flat |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| USB port | Y |
| HDMI version | 2.2 |
| HDMI input ports quantity | 3 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Y |
| Remote (IR) input | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Features | |
|---|---|
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| VESA mounting | Y |
| Panel mounting interface | 200 x 200 mm |
| HDCP | Y |
| HDCP version | 2.2 |
| Certification | CB / NRTL FCC Class "A" / CE |
| Harmonized System (HS) code | 85285210 |
| Outputs | |
|---|---|
| Audio (L/R) out | 1 |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| Multimedia | |
|---|---|
| RMS rated power | 20 W |
| Design | |
|---|---|
| Product colour | Black |
| Orientation | Horizontal/Vertical |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.8 cm |
| Bezel width (side) | 1.3 cm |
| Bezel width (top) | 1.3 cm |
| Display width | 729.4 mm |
| Display depth | 55.5 mm |
| Display height | 428.9 mm |
| Display weight | 5.7 kg |
| Width | 729.4 mm |
| Depth | 55.5 mm |
| Height | 428.9 mm |
| Weight | 5.7 kg |
| Width (with stand) | 729.4 mm |
| Depth (with stand) | 154.2 mm |
| Height (with stand) | 481 mm |
| Weight (with stand) | 6.5 kg |
| Mouse | |
|---|---|
| Purpose | Universal |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Heat dissipation | 187.67 BTU/h |
| Power | |
|---|---|
| Power consumption (typical) | 55 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
|---|---|
| Computer system | Y |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Software | |
|---|---|
| Operating system installed | Web OS |
| Other features | |
|---|---|
| Remote control included | Y |
| Packaging content | |
|---|---|
| Cables included | AC, HDMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Sustainability | |
|---|---|
| Sustainability certificates | China Organic Product Certification, ENERGY STAR |
Product Description
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
Compatible with AV Control System
The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more while recommending easy-to-use templates relevant to your industry.
